Schema BTLx_11.xsd


schema location:  http://www.design2machine.com/btlx/btlx_11.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://www.design2machine.com

Elements  Complex types  Simple types
BTLx  AlignmentType  AlignmentHorizontalType
ArcType  AlignmentVerticalType
BaseContourType  Angle2NType
BirdsMouthType  Angle2Type
CamberType  Angle3Type
ChamferType  AngleNType
ColourType  AngleType
ComponentType  ArcShapeType
CompositeElementChargeType  BooleanType
CompositeElementType  ChamferExitType
CompositeLayerType  ContourRecessType
CompositeModuleType  ContourType
CoordinateSystemType  DiameterType
CoordinateType  DovetailShapeType
DoubleCutType  EdgePositionType
DovetailMortiseType  EndType
DovetailTenonType  GUIDType
DovetailType  Inclination2Type

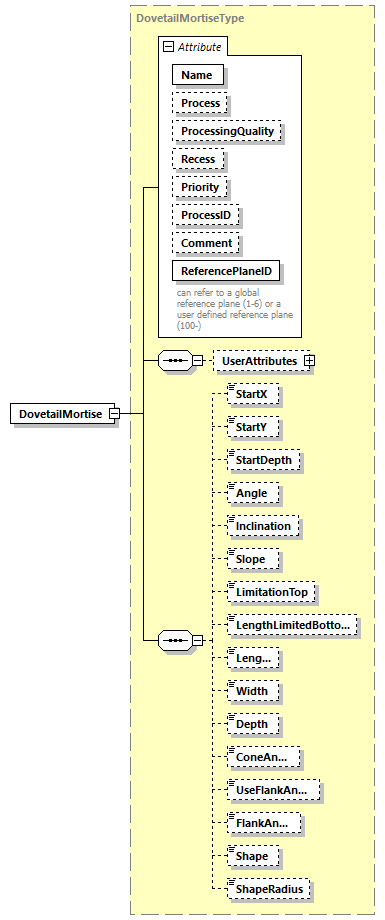

DrillingType  Inclination3Type
DualContourType  InclinationType
FreeContourType  LapExitType
FrenchRidgeLapType  LengthPosType
GlueAreaType  LengthSType
HipValleyRafterNotchType  LengthType
HouseMortiseType  LimitationTopType

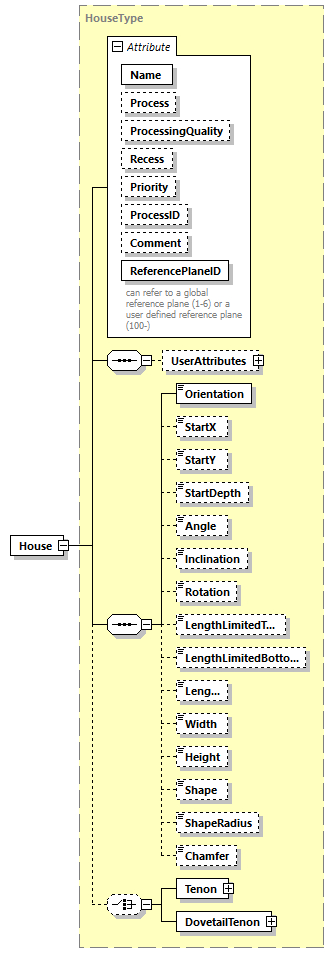

HouseType  LocationType
JackRafterCutType  LogLapPositionType
LapType  MarkingStyleType
LineType  MaterialGroupType
LockoutAreaType  OrientationType
LogHouseFrontType  PremillType
LogHouseHalfLapType  ProcessingQualityType
LogHouseJointType  ProcessSideType
LongitudinalCutType  RecessType
MachiningLimitType  RefSideType
MarkingType  ScarfShapeType
MaterialClassType  StepShapeType
MillContourType  StoreyType

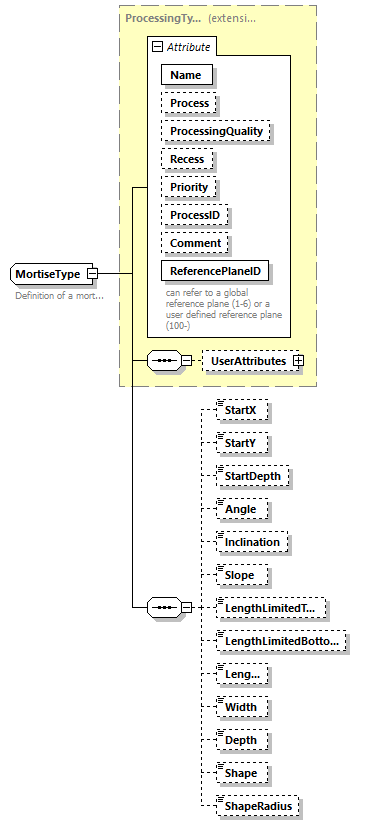

MortiseType  TenonShapeType
NailContourType  ToolPositionType
OutlineType  TyroleanDovetailShapeType
PartOffsetType  WidthNType
PartType  WidthType
PenContourType
PlaningAreaType
PlaningType
PlasterAreaType
PocketType
PointType
ProcessingBaseType
ProcessingGroupType
ProcessingsType
ProcessingType
ProfileArcType
ProfileCamberedType
ProfileFrontType
ProfileHeadType
ProgramInfoType
ProjectType
RawPartType
ReferenceType
RidgeValleyCutType
RoundArchType
SawContourType
SawCutType
ScarfJointType
ShapeType
SimpleContourType
SimpleScarfType

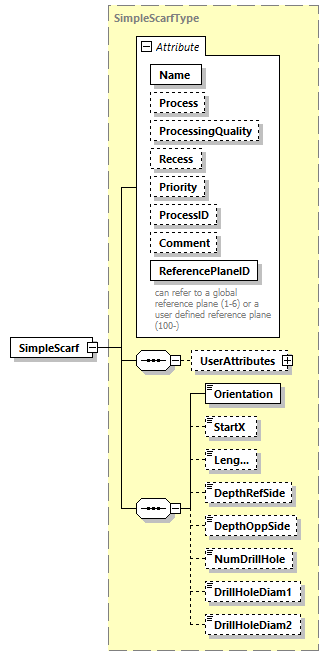

SlotType
SphereType
StepJointNotchType
StepJointType
TenonType
TextType
TriangleCutType
TyroleanDovetailType
UserAttributeType
UserReferencePlaneType
VariantParameterType
VariantType


schema location:  http://www.web3d.org/specifications/x3d-3.3.xsd
attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.design2machine.com

Elements  Groups  Complex types  Simple types  Attr. groups
Anchor  AppearanceChildContentModel  SceneGraphStructureStatement  accessTypeNames  DEF_USE
Appearance  AppearanceChildContentModelNoProtoInstance  WildcardNodeType  alignValues  globalAttributes
Arc2D  ChildContentModel  X3DAppearanceChildNode  appliedParametersValues
ArcClose2D  ChildContentModelCore  X3DAppearanceNode  ArcClose2dTypeValues
AudioClip  ChildContentModelDIS  X3DBackgroundNode  boundingBoxSizeType
Background  ChildContentModelFull  X3DBindableNode  componentNames
BallJoint  ChildContentModelGeoSpatial  X3DBoundedObject  featurePointNames
Billboard  ChildContentModelHumanoidAnimation  X3DChaserNode  fieldTypeName
BlendedVolumeStyle  ChildContentModelImmersive  X3DChildNode  fogTypeValues
BooleanFilter  ChildContentModelInteractive  X3DColorNode  fontFamilyValues
BooleanSequencer  ChildContentModelInterchange  X3DComposableVolumeRenderStyleNode  fontStyleValues
BooleanToggle  ChildContentModelNurbs  X3DComposedGeometryNode  forceOutputValues
BooleanTrigger  ChildContentModelProtoInstance  X3DCoordinateNode  geoMetadataKeyValues
BoundaryEnhancementVolumeStyle  ChildContentModelSceneGraphStructure  X3DDamperNode  geoSystemType
BoundedPhysicsModel  ColorCoordinateContentModel  X3DDragSensorNode  geoSystemValues
Box  ColorCoordinateNormalTexCoordContentModel  X3DEnvironmentalSensorNode  hanimHumanoidInfoKeyValues
CADAssembly  ColorNormalTexCoordContentModel  X3DEnvironmentTextureNode  hanimVersionValues
CADFace  ComposedGeometryContentModel  X3DField  initializeOnlyAccessTypes
CADLayer  GeometryContentModel  X3DFogObject  inputOnlyAccessTypes
CADPart  GeometryContentModel2D  X3DFollowerNode  inputOutputAccessTypes
CartoonVolumeStyle  GeometryContentModel2DImmersive  X3DFontStyleNode  intensityType
Circle2D  GeometryContentModelCAD  X3DGeometricPropertyNode  intersectionTypeValues
ClipPlane  GeometryContentModelGeoSpatial  X3DGeometryNode  jointNames
CollidableOffset  GeometryContentModelImmersive  X3DGroupingNode  justifyValues
CollidableShape  GeometryContentModelInteractive  X3DInfoNode  metadataContainerFieldValues
Collision  GeometryContentModelInterchange  X3DInterpolatorNode  metaDirectionValues
CollisionCollection  GeometryContentModelNurbs  X3DKeyDeviceSensorNode  metaNameValues
CollisionSensor  GroupingNodeChildContentModel  X3DLayerNode  MFBool
CollisionSpace  LayoutGroupContentModel  X3DLayoutNode  MFColor
Color  LoadSensorChildContentModel  X3DLightNode  MFColorRGBA
ColorChaser  PickSensorGroupingNodeContentModel  X3DMaterialNode  MFDouble
ColorDamper  RigidBodyCollectionContentModel  X3DMetadataObject  MFFloat
ColorInterpolator  RigidBodyContentModel  X3DNBodyCollidableNode  MFImage
ColorRGBA  RigidJointNodeContentModel  X3DNBodyCollisionSpaceNode  MFInt32
component  SceneGraphFragmentContentModel  X3DNetworkSensorNode  MFMatrix3d
ComposedCubeMapTexture  SceneGraphFragmentWithPrototypeDeclarationsContentModel  X3DNode  MFMatrix3f
ComposedShader  ShapeChildContentModel  X3DNodeMixedContent  MFMatrix4d

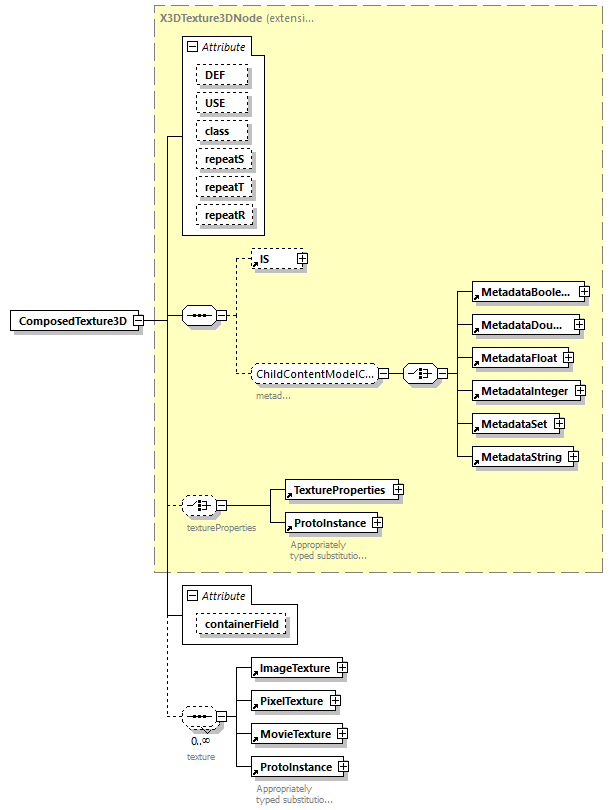

ComposedTexture3D  SoundChildContentModel  X3DNormalNode  MFMatrix4f
ComposedVolumeStyle  TextChildContentModel  X3DNurbsControlCurveNode  MFNode
Cone  Texture2DContentModel  X3DNurbsSurfaceGeometryNode  MFRotation
ConeEmitter  Texture3DContentModel  X3DParametricGeometryNode  MFString
connect  TextureBackgroundChildContentModel  X3DParticleEmitterNode  MFTime
Contact  TextureContentModel  X3DParticlePhysicsModelNode  MFVec2d
Contour2D  VolumeRenderStyleContentModel  X3DPickableObject  MFVec2f
ContourPolyline2D  X3DPickSensorNode  MFVec3d
Coordinate  X3DPointingDeviceSensorNode  MFVec3f
CoordinateChaser  X3DProductStructureChildNode  MFVec4d
CoordinateDamper  X3DProgrammableShaderObject  MFVec4f
CoordinateDouble  X3DPrototypeInstance  multiTextureFunctionValues
CoordinateInterpolator  X3DRigidJointNode  multiTextureModeValues
CoordinateInterpolator2D  X3DScriptNode  multiTextureSourceValues
Cylinder  X3DSensorNode  networkModeValues
CylinderSensor  X3DSequencerNode  offsetUnitsValues
DirectionalLight  X3DShaderNode  outputOnlyAccessTypes
DISEntityManager  X3DShapeNode  particleSystemGeometryTypeValues
DISEntityTypeMapping  X3DSoundNode  phaseFunctionValues
Disk2D  X3DSoundSourceNode  pickableObjectTypeValues
DoubleAxisHingeJoint  X3DTexture2DNode  profileNames
EaseInEaseOut  X3DTexture3DNode  scaleModeValues
EdgeEnhancementVolumeStyle  X3DTextureCoordinateNode  segmentNames
ElevationGrid  X3DTextureNode  SFBool
EspduTransform  X3DTextureTransformNode  SFColor
ExplosionEmitter  X3DTimeDependentNode  SFColorRGBA
EXPORT  X3DTouchSensorNode  SFDouble
ExternProtoDeclare  X3DTriggerNode  SFFloat
Extrusion  X3DUrlObject  SFImage
field  X3DVertexAttributeNode  SFInt32
fieldValue  X3DViewpointNode  SFMatrix3d
FillProperties  X3DViewportNode  SFMatrix3f
FloatVertexAttribute  X3DVolumeDataNode  SFMatrix4d
Fog  X3DVolumeRenderStyleNode  SFMatrix4f
FogCoordinate  SFNode
FontStyle  SFRotation
ForcePhysicsModel  SFString
GeneratedCubeMapTexture  SFTime
GeoCoordinate  SFVec2d
GeoElevationGrid  SFVec2f
GeoLocation  SFVec3d
GeoLOD  SFVec3f
GeoMetadata  SFVec4d
GeoOrigin  SFVec4f
GeoPositionInterpolator  shaderLanguageValues
GeoProximitySensor  shaderPartTypeValues
GeoTouchSensor  siteNames
GeoTransform  sizeUnitsValues
GeoViewpoint  textureBoundaryModeValues
Group  textureCompressionModeValues
HAnimDisplacer  textureCoordinateGeneratorModeValues
HAnimHumanoid  textureMagnificationModeValues
HAnimJoint  textureMinificationModeValues
HAnimSegment  transitionTypeValues
HAnimSite  typeValues
head  unitCategories
ImageCubeMapTexture  volumeRenderingWeightFunctionTypes
ImageTexture  x3dVersion
ImageTexture3D
IMPORT
IndexedFaceSet
IndexedLineSet
IndexedQuadSet
IndexedTriangleFanSet
IndexedTriangleSet
IndexedTriangleStripSet
Inline
IntegerSequencer
IntegerTrigger
IS
IsoSurfaceVolumeData
KeySensor
Layer
LayerSet
Layout
LayoutGroup
LayoutLayer
LinePickSensor
LineProperties
LineSet
LoadSensor
LocalFog
LOD
Material
Matrix3VertexAttribute
Matrix4VertexAttribute
meta
MetadataBoolean
MetadataDouble
MetadataFloat
MetadataInteger
MetadataSet
MetadataString
MotorJoint
MovieTexture
MultiTexture
MultiTextureCoordinate
MultiTextureTransform
NavigationInfo
Normal
NormalInterpolator
NurbsCurve
NurbsCurve2D
NurbsOrientationInterpolator
NurbsPatchSurface
NurbsPositionInterpolator
NurbsSet
NurbsSurfaceInterpolator
NurbsSweptSurface
NurbsSwungSurface
NurbsTextureCoordinate
NurbsTrimmedSurface
OpacityMapVolumeStyle
OrientationChaser
OrientationDamper
OrientationInterpolator
OrthoViewpoint
PackagedShader
ParticleSystem
PickableGroup
PixelTexture
PixelTexture3D
PlaneSensor
PointEmitter
PointLight
PointPickSensor
PointSet
Polyline2D
PolylineEmitter
Polypoint2D
PositionChaser
PositionChaser2D
PositionDamper
PositionDamper2D
PositionInterpolator
PositionInterpolator2D
PrimitivePickSensor
ProgramShader
ProjectionVolumeStyle
ProtoBody
ProtoDeclare
ProtoInstance
ProtoInterface
ProximitySensor
QuadSet
ReceiverPdu
Rectangle2D
RigidBody
RigidBodyCollection
ROUTE
ScalarChaser
ScalarDamper
ScalarInterpolator
Scene
ScreenFontStyle
ScreenGroup
Script
SegmentedVolumeData
ShadedVolumeStyle
ShaderPart
ShaderProgram
Shape
SignalPdu
SilhouetteEnhancementVolumeStyle
SingleAxisHingeJoint
SliderJoint
Sound
Sphere
SphereSensor
SplinePositionInterpolator
SplinePositionInterpolator2D
SplineScalarInterpolator
SpotLight
SquadOrientationInterpolator
StaticGroup
StringSensor
SurfaceEmitter
Switch
TexCoordChaser2D
TexCoordDamper2D
Text
TextureBackground
TextureCoordinate
TextureCoordinate3D
TextureCoordinate4D
TextureCoordinateGenerator
TextureProperties
TextureTransform
TextureTransform3D
TextureTransformMatrix3D
TimeSensor
TimeTrigger
ToneMappedVolumeStyle
TouchSensor
Transform
TransformSensor
TransmitterPdu
TriangleFanSet
TriangleSet
TriangleSet2D
TriangleStripSet
TwoSidedMaterial
unit
UniversalJoint
Viewpoint
ViewpointGroup
Viewport
VisibilitySensor
VolumeData
VolumeEmitter
VolumePickSensor
WindPhysicsModel
WorldInfo
X3D


schema location:  http://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPublic.xsd
attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.design2machine.com

Elements  Simple types
XvlShell  XvlShell.shellTypes


schema location:  http://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPrivate.xsd
attribute form default:  unqualified
element form default:  qualified
targetNamespace:  http://www.design2machine.com

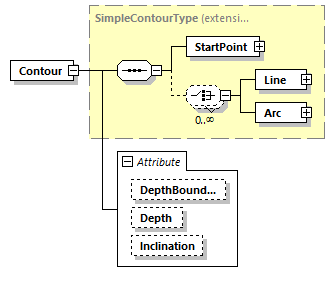

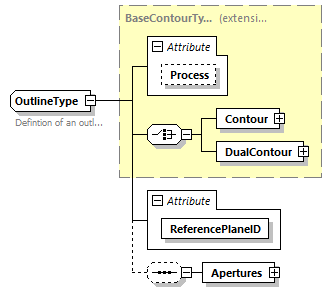

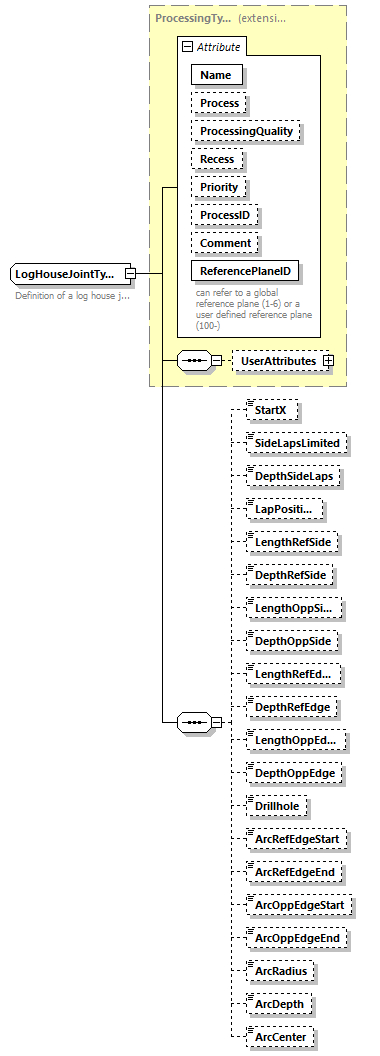

element BTLx

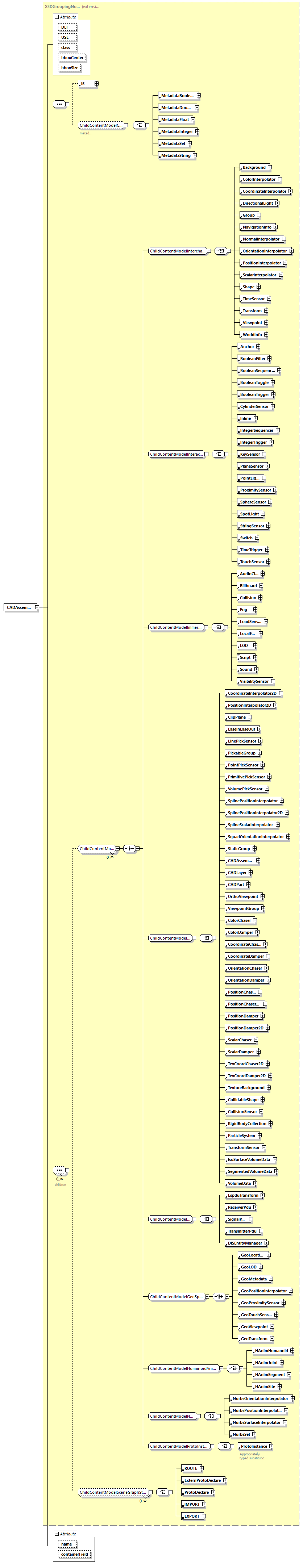

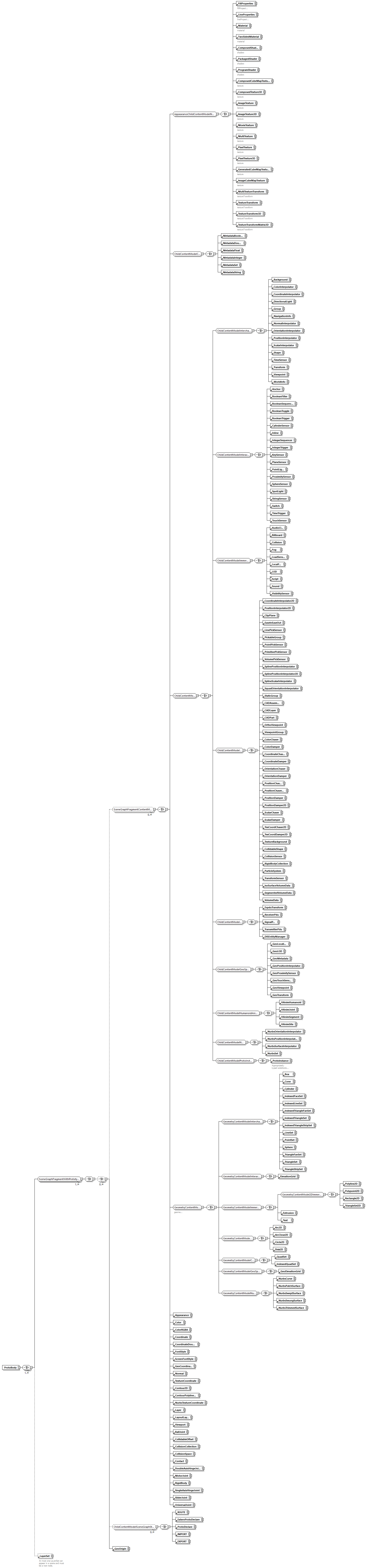

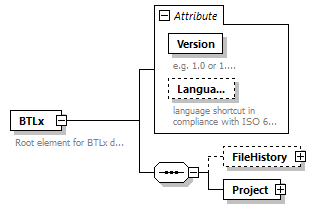

diagram BTLx_11_p1.png
namespace http://www.design2machine.com
properties
content complex
children FileHistory Project
attributes
Name  Type  Use  Default  Fixed  annotation
Versionderived by: xs:stringrequired
documentation
e.g. 1.0 or 1.0.2
Languagexs:string
documentation
language shortcut in compliance with ISO 639-1
annotation
documentation
Root element for BTLx data
source <xs:element name="BTLx">

<xs:annotation>

<xs:documentation>Root element for BTLx data</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="FileHistory" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

<xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Project" type="ProjectType"/>

</xs:sequence>

<xs:attribute name="Version" use="required">

<xs:annotation>

<xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="1.1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Language" type="xs:string">

<xs:annotation>

<xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>

</xs:annotation>

</xs:attribute>

</xs:complexType>
</xs:element>

attribute BTLx/@Version
type restriction of xs:string
properties
isRef 0
use required
facets
enumeration 1.1
annotation
documentation
e.g. 1.0 or 1.0.2
source <xs:attribute name="Version" use="required">

<xs:annotation>

<xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="1.1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BTLx/@Language
type xs:string
properties
isRef 0
annotation
documentation
language shortcut in compliance with ISO 639-1
source <xs:attribute name="Language" type="xs:string">

<xs:annotation>

<xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>

</xs:annotation>
</xs:attribute>

element BTLx/FileHistory
diagram BTLx_11_p2.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children InitialExportProgram EditingProgram
source <xs:element name="FileHistory" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

<xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element BTLx/FileHistory/InitialExportProgram

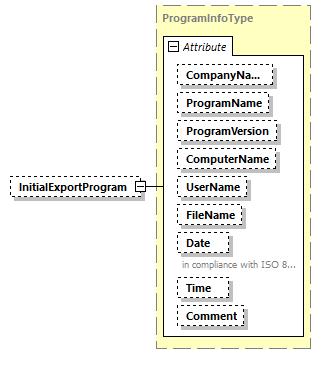

diagram BTLx_11_p3.png
namespace http://www.design2machine.com
type ProgramInfoType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
CompanyNamexs:string
ProgramNamexs:string
ProgramVersionxs:string
ComputerNamexs:string
UserNamexs:string
FileNamexs:string
Datexs:date
documentation
in compliance with ISO 8601
Timexs:time
Commentxs:string
source <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

element BTLx/FileHistory/EditingProgram

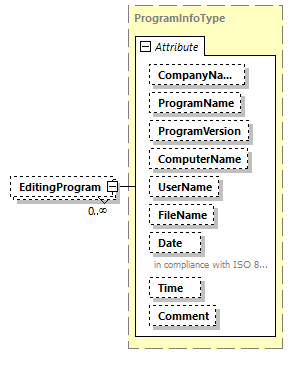

diagram BTLx_11_p4.png
namespace http://www.design2machine.com
type ProgramInfoType
properties
isRef 0
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
CompanyNamexs:string
ProgramNamexs:string
ProgramVersionxs:string
ComputerNamexs:string
UserNamexs:string
FileNamexs:string
Datexs:date
documentation
in compliance with ISO 8601
Timexs:time
Commentxs:string
source <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

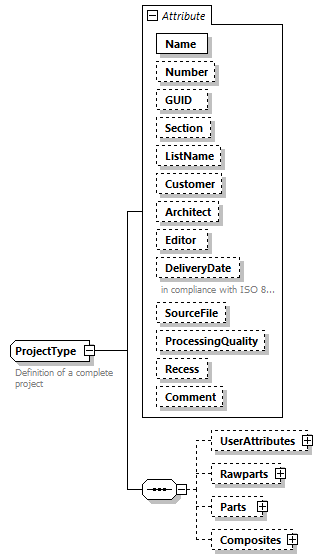

element BTLx/Project

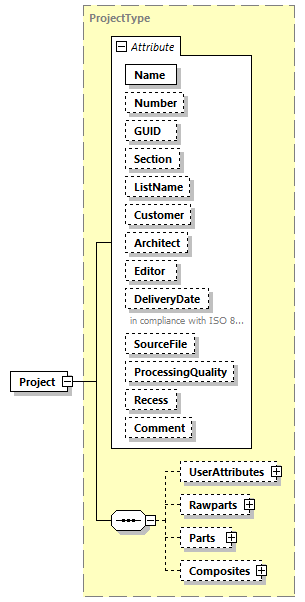

diagram BTLx_11_p5.png
namespace http://www.design2machine.com
type ProjectType
properties
isRef 0
content complex
children UserAttributes Rawparts Parts Composites
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
Numberxs:string
GUIDGUIDType
Sectionxs:string
ListNamexs:string
Customerxs:string
Architectxs:string
Editorxs:string
DeliveryDatexs:date
documentation
in compliance with ISO 8601
SourceFilexs:string
ProcessingQualityProcessingQualityType  automatic
RecessRecessType  automatic
Commentxs:string
source <xs:element name="Project" type="ProjectType"/>

complexType AlignmentType
diagram BTLx_11_p6.png
namespace http://www.design2machine.com
used by
element PartType/Alignment
attributes
Name  Type  Use  Default  Fixed  annotation
LocationLocationTyperequired
EndtypeEndTyperequired
annotation
documentation
Definition of an alignment in a wall
source <xs:complexType name="AlignmentType">

<xs:annotation>

<xs:documentation>Definition of an alignment in a wall</xs:documentation>

</xs:annotation>

<xs:attribute name="Location" type="LocationType" use="required"/>

<xs:attribute name="Endtype" type="EndType" use="required"/>
</xs:complexType>

attribute AlignmentType/@Location
type LocationType
properties
isRef 0
use required
facets
enumeration bottomRail
enumeration topRail
enumeration bottomRailAngled
enumeration topRailAngled
enumeration horizontalComponent
enumeration verticalComponent
enumeration angledComponent
source <xs:attribute name="Location" type="LocationType" use="required"/>

attribute AlignmentType/@Endtype
type EndType
properties
isRef 0
use required
facets
enumeration rectangularCut
enumeration angledCut
enumeration doubleCut
source <xs:attribute name="Endtype" type="EndType" use="required"/>

complexType ArcType

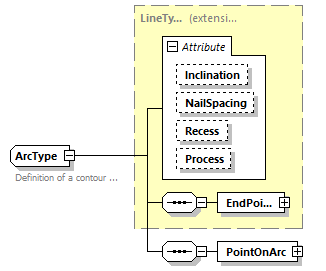

diagram BTLx_11_p7.png
namespace http://www.design2machine.com
type extension of LineType
properties
base LineType
children EndPoint PointOnArc
used by
element SimpleContourType/Arc
attributes
Name  Type  Use  Default  Fixed  annotation
InclinationInclinationType
NailSpacingxs:double
RecessContourRecessType
ProcessBooleanType
annotation
documentation
Definition of a contour arc
source <xs:complexType name="ArcType">

<xs:annotation>

<xs:documentation>Definition of a contour arc</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="LineType">

<xs:sequence>

<xs:element name="PointOnArc" type="CoordinateType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element ArcType/PointOnArc
diagram BTLx_11_p8.png
namespace http://www.design2machine.com
type CoordinateType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
source <xs:element name="PointOnArc" type="CoordinateType"/>

complexType BaseContourType

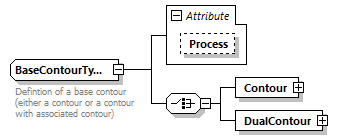

diagram BTLx_11_p9.png
namespace http://www.design2machine.com
children Contour DualContour
used by

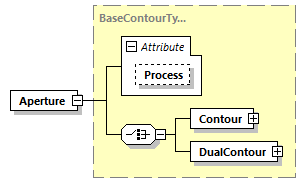

element OutlineType/Apertures/Aperture
complexType OutlineType
attributes
Name  Type  Use  Default  Fixed  annotation
ProcessBooleanType  no
annotation
documentation
Defintion of a base contour (either a contour or a contour with associated contour)
source <xs:complexType name="BaseContourType">

<xs:annotation>

<xs:documentation>Defintion of a base contour (either a contour or a contour with associated contour)</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="Contour" type="SimpleContourType"/>

<xs:element name="DualContour" type="DualContourType"/>

</xs:choice>

<xs:attribute name="Process" type="BooleanType" default="no"/>
</xs:complexType>

attribute BaseContourType/@Process
type BooleanType
properties
isRef 0
default no
facets
enumeration yes
enumeration no
source <xs:attribute name="Process" type="BooleanType" default="no"/>

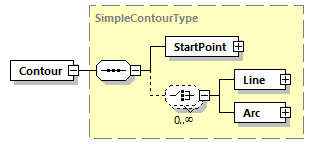

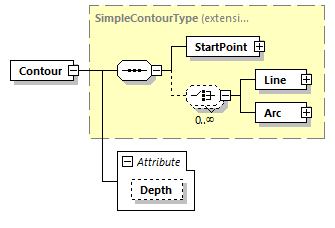

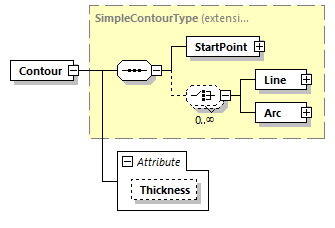

element BaseContourType/Contour
diagram BTLx_11_p10.png
namespace http://www.design2machine.com
type SimpleContourType
properties
isRef 0
content complex
children StartPoint Line Arc
source <xs:element name="Contour" type="SimpleContourType"/>

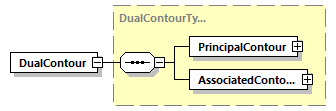

element BaseContourType/DualContour
diagram BTLx_11_p11.png
namespace http://www.design2machine.com
type DualContourType
properties
isRef 0
content complex
children PrincipalContour AssociatedContour
source <xs:element name="DualContour" type="DualContourType"/>

complexType BirdsMouthType

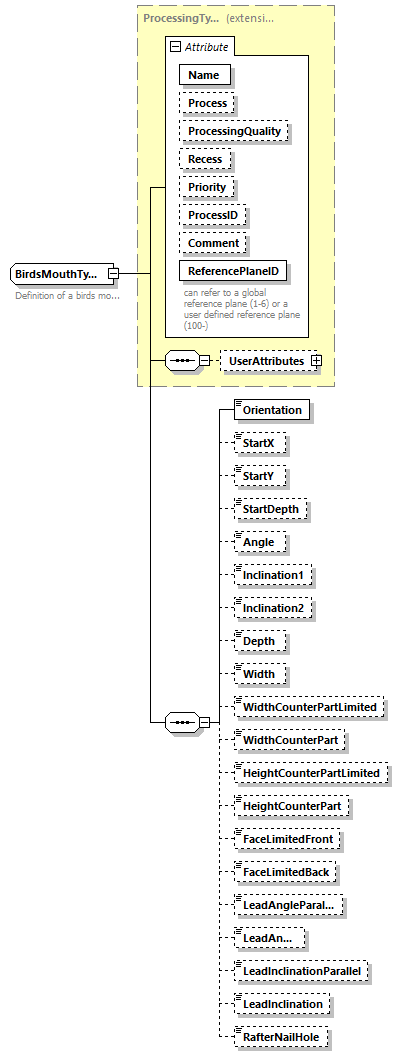

diagram BTLx_11_p12.png
namespace http://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Orientation StartX StartY StartDepth Angle Inclination1 Inclination2 Depth Width WidthCounterPartLimited WidthCounterPart HeightCounterPartLimited HeightCounterPart FaceLimitedFront FaceLimitedBack LeadAngleParallel LeadAngle LeadInclinationParallel LeadInclination RafterNailHole
used by
element ProcessingsType/BirdsMouth
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
ProcessBooleanType  yes
ProcessingQualityProcessingQualityType
RecessRecessType
Priorityxs:int  0
ProcessIDxs:unsignedInt
Commentxs:string
ReferencePlaneIDderived by: xs:unsignedIntrequired
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Definition of a birds mouth
source <xs:complexType name="BirdsMouthType">

<xs:annotation>

<xs:documentation>Definition of a birds mouth</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingType">

<xs:sequence>

<xs:element name="Orientation" type="OrientationType"/>

<xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

<xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

<xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

<xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

<xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

<xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

<xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

<xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

<xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

<xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element BirdsMouthType/Orientation
diagram BTLx_11_p13.png
namespace http://www.design2machine.com
type OrientationType
properties
isRef 0
content simple
facets
enumeration start
enumeration end
source <xs:element name="Orientation" type="OrientationType"/>

element BirdsMouthType/StartX
diagram BTLx_11_p14.png
namespace http://www.design2machine.com
type LengthPosType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartY
diagram BTLx_11_p15.png
namespace http://www.design2machine.com
type WidthNType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive -50000.0
maxInclusive 50000.0
source <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartDepth
diagram BTLx_11_p16.png
namespace http://www.design2machine.com
type WidthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 20.0
facets
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Angle
diagram BTLx_11_p17.png
namespace http://www.design2machine.com
type AngleType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 90.0
facets
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/Inclination1
diagram BTLx_11_p18.png
namespace http://www.design2machine.com
type Angle2Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 45.0
facets
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

element BirdsMouthType/Inclination2
diagram BTLx_11_p19.png
namespace http://www.design2machine.com
type Angle2Type
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 135.0
facets
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

element BirdsMouthType/Depth
diagram BTLx_11_p20.png
namespace http://www.design2machine.com
type WidthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 20.0
facets
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Width
diagram BTLx_11_p21.png
namespace http://www.design2machine.com
type WidthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

element BirdsMouthType/WidthCounterPartLimited
diagram BTLx_11_p22.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/WidthCounterPart
diagram BTLx_11_p23.png
namespace http://www.design2machine.com
type WidthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 120.0
facets
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/HeightCounterPartLimited
diagram BTLx_11_p24.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/HeightCounterPart
diagram BTLx_11_p25.png
namespace http://www.design2machine.com
type WidthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 120.0
facets
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/FaceLimitedFront
diagram BTLx_11_p26.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/FaceLimitedBack
diagram BTLx_11_p27.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/LeadAngleParallel
diagram BTLx_11_p28.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadAngle
diagram BTLx_11_p29.png
namespace http://www.design2machine.com
type AngleType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 90.0
facets
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/LeadInclinationParallel
diagram BTLx_11_p30.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadInclination
diagram BTLx_11_p31.png
namespace http://www.design2machine.com
type AngleType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 90.0
facets
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/RafterNailHole
diagram BTLx_11_p32.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

complexType CamberType
diagram BTLx_11_p33.png
namespace http://www.design2machine.com
used by
elements PartType/Camber RawPartType/Camber
attributes
Name  Type  Use  Default  Fixed  annotation
ReferencePlaneIDderived by: xs:unsignedIntrequired
StartingPointxs:doublerequired
EndPointxs:doublerequired
CamberPointxs:doublerequired
Camberxs:doublerequired
annotation
documentation
Defintion of a camber
source <xs:complexType name="CamberType">

<xs:annotation>

<xs:documentation>Defintion of a camber</xs:documentation>

</xs:annotation>

<xs:attribute name="ReferencePlaneID" use="required">

<xs:simpleType>

<xs:restriction base="xs:unsignedInt">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="StartingPoint" type="xs:double" use="required"/>

<xs:attribute name="EndPoint" type="xs:double" use="required"/>

<xs:attribute name="CamberPoint" type="xs:double" use="required"/>

<xs:attribute name="Camber" type="xs:double" use="required"/>
</xs:complexType>

attribute CamberType/@ReferencePlaneID
type restriction of xs:unsignedInt
properties
isRef 0
use required
facets
minInclusive 1
source <xs:attribute name="ReferencePlaneID" use="required">

<xs:simpleType>

<xs:restriction base="xs:unsignedInt">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CamberType/@StartingPoint
type xs:double
properties
isRef 0
use required
source <xs:attribute name="StartingPoint" type="xs:double" use="required"/>

attribute CamberType/@EndPoint
type xs:double
properties
isRef 0
use required
source <xs:attribute name="EndPoint" type="xs:double" use="required"/>

attribute CamberType/@CamberPoint
type xs:double
properties
isRef 0
use required
source <xs:attribute name="CamberPoint" type="xs:double" use="required"/>

attribute CamberType/@Camber
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Camber" type="xs:double" use="required"/>

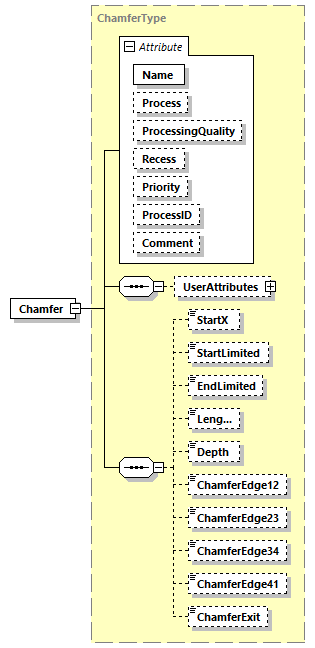

complexType ChamferType

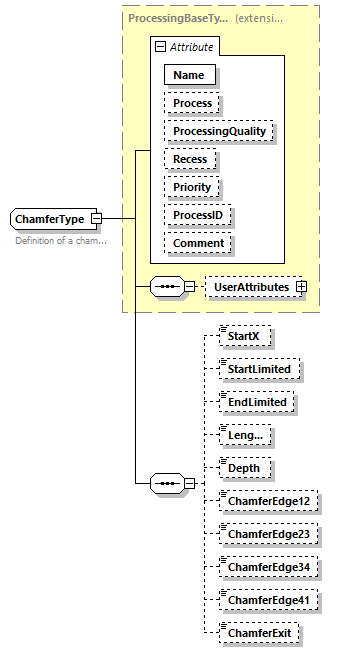

diagram BTLx_11_p34.png
namespace http://www.design2machine.com
type extension of ProcessingBaseType
properties
base ProcessingBaseType
children UserAttributes StartX StartLimited EndLimited Length Depth ChamferEdge12 ChamferEdge23 ChamferEdge34 ChamferEdge41 ChamferExit
used by
element ProcessingsType/Chamfer
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
ProcessBooleanType  yes
ProcessingQualityProcessingQualityType
RecessRecessType
Priorityxs:int  0
ProcessIDxs:unsignedInt
Commentxs:string
annotation
documentation
Definition of a chamfer
source <xs:complexType name="ChamferType">

<xs:annotation>

<xs:documentation>Definition of a chamfer</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingBaseType">

<xs:sequence>

<xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

<xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

<xs:element name="Depth" default="1.0" minOccurs="0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

<xs:maxInclusive value="100.0"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

<xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element ChamferType/StartX
diagram BTLx_11_p35.png
namespace http://www.design2machine.com
type LengthPosType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element ChamferType/StartLimited
diagram BTLx_11_p36.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/EndLimited
diagram BTLx_11_p37.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default no
facets
enumeration yes
enumeration no
source <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/Length
diagram BTLx_11_p38.png
namespace http://www.design2machine.com
type LengthType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive 0.0
maxInclusive 100000.0
source <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

element ChamferType/Depth
diagram BTLx_11_p39.png
namespace http://www.design2machine.com
type restriction of xs:double
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 1.0
facets
minInclusive 0.0
maxInclusive 100.0
source <xs:element name="Depth" default="1.0" minOccurs="0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

<xs:maxInclusive value="100.0"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element ChamferType/ChamferEdge12
diagram BTLx_11_p40.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge23
diagram BTLx_11_p41.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge34
diagram BTLx_11_p42.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge41
diagram BTLx_11_p43.png
namespace http://www.design2machine.com
type BooleanType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default yes
facets
enumeration yes
enumeration no
source <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferExit
diagram BTLx_11_p44.png
namespace http://www.design2machine.com
type ChamferExitType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default orthogonal
facets
enumeration orthogonal
enumeration angular
enumeration round
source <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

complexType ColourType
diagram BTLx_11_p45.png
namespace http://www.design2machine.com
used by
element ComponentType/Colour
attributes
Name  Type  Use  Default  Fixed  annotation
Redxs:unsignedByterequired
Greenxs:unsignedByterequired
Bluexs:unsignedByterequired
Transparencyxs:unsignedByterequired
annotation
documentation
Definition of a colour (red, green, blue, transparency)
source <xs:complexType name="ColourType">

<xs:annotation>

<xs:documentation>Definition of a colour (red, green, blue, transparency)</xs:documentation>

</xs:annotation>

<xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>
</xs:complexType>

attribute ColourType/@Red
type xs:unsignedByte
properties
isRef 0
use required
source <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Green
type xs:unsignedByte
properties
isRef 0
use required
source <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Blue
type xs:unsignedByte
properties
isRef 0
use required
source <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Transparency
type xs:unsignedByte
properties
isRef 0
use required
source <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>

complexType ComponentType

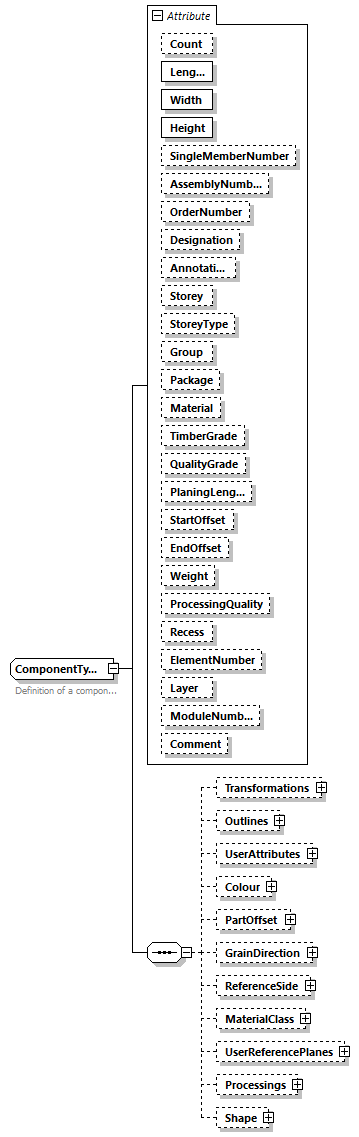

diagram BTLx_11_p46.png
namespace http://www.design2machine.com
properties
abstract true
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape
used by
complexTypes CompositeModuleType PartType RawPartType
attributes
Name  Type  Use  Default  Fixed  annotation
Countderived by: xs:int  1
Lengthxs:doublerequired
Widthxs:doublerequired
Heightxs:doublerequired
SingleMemberNumberxs:unsignedInt
AssemblyNumberxs:string
OrderNumberxs:unsignedInt
Designationxs:string
Annotationxs:string
Storeyxs:string
StoreyTypeStoreyType
Groupxs:string
Packagexs:string
Materialxs:string
TimberGradexs:string
QualityGradexs:string
PlaningLengthxs:doubleoptional
StartOffsetxs:doubleoptional
EndOffsetxs:doubleoptional
Weightxs:double
ProcessingQualityProcessingQualityType
RecessRecessType
ElementNumberxs:string
Layerxs:int
ModuleNumberxs:string
Commentxs:string
annotation
documentation
Definition of a component
source <xs:complexType name="ComponentType" abstract="true">

<xs:annotation>

<xs:documentation>Definition of a component</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="Transformations" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

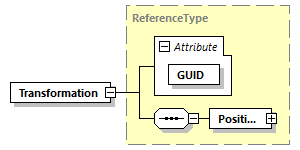

<xs:element name="Transformation" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Outlines" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="3">

<xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="UserAttributes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserAttribute" type="UserAttributeType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Colour" type="ColourType" minOccurs="0"/>

<xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

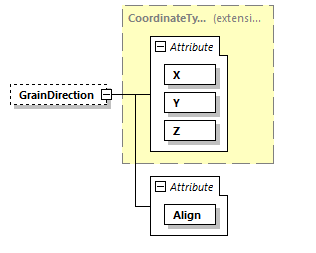

<xs:element name="GrainDirection" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="CoordinateType">

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

<xs:element name="ReferenceSide" minOccurs="0">

<xs:complexType>

<xs:attribute name="Side" type="RefSideType" use="required"/>

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

<xs:element name="UserReferencePlanes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Processings" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="ProcessingsType">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

<xs:element name="Shape" type="ShapeType" minOccurs="0"/>

</xs:sequence>

<xs:attribute name="Count" default="1">

<xs:simpleType>

<xs:restriction base="xs:int">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Length" type="xs:double" use="required"/>

<xs:attribute name="Width" type="xs:double" use="required"/>

<xs:attribute name="Height" type="xs:double" use="required"/>

<xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

<xs:attribute name="AssemblyNumber" type="xs:string"/>

<xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

<xs:attribute name="Designation" type="xs:string"/>

<xs:attribute name="Annotation" type="xs:string"/>

<xs:attribute name="Storey" type="xs:string"/>

<xs:attribute name="StoreyType" type="StoreyType"/>

<xs:attribute name="Group" type="xs:string"/>

<xs:attribute name="Package" type="xs:string"/>

<xs:attribute name="Material" type="xs:string"/>

<xs:attribute name="TimberGrade" type="xs:string"/>

<xs:attribute name="QualityGrade" type="xs:string"/>

<xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

<xs:attribute name="StartOffset" type="xs:double" use="optional"/>

<xs:attribute name="EndOffset" type="xs:double" use="optional"/>

<xs:attribute name="Weight" type="xs:double"/>

<xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

<xs:attribute name="Recess" type="RecessType"/>

<xs:attribute name="ElementNumber" type="xs:string"/>

<xs:attribute name="Layer" type="xs:int"/>

<xs:attribute name="ModuleNumber" type="xs:string"/>

<xs:attribute name="Comment" type="xs:string"/>
</xs:complexType>

attribute ComponentType/@Count
type restriction of xs:int
properties
isRef 0
default 1
facets
minInclusive 1
source <xs:attribute name="Count" default="1">

<xs:simpleType>

<xs:restriction base="xs:int">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ComponentType/@Length
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Length" type="xs:double" use="required"/>

attribute ComponentType/@Width
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Width" type="xs:double" use="required"/>

attribute ComponentType/@Height
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Height" type="xs:double" use="required"/>

attribute ComponentType/@SingleMemberNumber
type xs:unsignedInt
properties
isRef 0
source <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

attribute ComponentType/@AssemblyNumber
type xs:string
properties
isRef 0
source <xs:attribute name="AssemblyNumber" type="xs:string"/>

attribute ComponentType/@OrderNumber
type xs:unsignedInt
properties
isRef 0
source <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

attribute ComponentType/@Designation
type xs:string
properties
isRef 0
source <xs:attribute name="Designation" type="xs:string"/>

attribute ComponentType/@Annotation
type xs:string
properties
isRef 0
source <xs:attribute name="Annotation" type="xs:string"/>

attribute ComponentType/@Storey
type xs:string
properties
isRef 0
source <xs:attribute name="Storey" type="xs:string"/>

attribute ComponentType/@StoreyType
type StoreyType
properties
isRef 0
facets
enumeration
enumeration ceiling
enumeration roof
enumeration wall
source <xs:attribute name="StoreyType" type="StoreyType"/>

attribute ComponentType/@Group
type xs:string
properties
isRef 0
source <xs:attribute name="Group" type="xs:string"/>

attribute ComponentType/@Package
type xs:string
properties
isRef 0
source <xs:attribute name="Package" type="xs:string"/>

attribute ComponentType/@Material
type xs:string
properties
isRef 0
source <xs:attribute name="Material" type="xs:string"/>

attribute ComponentType/@TimberGrade
type xs:string
properties
isRef 0
source <xs:attribute name="TimberGrade" type="xs:string"/>

attribute ComponentType/@QualityGrade
type xs:string
properties
isRef 0
source <xs:attribute name="QualityGrade" type="xs:string"/>

attribute ComponentType/@PlaningLength
type xs:double
properties
isRef 0
use optional
source <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

attribute ComponentType/@StartOffset
type xs:double
properties
isRef 0
use optional
source <xs:attribute name="StartOffset" type="xs:double" use="optional"/>

attribute ComponentType/@EndOffset
type xs:double
properties
isRef 0
use optional
source <xs:attribute name="EndOffset" type="xs:double" use="optional"/>

attribute ComponentType/@Weight
type xs:double
properties
isRef 0
source <xs:attribute name="Weight" type="xs:double"/>

attribute ComponentType/@ProcessingQuality
type ProcessingQualityType
properties
isRef 0
facets
enumeration automatic
enumeration visible
enumeration fast
source <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

attribute ComponentType/@Recess
type RecessType
properties
isRef 0
facets
enumeration automatic
enumeration manual
source <xs:attribute name="Recess" type="RecessType"/>

attribute ComponentType/@ElementNumber
type xs:string
properties
isRef 0
source <xs:attribute name="ElementNumber" type="xs:string"/>

attribute ComponentType/@Layer
type xs:int
properties
isRef 0
source <xs:attribute name="Layer" type="xs:int"/>

attribute ComponentType/@ModuleNumber
type xs:string
properties
isRef 0
source <xs:attribute name="ModuleNumber" type="xs:string"/>

attribute ComponentType/@Comment
type xs:string
properties
isRef 0
source <xs:attribute name="Comment" type="xs:string"/>

element ComponentType/Transformations
diagram BTLx_11_p47.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Transformation
source <xs:element name="Transformations" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="Transformation" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/Transformations/Transformation
diagram BTLx_11_p48.png
namespace http://www.design2machine.com
type ReferenceType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
GUIDGUIDTyperequired
source <xs:element name="Transformation" type="ReferenceType"/>

element ComponentType/Outlines
diagram BTLx_11_p49.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children Outline
source <xs:element name="Outlines" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="3">

<xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/Outlines/Outline
diagram BTLx_11_p50.png
namespace http://www.design2machine.com
type extension of OutlineType
properties
isRef 0
content complex
children Contour DualContour Apertures
attributes
Name  Type  Use  Default  Fixed  annotation
ProcessBooleanType  no
ReferencePlaneIDderived by: xs:unsignedIntrequired
source <xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>
</xs:element>

element ComponentType/UserAttributes
diagram BTLx_11_p51.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children UserAttribute
source <xs:element name="UserAttributes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserAttribute" type="UserAttributeType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/UserAttributes/UserAttribute
diagram BTLx_11_p52.png
namespace http://www.design2machine.com
type UserAttributeType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
Valuexs:stringrequired
source <xs:element name="UserAttribute" type="UserAttributeType"/>

element ComponentType/Colour
diagram BTLx_11_p53.png
namespace http://www.design2machine.com
type ColourType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Redxs:unsignedByterequired
Greenxs:unsignedByterequired
Bluexs:unsignedByterequired
Transparencyxs:unsignedByterequired
source <xs:element name="Colour" type="ColourType" minOccurs="0"/>

element ComponentType/PartOffset
diagram BTLx_11_p54.png
namespace http://www.design2machine.com
type PartOffsetType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
FlushSidederived by: xs:byterequired
OffsetSide1xs:double  0.0
OffsetSide2xs:double  0.0
OffsetSide3xs:double  0.0
OffsetSide4xs:double  0.0
source <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

element ComponentType/GrainDirection
diagram BTLx_11_p55.png
namespace http://www.design2machine.com
type extension of CoordinateType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
AlignBooleanTyperequired
source <xs:element name="GrainDirection" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="CoordinateType">

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ComponentType/GrainDirection/@Align
type BooleanType
properties
isRef 0
use required
facets
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/ReferenceSide
diagram BTLx_11_p56.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
SideRefSideTyperequired
AlignBooleanTyperequired
source <xs:element name="ReferenceSide" minOccurs="0">

<xs:complexType>

<xs:attribute name="Side" type="RefSideType" use="required"/>

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:complexType>
</xs:element>

attribute ComponentType/ReferenceSide/@Side
type RefSideType
properties
isRef 0
use required
facets
minInclusive 1
maxInclusive 4
source <xs:attribute name="Side" type="RefSideType" use="required"/>

attribute ComponentType/ReferenceSide/@Align
type BooleanType
properties
isRef 0
use required
facets
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/MaterialClass
diagram BTLx_11_p57.png
namespace http://www.design2machine.com
type MaterialClassType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
GroupMaterialGroupTyperequired
Specificationxs:string
source <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

element ComponentType/UserReferencePlanes
diagram BTLx_11_p58.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children UserReferencePlane
source <xs:element name="UserReferencePlanes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/UserReferencePlanes/UserReferencePlane

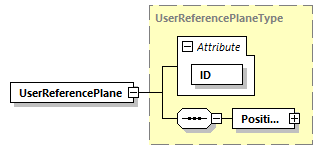

diagram BTLx_11_p59.png
namespace http://www.design2machine.com
type UserReferencePlaneType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
IDderived by: xs:unsignedIntrequired
source <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

element ComponentType/Processings

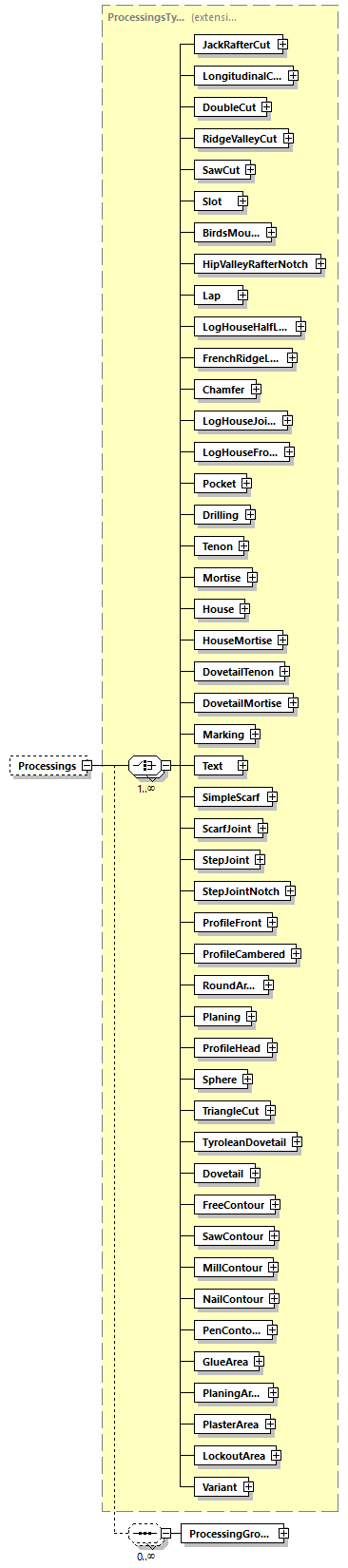

diagram BTLx_11_p60.png
namespace http://www.design2machine.com
type extension of ProcessingsType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children JackRafterCut LongitudinalCut DoubleCut RidgeValleyCut SawCut Slot BirdsMouth HipValleyRafterNotch Lap LogHouseHalfLap FrenchRidgeLap Chamfer LogHouseJoint LogHouseFront Pocket Drilling Tenon Mortise House HouseMortise DovetailTenon DovetailMortise Marking Text SimpleScarf ScarfJoint StepJoint StepJointNotch ProfileFront ProfileCambered RoundArch Planing ProfileHead Sphere TriangleCut TyroleanDovetail Dovetail FreeContour SawContour MillContour NailContour PenContour GlueArea PlaningArea PlasterArea LockoutArea Variant ProcessingGroup
source <xs:element name="Processings" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="ProcessingsType">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

element ComponentType/Processings/ProcessingGroup

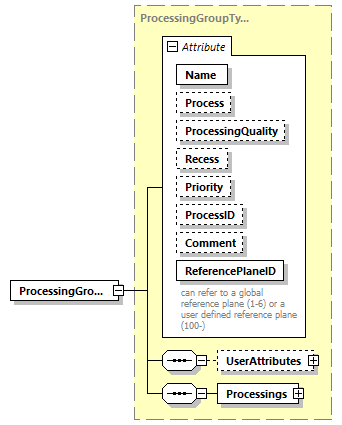

diagram BTLx_11_p61.png
namespace http://www.design2machine.com
type ProcessingGroupType
properties
isRef 0
content complex
children UserAttributes Processings
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
ProcessBooleanType  yes
ProcessingQualityProcessingQualityType
RecessRecessType
Priorityxs:int  0
ProcessIDxs:unsignedInt
Commentxs:string
ReferencePlaneIDderived by: xs:unsignedIntrequired
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
source <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

element ComponentType/Shape
diagram BTLx_11_p62.png
namespace http://www.design2machine.com
type ShapeType
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
elements CADFace CollidableShape LinePickSensor PointPickSensor PrimitivePickSensor TransformSensor VolumePickSensor
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  annotation
DEFxs:ID
appinfo

DEF defines a unique ID name for each node, referencable by other nodes.
USExs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
classxs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by XML stylesheets.
bboxCenterSFVec3f  0 0 0
bboxSizeboundingBoxSizeType  -1 -1 -1
source <xs:element name="Shape" type="ShapeType" minOccurs="0"/>

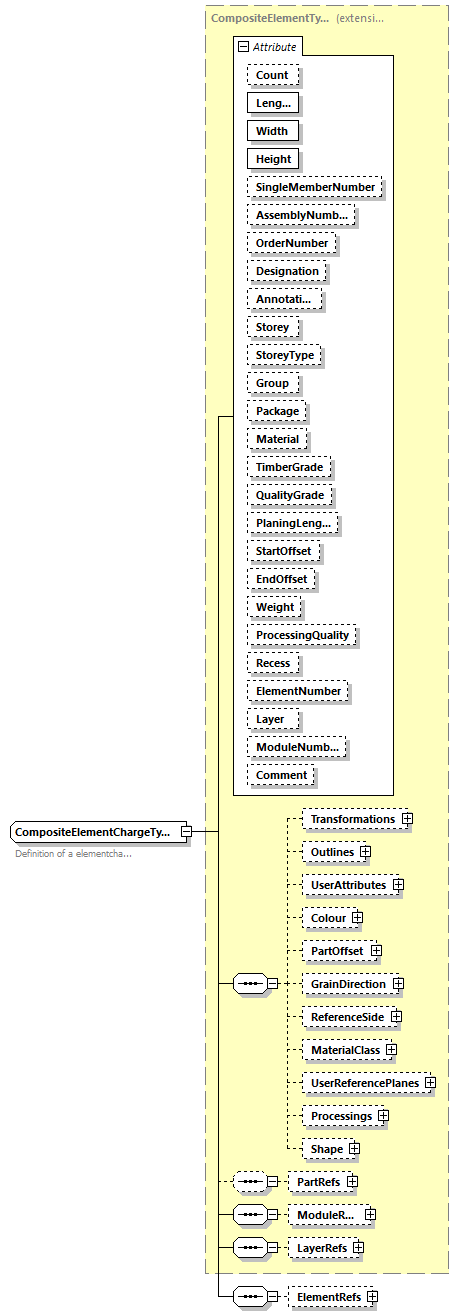

complexType CompositeElementChargeType
diagram BTLx_11_p63.png
namespace http://www.design2machine.com
type extension of CompositeElementType
properties
base CompositeElementType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape PartRefs ModuleRefs LayerRefs ElementRefs
used by
element ProjectType/Composites/ElementCharges/ElementCharge
attributes
Name  Type  Use  Default  Fixed  annotation
Countderived by: xs:int  1
Lengthxs:doublerequired
Widthxs:doublerequired
Heightxs:doublerequired
SingleMemberNumberxs:unsignedInt
AssemblyNumberxs:string
OrderNumberxs:unsignedInt
Designationxs:string
Annotationxs:string
Storeyxs:string
StoreyTypeStoreyType
Groupxs:string
Packagexs:string
Materialxs:string
TimberGradexs:string
QualityGradexs:string
PlaningLengthxs:doubleoptional
StartOffsetxs:doubleoptional
EndOffsetxs:doubleoptional
Weightxs:double
ProcessingQualityProcessingQualityType
RecessRecessType
ElementNumberxs:string
Layerxs:int
ModuleNumberxs:string
Commentxs:string
annotation
documentation
Definition of a elementcharge
source <xs:complexType name="CompositeElementChargeType">

<xs:annotation>

<xs:documentation>Definition of a elementcharge</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="CompositeElementType">

<xs:sequence>

<xs:element name="ElementRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="ElementRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element CompositeElementChargeType/ElementRefs
diagram BTLx_11_p64.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children ElementRef
source <xs:element name="ElementRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="ElementRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CompositeElementChargeType/ElementRefs/ElementRef
diagram BTLx_11_p65.png
namespace http://www.design2machine.com
type ReferenceType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
GUIDGUIDTyperequired
source <xs:element name="ElementRef" type="ReferenceType"/>

complexType CompositeElementType

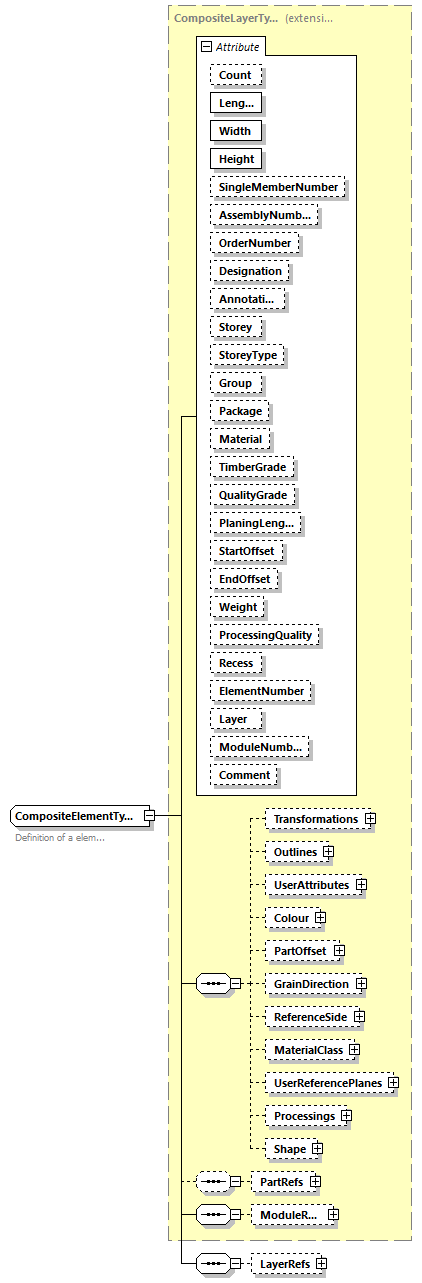

diagram BTLx_11_p66.png
namespace http://www.design2machine.com
type extension of CompositeLayerType
properties
base CompositeLayerType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape PartRefs ModuleRefs LayerRefs
used by
element ProjectType/Composites/Elements/Element
complexType CompositeElementChargeType
attributes
Name  Type  Use  Default  Fixed  annotation
Countderived by: xs:int  1
Lengthxs:doublerequired
Widthxs:doublerequired
Heightxs:doublerequired
SingleMemberNumberxs:unsignedInt
AssemblyNumberxs:string
OrderNumberxs:unsignedInt
Designationxs:string
Annotationxs:string
Storeyxs:string
StoreyTypeStoreyType
Groupxs:string
Packagexs:string
Materialxs:string
TimberGradexs:string
QualityGradexs:string
PlaningLengthxs:doubleoptional
StartOffsetxs:doubleoptional
EndOffsetxs:doubleoptional
Weightxs:double
ProcessingQualityProcessingQualityType
RecessRecessType
ElementNumberxs:string
Layerxs:int
ModuleNumberxs:string
Commentxs:string
annotation
documentation
Definition of a element
source <xs:complexType name="CompositeElementType">

<xs:annotation>

<xs:documentation>Definition of a element</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="CompositeLayerType">

<xs:sequence>

<xs:element name="LayerRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="LayerRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element CompositeElementType/LayerRefs
diagram BTLx_11_p67.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children LayerRef
source <xs:element name="LayerRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="LayerRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CompositeElementType/LayerRefs/LayerRef
diagram BTLx_11_p68.png
namespace http://www.design2machine.com
type ReferenceType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
GUIDGUIDTyperequired
source <xs:element name="LayerRef" type="ReferenceType"/>

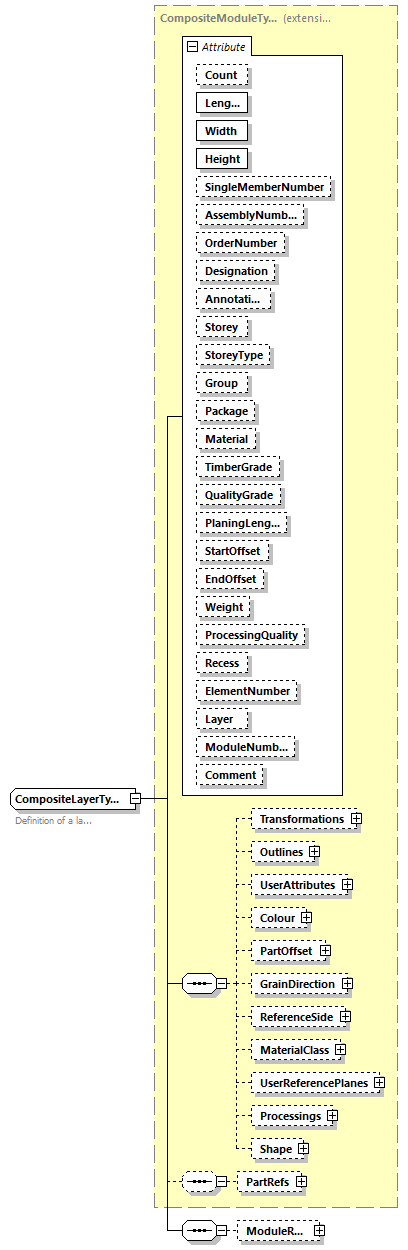

complexType CompositeLayerType
diagram BTLx_11_p69.png
namespace http://www.design2machine.com
type extension of CompositeModuleType
properties
base CompositeModuleType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape PartRefs ModuleRefs
used by
element ProjectType/Composites/Layers/Layer
complexType CompositeElementType
attributes
Name  Type  Use  Default  Fixed  annotation
Countderived by: xs:int  1
Lengthxs:doublerequired
Widthxs:doublerequired
Heightxs:doublerequired
SingleMemberNumberxs:unsignedInt
AssemblyNumberxs:string
OrderNumberxs:unsignedInt
Designationxs:string
Annotationxs:string
Storeyxs:string
StoreyTypeStoreyType
Groupxs:string
Packagexs:string
Materialxs:string
TimberGradexs:string
QualityGradexs:string
PlaningLengthxs:doubleoptional
StartOffsetxs:doubleoptional
EndOffsetxs:doubleoptional
Weightxs:double
ProcessingQualityProcessingQualityType
RecessRecessType
ElementNumberxs:string
Layerxs:int
ModuleNumberxs:string
Commentxs:string
annotation
documentation
Definition of a layer
source <xs:complexType name="CompositeLayerType">

<xs:annotation>

<xs:documentation>Definition of a layer</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="CompositeModuleType">

<xs:sequence>

<xs:element name="ModuleRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="ModuleRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element CompositeLayerType/ModuleRefs
diagram BTLx_11_p70.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children ModuleRef
source <xs:element name="ModuleRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="ModuleRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CompositeLayerType/ModuleRefs/ModuleRef
diagram BTLx_11_p71.png
namespace http://www.design2machine.com
type ReferenceType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
GUIDGUIDTyperequired
source <xs:element name="ModuleRef" type="ReferenceType"/>

complexType CompositeModuleType

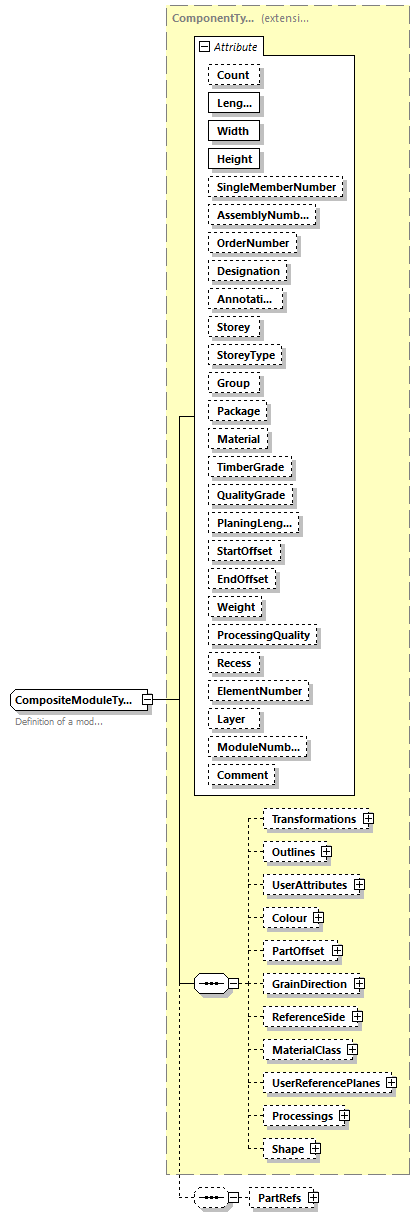

diagram BTLx_11_p72.png
namespace http://www.design2machine.com
type extension of ComponentType
properties
base ComponentType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape PartRefs
used by
element ProjectType/Composites/Modules/Module
complexType CompositeLayerType
attributes
Name  Type  Use  Default  Fixed  annotation
Countderived by: xs:int  1
Lengthxs:doublerequired
Widthxs:doublerequired
Heightxs:doublerequired
SingleMemberNumberxs:unsignedInt
AssemblyNumberxs:string
OrderNumberxs:unsignedInt
Designationxs:string
Annotationxs:string
Storeyxs:string
StoreyTypeStoreyType
Groupxs:string
Packagexs:string
Materialxs:string
TimberGradexs:string
QualityGradexs:string
PlaningLengthxs:doubleoptional
StartOffsetxs:doubleoptional
EndOffsetxs:doubleoptional
Weightxs:double
ProcessingQualityProcessingQualityType
RecessRecessType
ElementNumberxs:string
Layerxs:int
ModuleNumberxs:string
Commentxs:string
annotation
documentation
Definition of a module
source <xs:complexType name="CompositeModuleType">

<xs:annotation>

<xs:documentation>Definition of a module</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ComponentType">

<xs:sequence minOccurs="0">

<xs:element name="PartRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="PartRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element CompositeModuleType/PartRefs
diagram BTLx_11_p73.png
namespace http://www.design2machine.com
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children PartRef
source <xs:element name="PartRefs" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="PartRef" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element CompositeModuleType/PartRefs/PartRef
diagram BTLx_11_p74.png
namespace http://www.design2machine.com
type ReferenceType
properties
isRef 0
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  annotation
GUIDGUIDTyperequired
source <xs:element name="PartRef" type="ReferenceType"/>

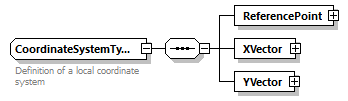

complexType CoordinateSystemType
diagram BTLx_11_p75.png
namespace http://www.design2machine.com
children ReferencePoint XVector YVector
used by
elements ReferenceType/Position UserReferencePlaneType/Position
annotation
documentation
Definition of a local coordinate system
source <xs:complexType name="CoordinateSystemType">

<xs:annotation>

<xs:documentation>Definition of a local coordinate system</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="ReferencePoint" type="CoordinateType"/>

<xs:element name="XVector" type="CoordinateType"/>

<xs:element name="YVector" type="CoordinateType"/>

</xs:sequence>
</xs:complexType>

element CoordinateSystemType/ReferencePoint
diagram BTLx_11_p76.png
namespace http://www.design2machine.com
type CoordinateType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
source <xs:element name="ReferencePoint" type="CoordinateType"/>

element CoordinateSystemType/XVector
diagram BTLx_11_p77.png
namespace http://www.design2machine.com
type CoordinateType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
source <xs:element name="XVector" type="CoordinateType"/>

element CoordinateSystemType/YVector
diagram BTLx_11_p78.png
namespace http://www.design2machine.com
type CoordinateType
properties
isRef 0
content complex
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
source <xs:element name="YVector" type="CoordinateType"/>

complexType CoordinateType
diagram BTLx_11_p79.png
namespace http://www.design2machine.com
used by
elements LineType/EndPoint ComponentType/GrainDirection ArcType/PointOnArc CoordinateSystemType/ReferencePoint CoordinateSystemType/XVector CoordinateSystemType/YVector

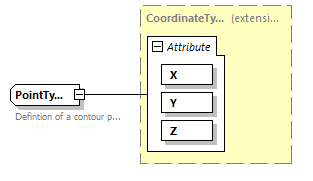

complexType PointType
attributes
Name  Type  Use  Default  Fixed  annotation
Xxs:doublerequired
Yxs:doublerequired
Zxs:doublerequired
annotation
documentation
Definition of a vector or point
source <xs:complexType name="CoordinateType">

<xs:annotation>

<xs:documentation>Definition of a vector or point</xs:documentation>

</xs:annotation>

<xs:attribute name="X" type="xs:double" use="required"/>

<xs:attribute name="Y" type="xs:double" use="required"/>

<xs:attribute name="Z" type="xs:double" use="required"/>
</xs:complexType>

attribute CoordinateType/@X
type xs:double
properties
isRef 0
use required
source <xs:attribute name="X" type="xs:double" use="required"/>

attribute CoordinateType/@Y
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Y" type="xs:double" use="required"/>

attribute CoordinateType/@Z
type xs:double
properties
isRef 0
use required
source <xs:attribute name="Z" type="xs:double" use="required"/>

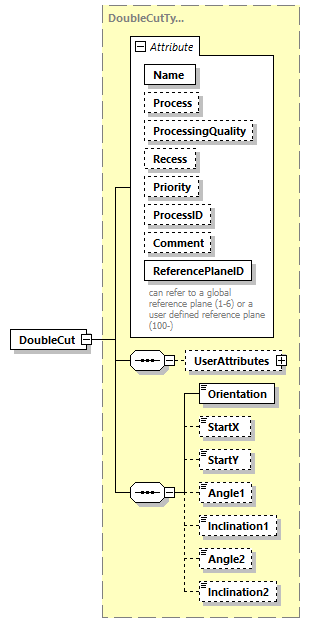

complexType DoubleCutType

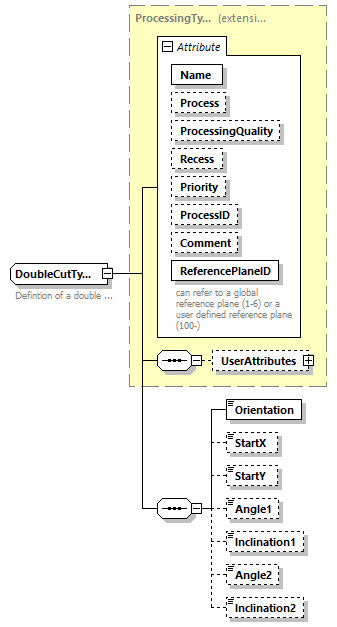

diagram BTLx_11_p80.png
namespace http://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Orientation StartX StartY Angle1 Inclination1 Angle2 Inclination2
used by
element ProcessingsType/DoubleCut
attributes
Name  Type  Use  Default  Fixed  annotation
Namexs:stringrequired
ProcessBooleanType  yes
ProcessingQualityProcessingQualityType
RecessRecessType
Priorityxs:int  0
ProcessIDxs:unsignedInt
Commentxs:string
ReferencePlaneIDderived by: xs:unsignedIntrequired
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Defintion of a double cut
source <xs:complexType name="DoubleCutType">

<xs:annotation>

<xs:documentation>Defintion of a double cut</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingType">

<xs:sequence>

<xs:element name="Orientation" type="OrientationType"/>

<xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

<xs:element name="StartY" type="WidthNType" default="50.0" minOccurs="0"/>

<xs:element name="Angle1" type="AngleType" default="45.0" minOccurs="0"/>

<xs:element name="Inclination1" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="Angle2" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="Inclination2" type="AngleType" default="90.0" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element DoubleCutType/Orientation
diagram BTLx_11_p81.png
namespace http://www.design2machine.com
type OrientationType
properties
isRef 0
content simple
facets
enumeration start
enumeration end
source <xs:element name="Orientation" type="OrientationType"/>

element DoubleCutType/StartX
diagram BTLx_11_p82.png
namespace http://www.design2machine.com
type LengthPosType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 0.0
facets
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element DoubleCutType/StartY
diagram BTLx_11_p83.png
namespace http://www.design2machine.com
type WidthNType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 50.0
facets
minInclusive -50000.0
maxInclusive 50000.0
source <xs:element name="StartY" type="WidthNType" default="50.0" minOccurs="0"/>

element DoubleCutType/Angle1
diagram BTLx_11_p84.png
namespace http://www.design2machine.com
type AngleType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
default 45.0
facets
minInclusive 0.1
maxInclusive 179.9
