Schema BTLx_2_1_0.xsd


schema location:  ..\BTLx_2_1_0.xsd
attributeFormDefault:
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Complex types  Simple types

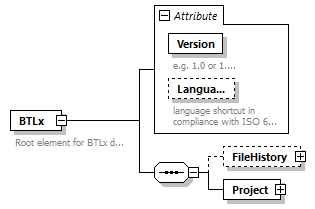

BTLx  AlignmentType  AlignmentHorizontalType

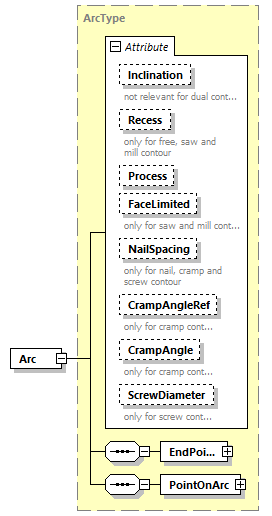

ArcType  AlignmentVerticalType
BaseContourApType  Angle2NType

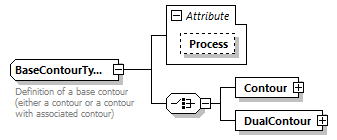

BaseContourType  Angle2Type

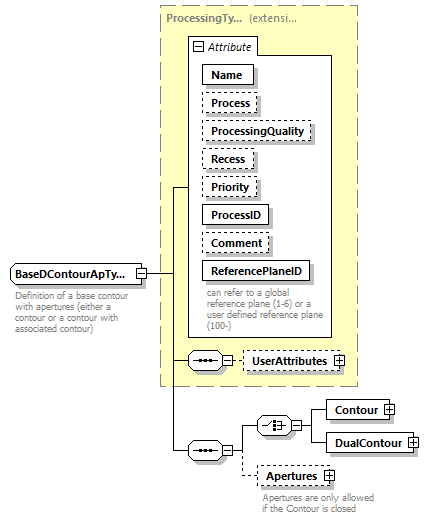

BaseDContourApType  Angle3Type

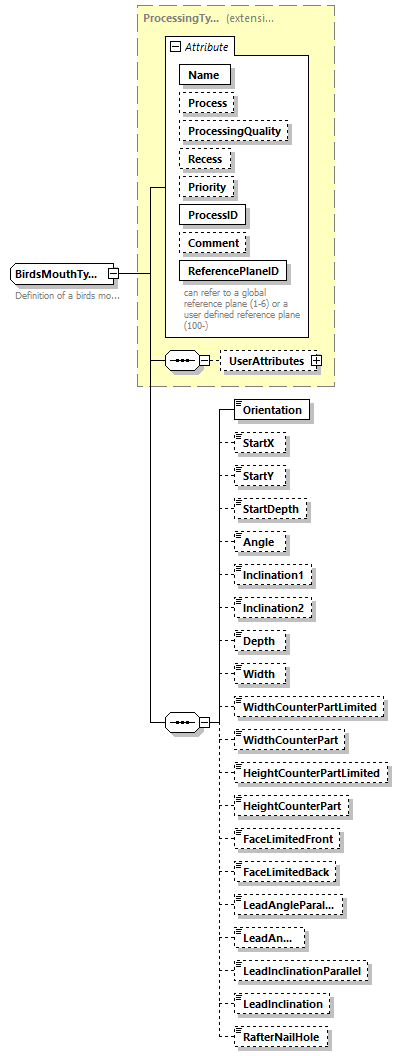

BirdsMouthType  AngleNType
CamberType  AngleType
ChamferType  ArcShapeType
ColourType  BooleanType
ComponentType  ChamferExitType
CompositeElementChargeType  ConeAngleType

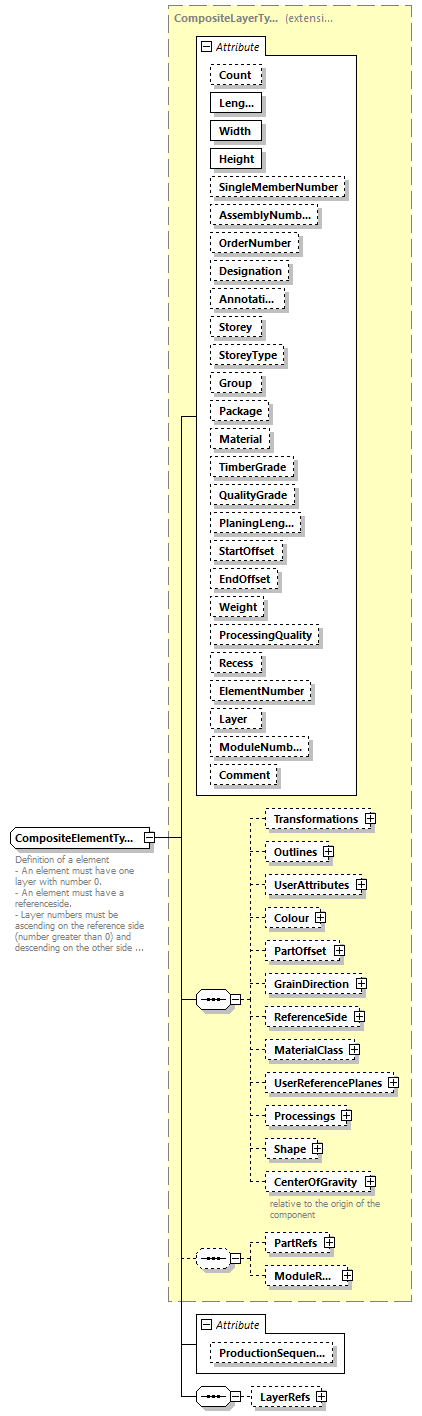

CompositeElementType  ContourRecessType
CompositeLayerType  ContourType

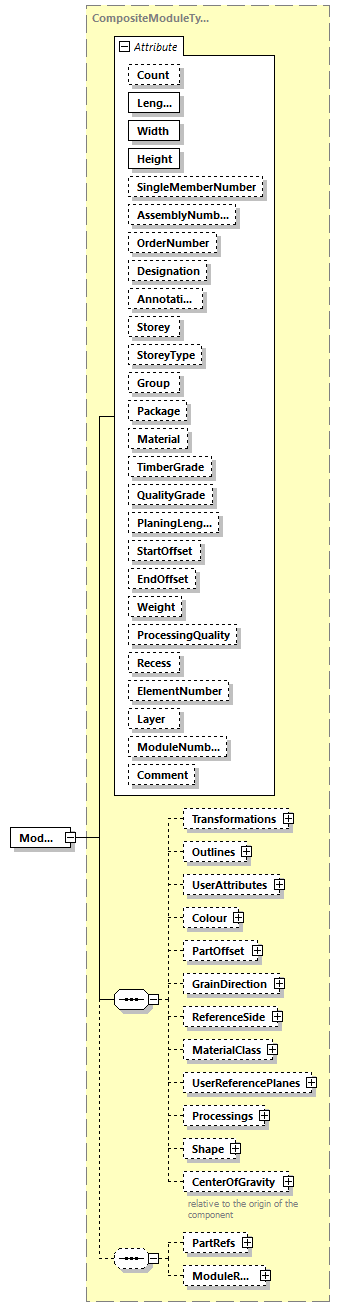

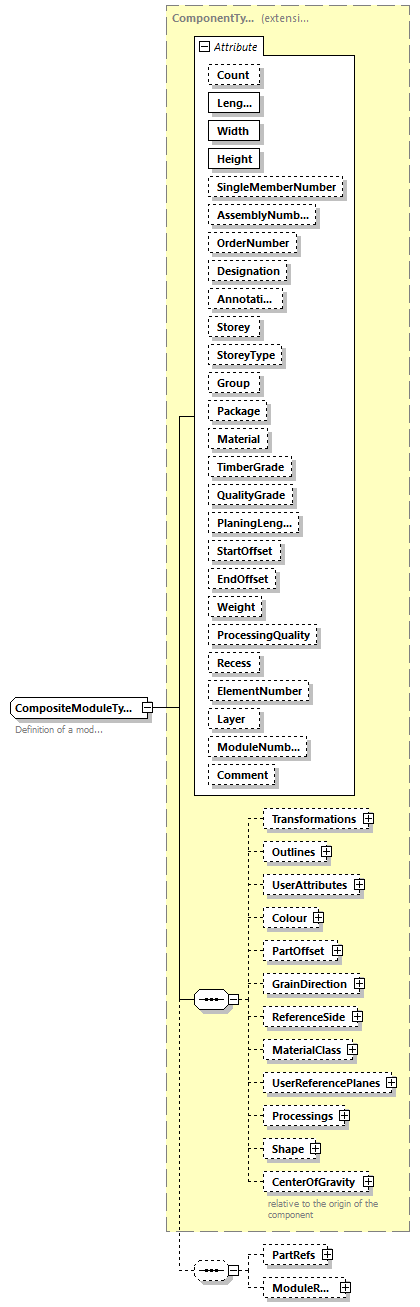

CompositeModuleType  CrampAngleRefType
ControlPointType  DiameterType
CoordinateSystemType  DovetailShapeType
CoordinateType  EdgePositionType
CrampContourType  EndType

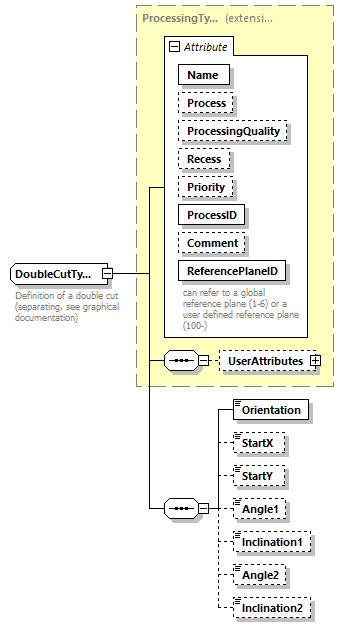

DoubleCutType  FlankAngleType

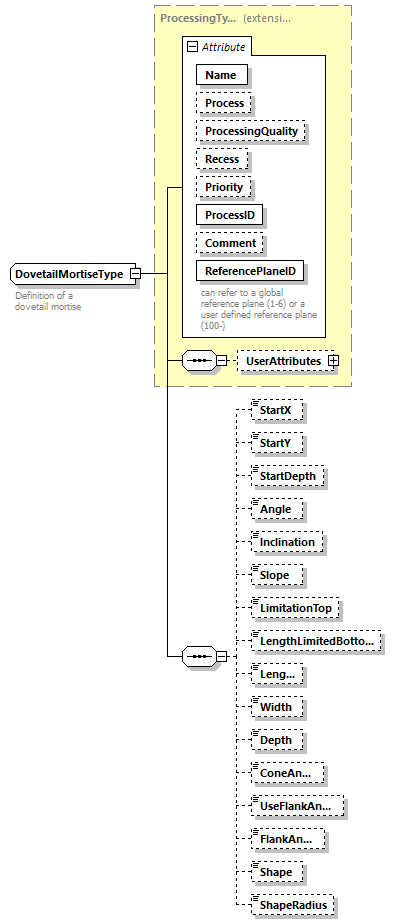

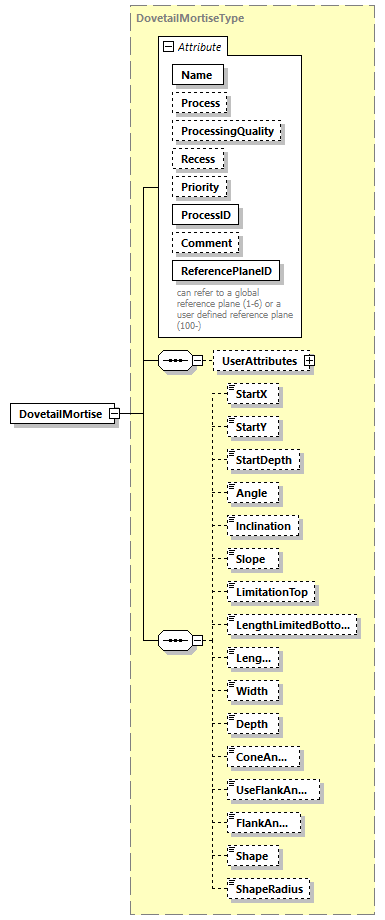

DovetailMortiseType  GUIDType

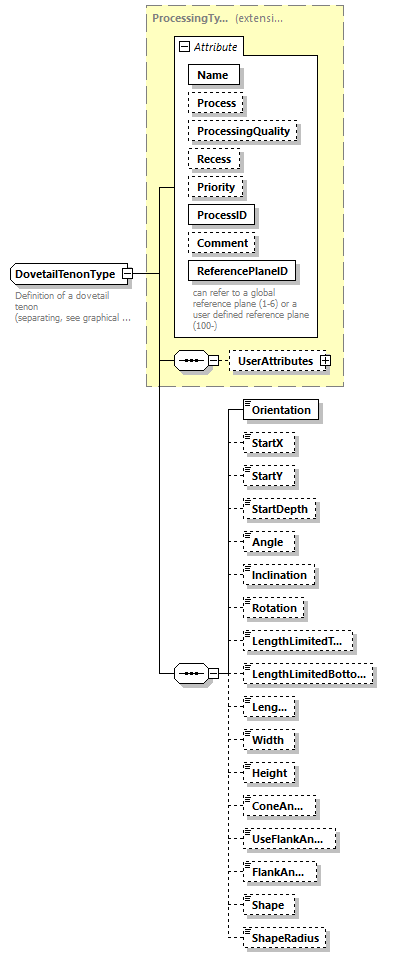

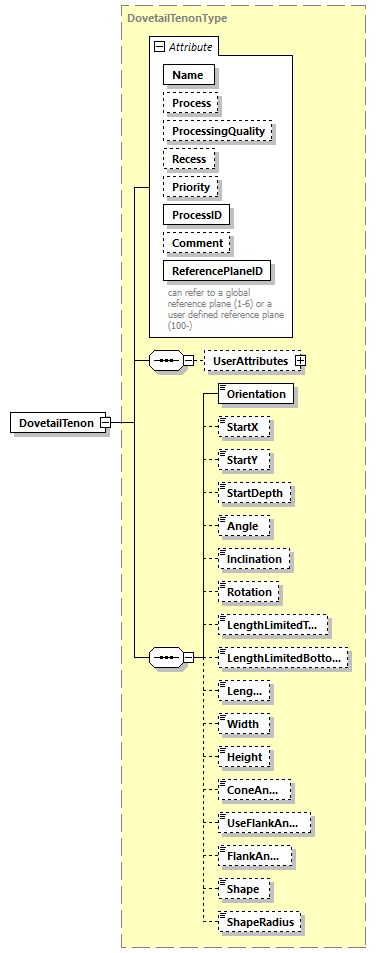

DovetailTenonType  Inclination2Type

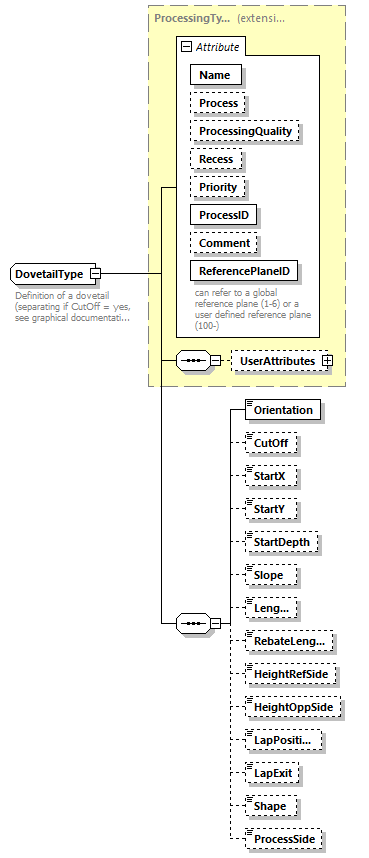

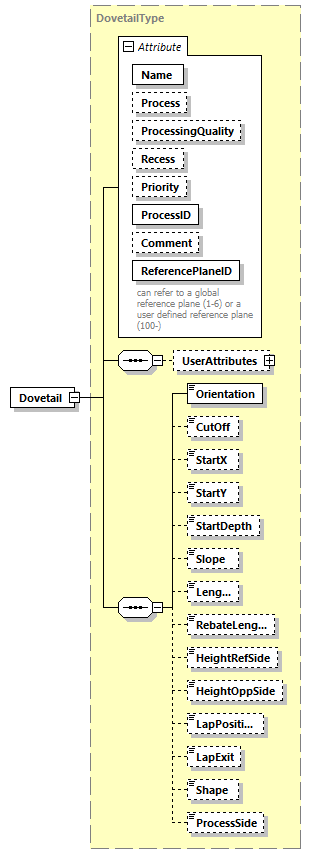

DovetailType  Inclination3Type

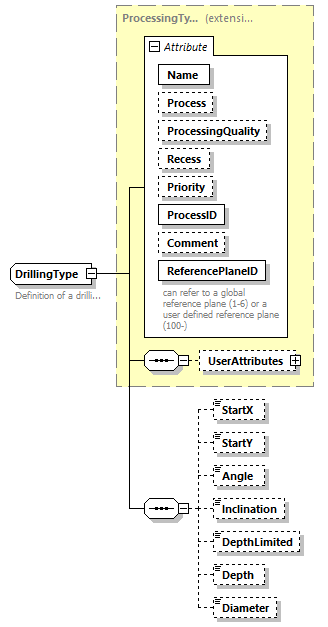

DrillingType  InclinationType

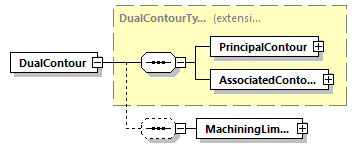

DualContourType  KnotListType

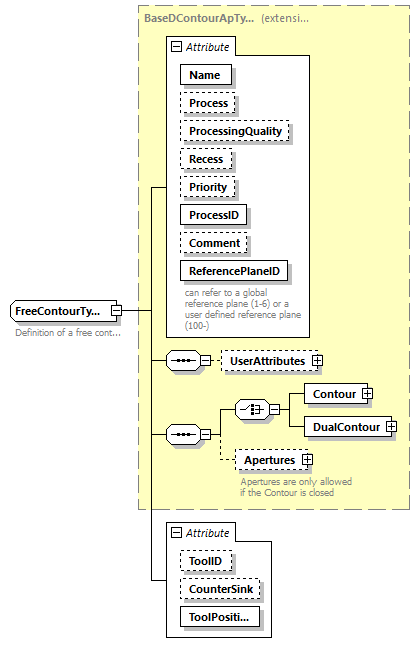

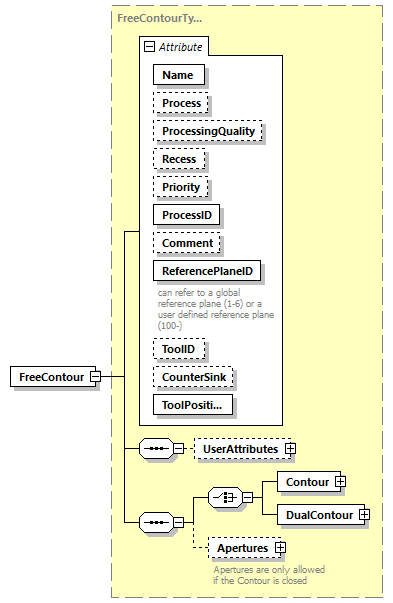

FreeContourType  LapExitType

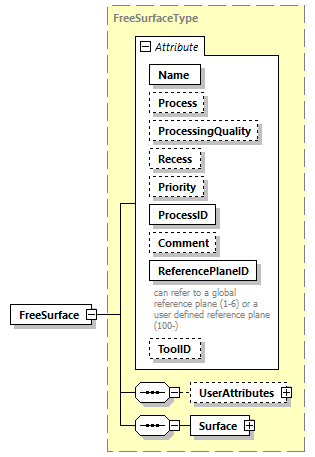

FreeSurfaceType  LengthPosType
FrenchRidgeLapType  LengthSType
GlueAreaType  LengthType
HipValleyRafterNotchType  LimitationTopType
HouseMortiseType  LocationType
HouseType  LogLapPositionType
InsulationAreaType  MarkingStyleType

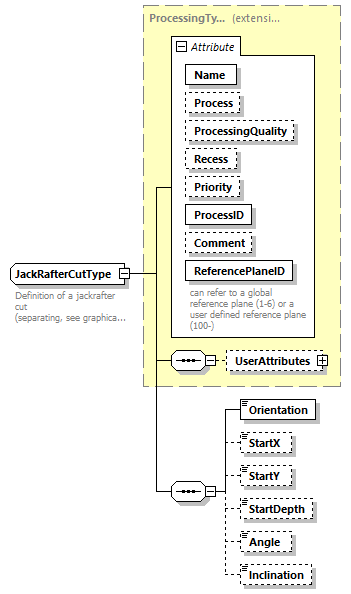

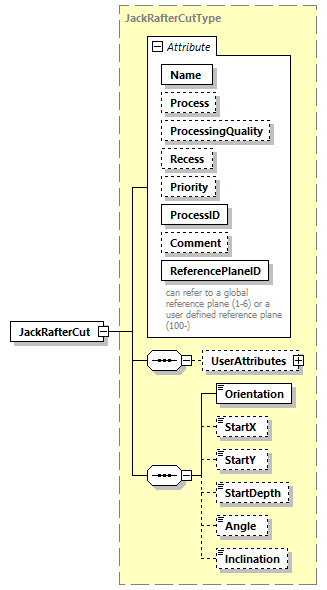

JackRafterCutType  MaterialGroupType
JapaneseMortiseType  OrientationType

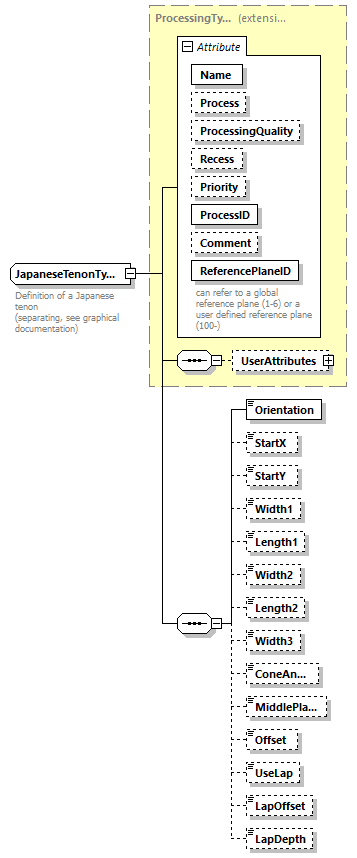

JapaneseTenonType  PremillType
LapType  ProcessingQualityType
LineType  ProcessSideType
LockoutAreaType  RawPartEnumType
LogHouseFrontType  RecessAdvType

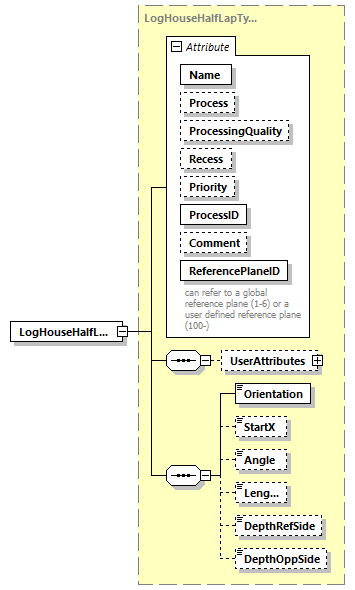

LogHouseHalfLapType  RecessType

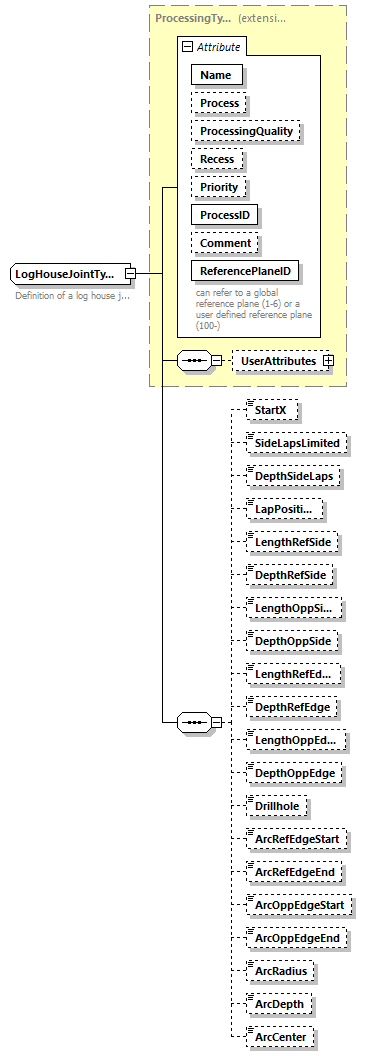

LogHouseJointType  RefSideType
LongitudinalCutType  ScarfShapeType

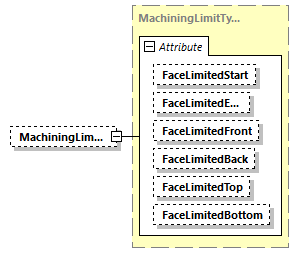

MachiningLimitType  StepShapeType

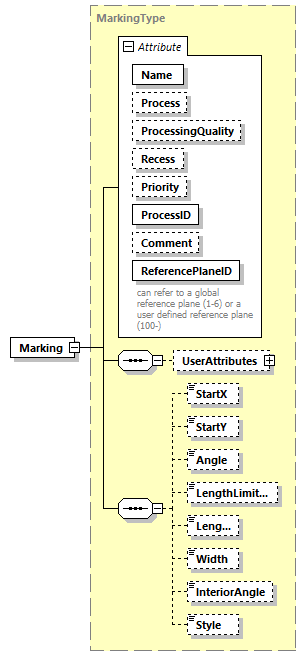

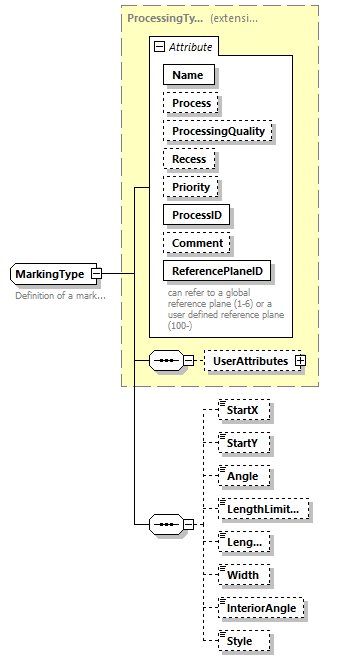

MarkingType  StoreyType
MaterialClassType  TenonShapeType
MillContourType  ToolPositionType

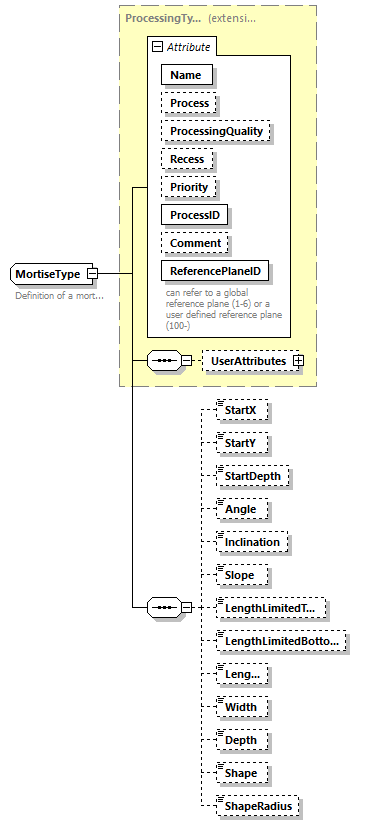

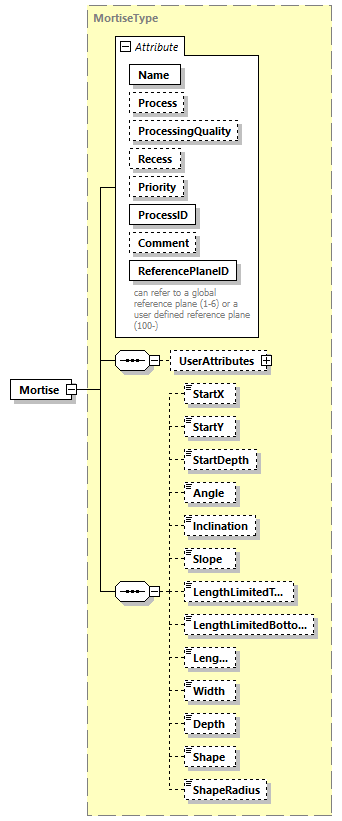

MortiseType  TyroleanDovetailShapeType
NailContourType  UAttributeType

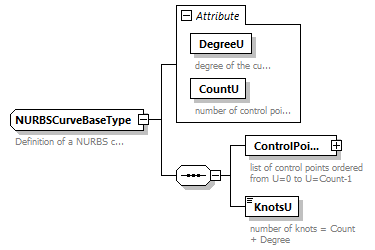

NURBSCurveBaseType  WidthNType

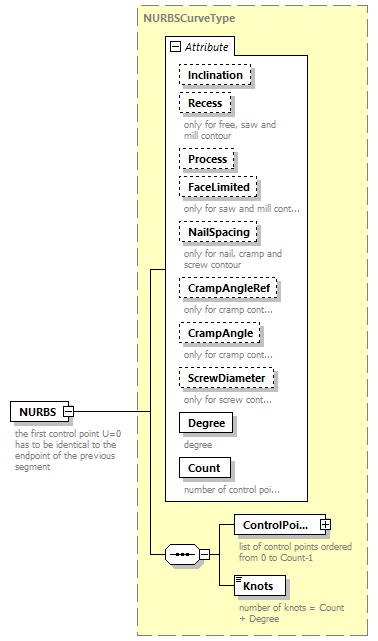

NURBSCurveType  WidthType
NURBSPatchDerivType

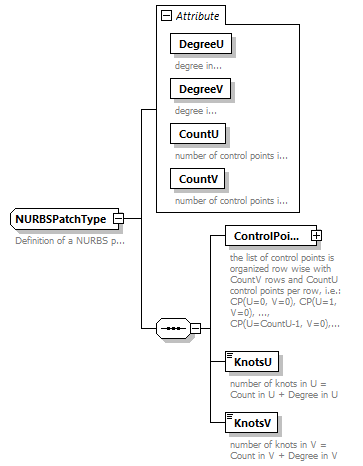

NURBSPatchType
OutlineType
PartOffsetType

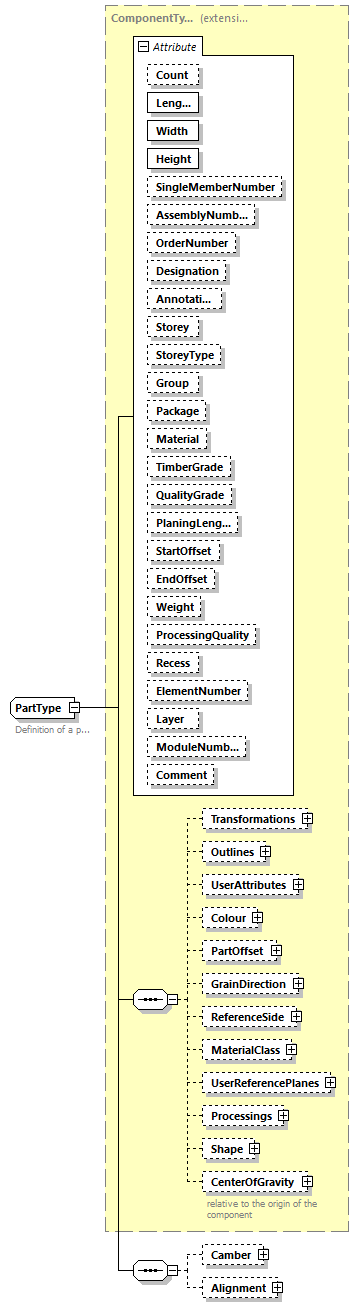

PartType
PenContourType

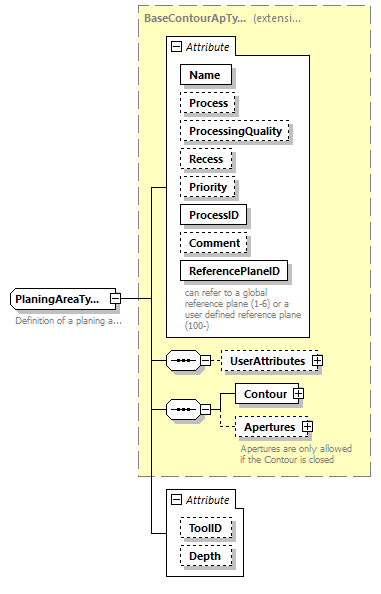

PlaningAreaType
PlaningType
PlasterAreaType
PocketType
PointType
ProcessingBaseType

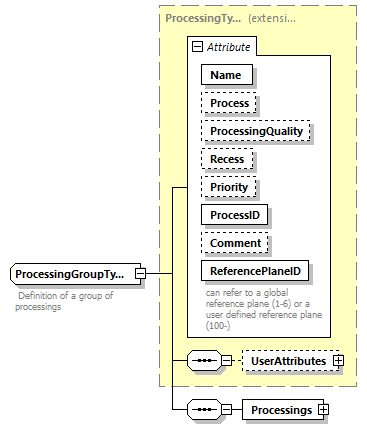

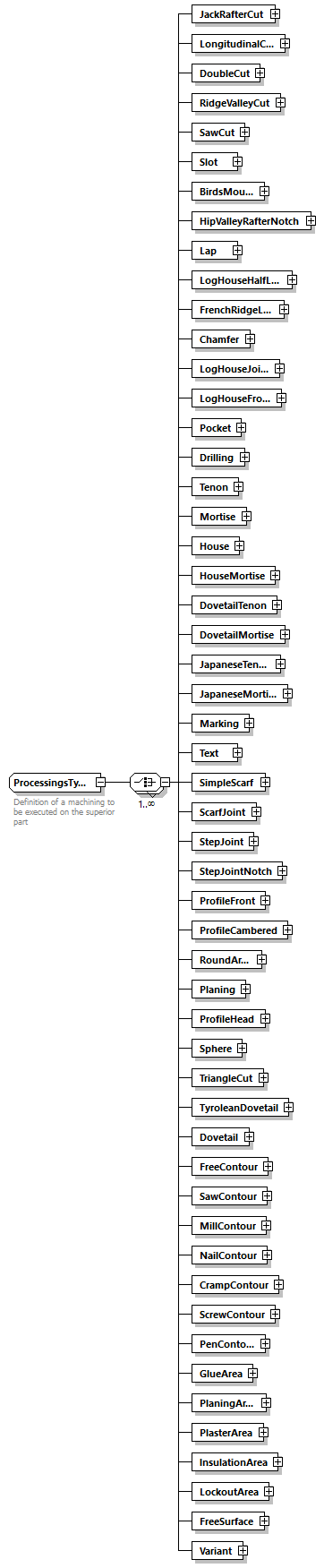

ProcessingGroupType
ProcessingsType
ProcessingType

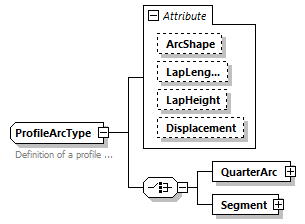

ProfileArcType
ProfileCamberedType

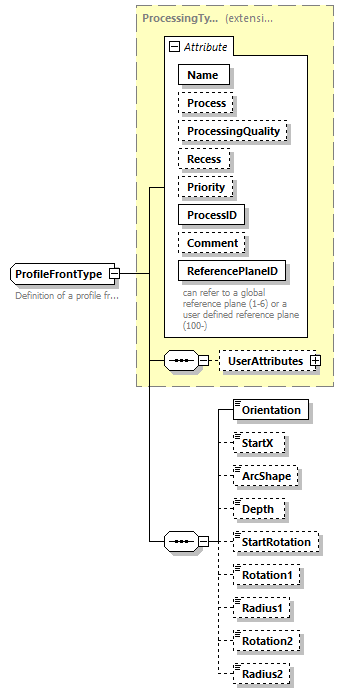

ProfileFrontType

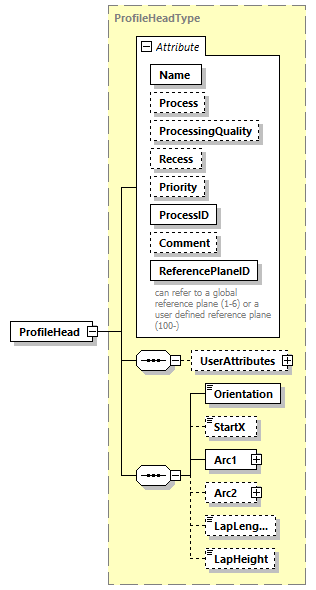

ProfileHeadType

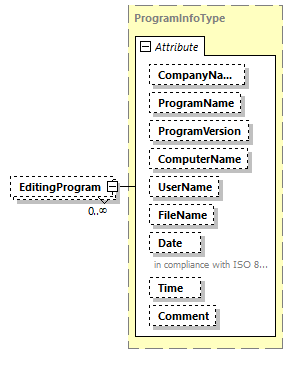

ProgramInfoType
ProjectType
RawPartType
ReferenceType
RidgeValleyCutType
RoundArchType
SawContourType
SawCutType
ScarfJointType
ScrewContourType
ShapeType
SimpleContourType

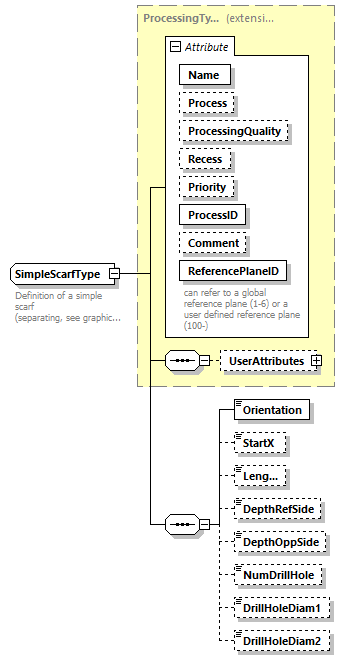

SimpleScarfType
SlotType

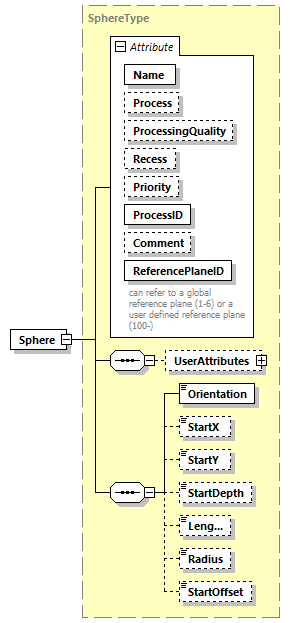

SphereType
StepJointNotchType

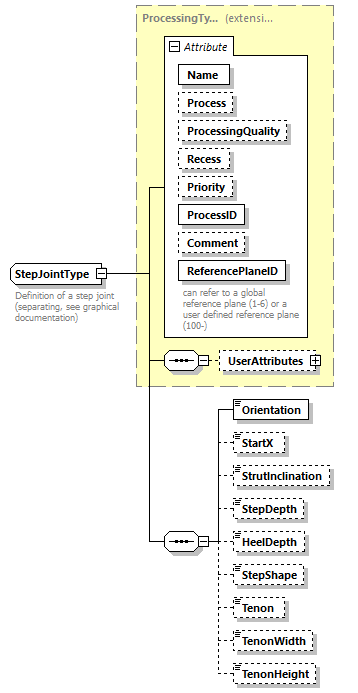

StepJointType

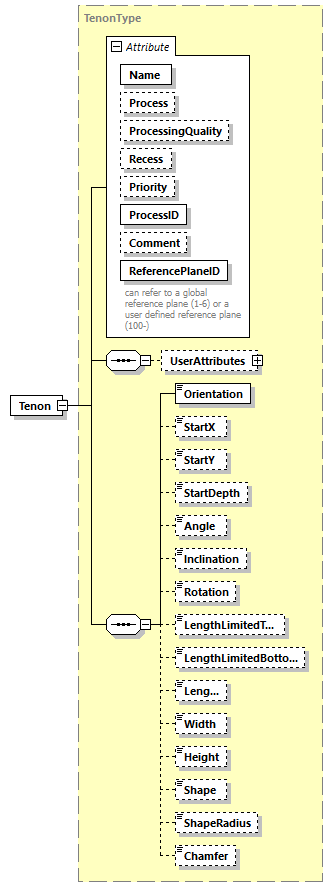

TenonType

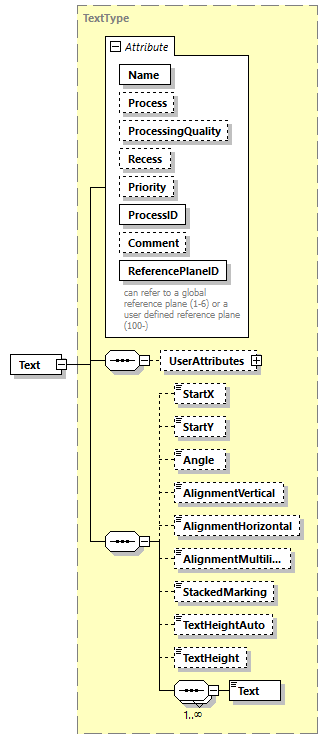

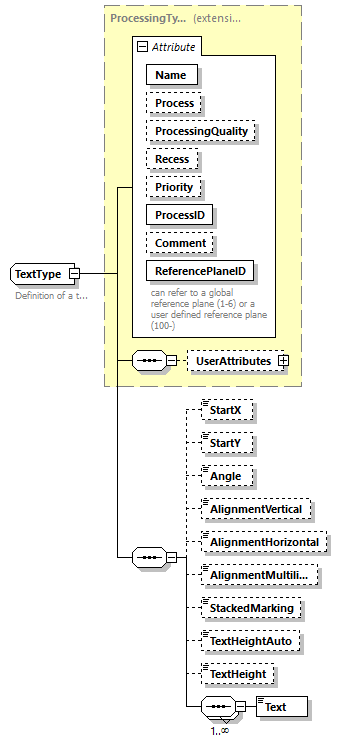

TextType

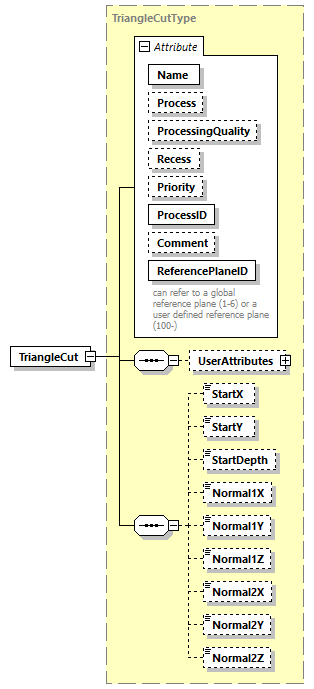

TriangleCutType
TyroleanDovetailType
UserAttributeType

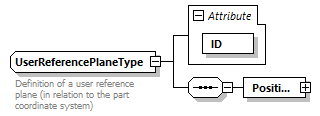

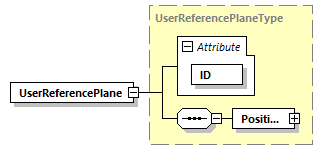

UserReferencePlaneType
VariantParameterType

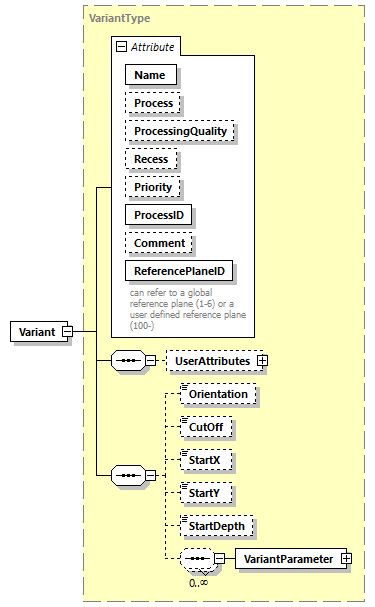

VariantType


schema location:  https://www.web3d.org/specifications/x3d-3.3.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Groups  Complex types  Simple types  Attr. groups

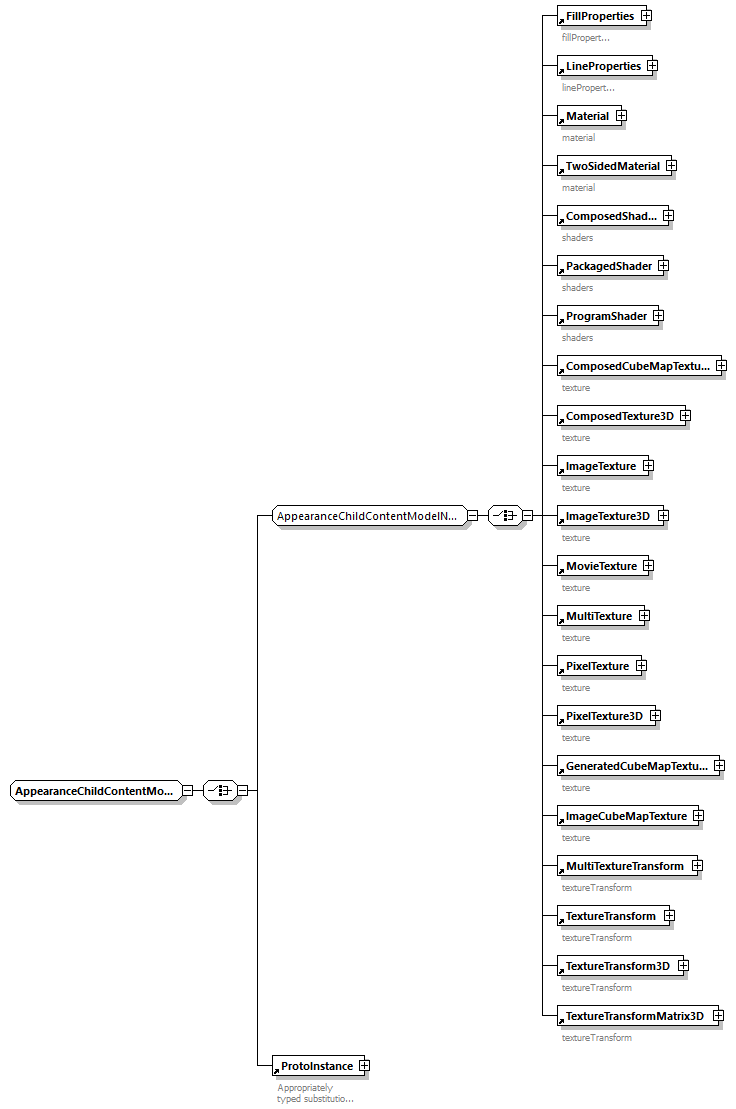

Anchor  AppearanceChildContentModel  SceneGraphStructureStatement  accessTypeChoices  DEF_USE
Appearance  AppearanceChildContentModelNoProtoInstance  X3DAppearanceChildNode  appliedParametersChoices  globalAttributes

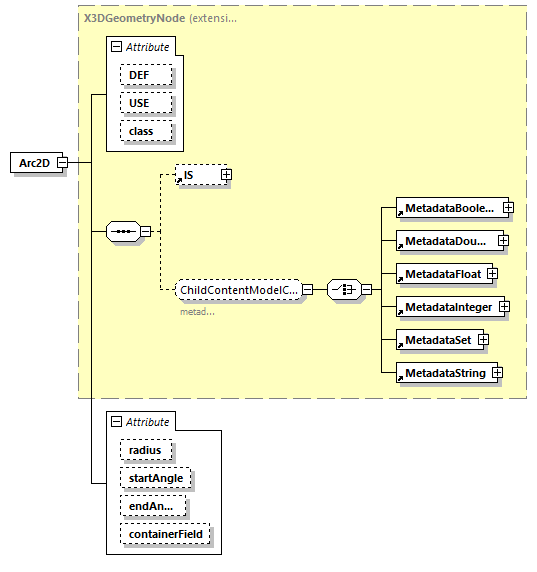

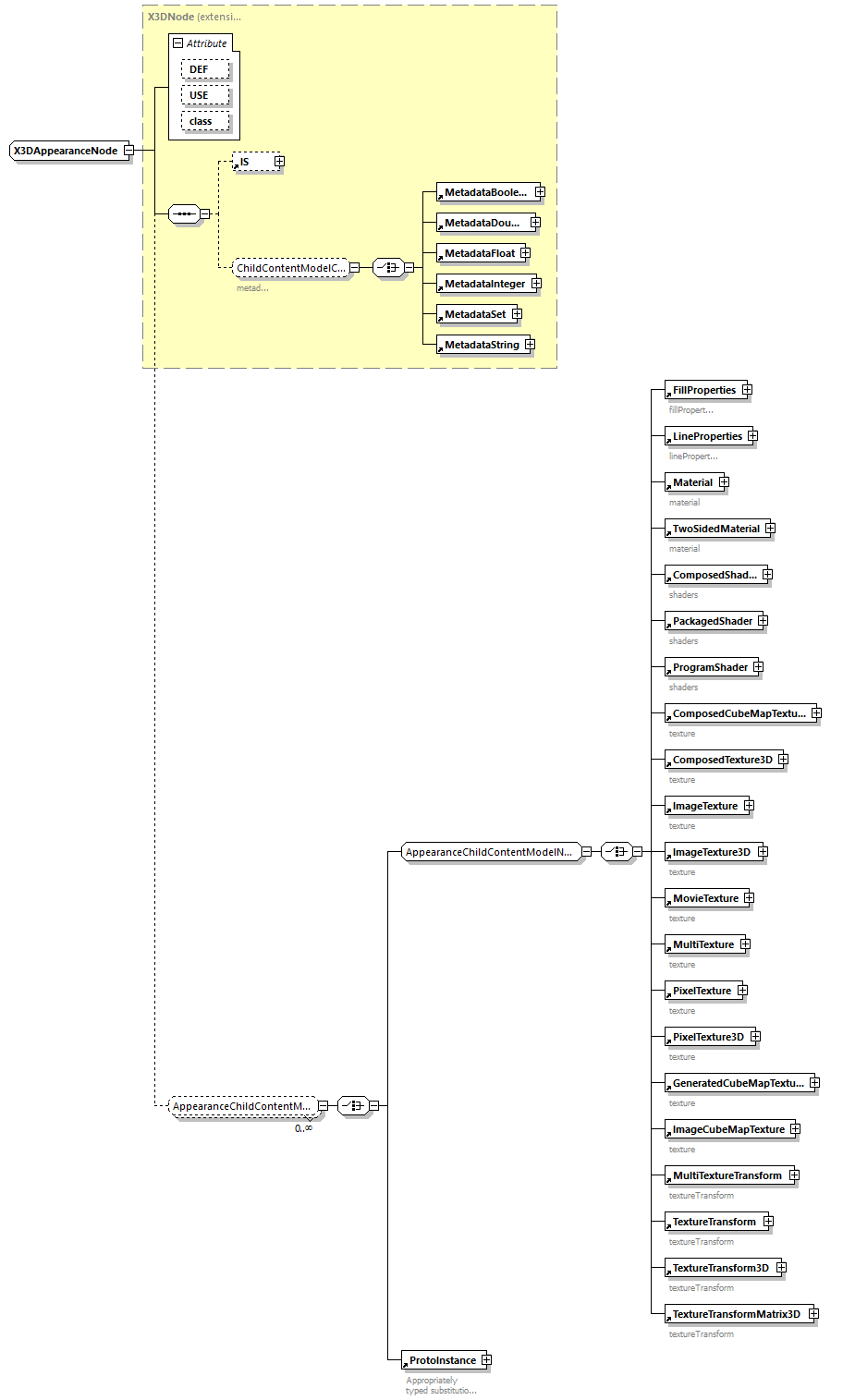

Arc2D  ChildContentModel  X3DAppearanceNode  bboxSizeType

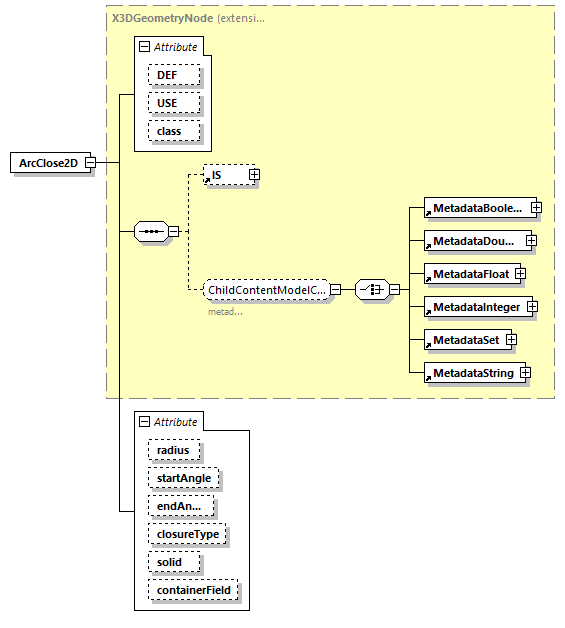

ArcClose2D  ChildContentModelCore  X3DBackgroundNode  closureTypeChoices
AudioClip  ChildContentModelDIS  X3DBindableNode  componentNameChoices

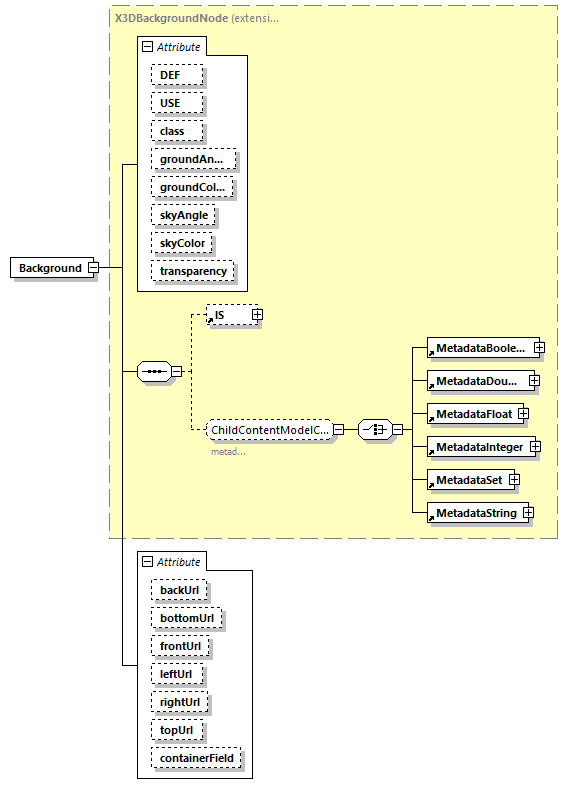

Background  ChildContentModelFull  X3DBoundedObject  containerFieldChoicesAudioClip

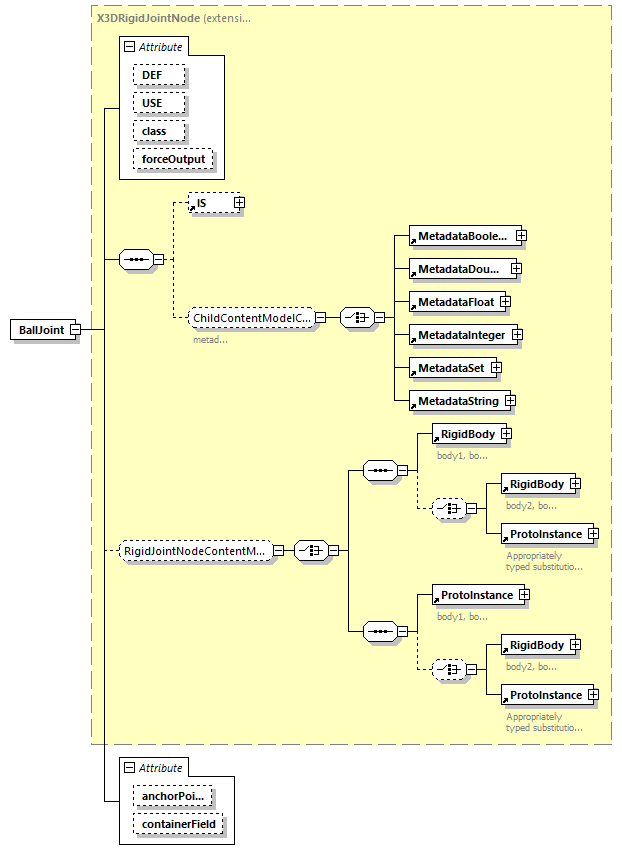

BallJoint  ChildContentModelGeoSpatial  X3DChaserNode  containerFieldChoicesColor
Billboard  ChildContentModelHumanoidAnimation  X3DChildNode  containerFieldChoicesDISEntityTypeMapping
BlendedVolumeStyle  ChildContentModelImmersive  X3DColorNode  containerFieldChoicesGroupLODShapeTransform

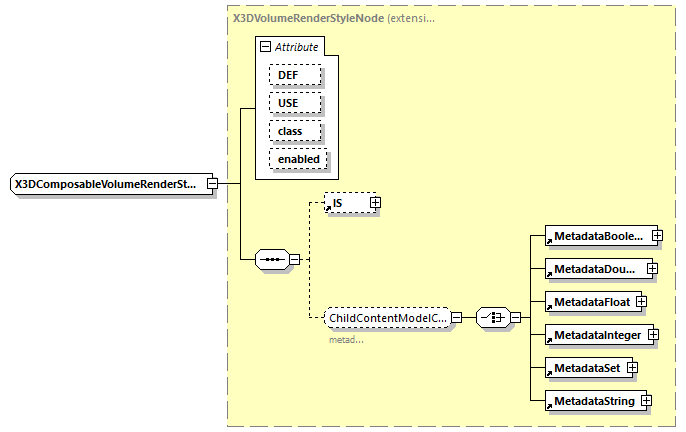

BooleanFilter  ChildContentModelInteractive  X3DComposableVolumeRenderStyleNode  containerFieldChoicesHAnimJoint

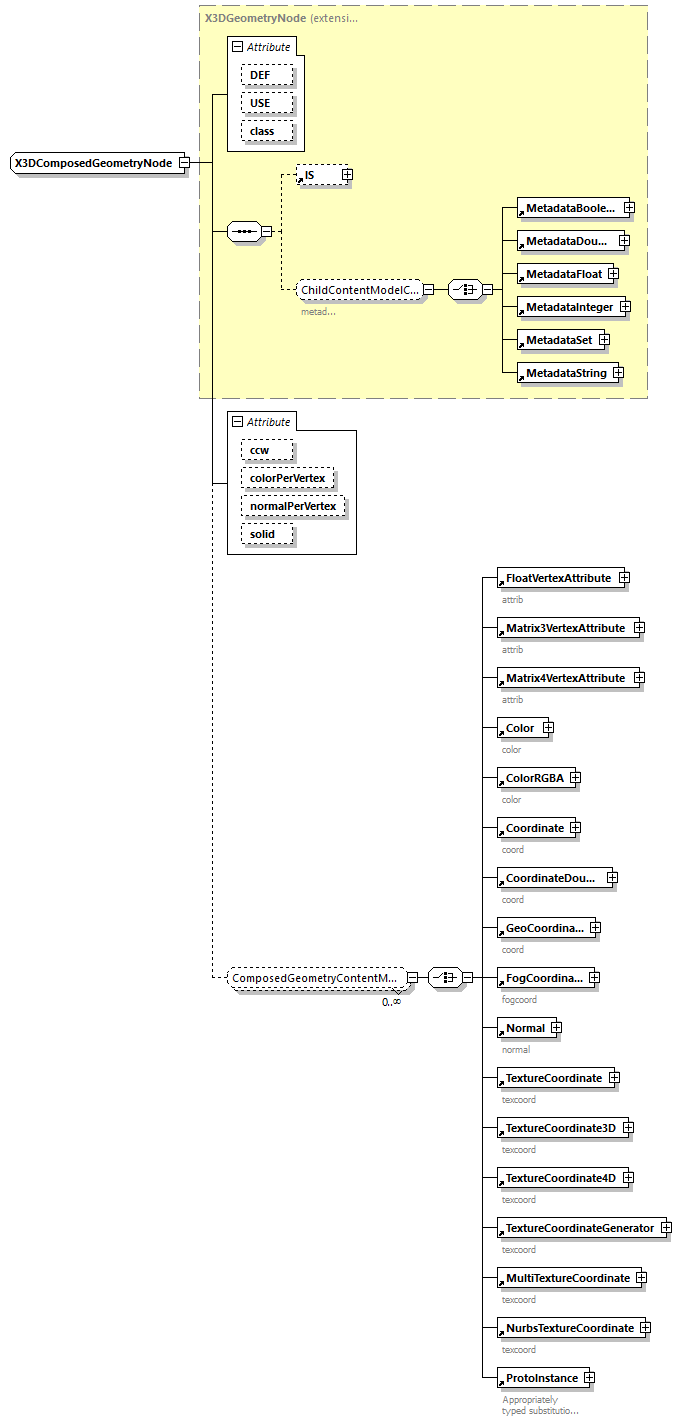

BooleanSequencer  ChildContentModelInterchange  X3DComposedGeometryNode  containerFieldChoicesHAnimSegment

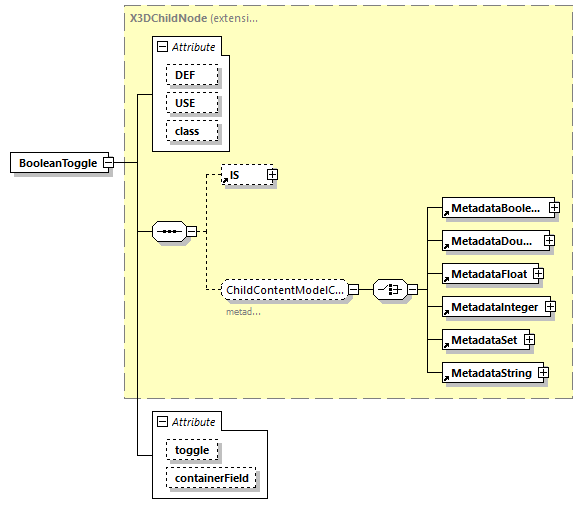

BooleanToggle  ChildContentModelNurbs  X3DCoordinateNode  containerFieldChoicesHAnimSite

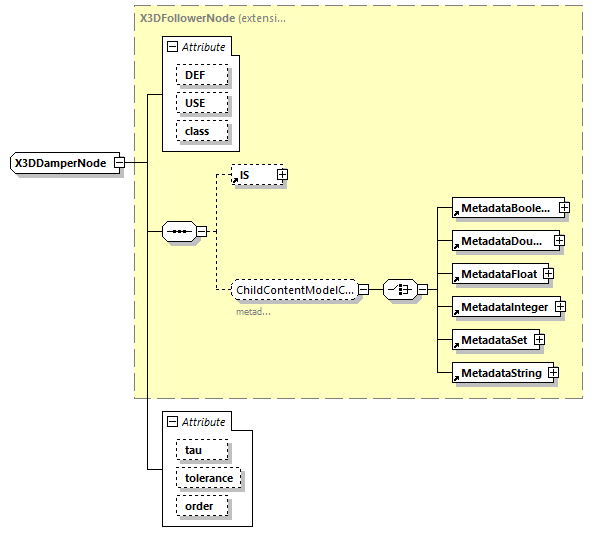

BooleanTrigger  ChildContentModelProtoInstance  X3DDamperNode  containerFieldChoicesMetadata
BoundaryEnhancementVolumeStyle  ChildContentModelSceneGraphStructure  X3DDragSensorNode  containerFieldChoicesPackagedShader

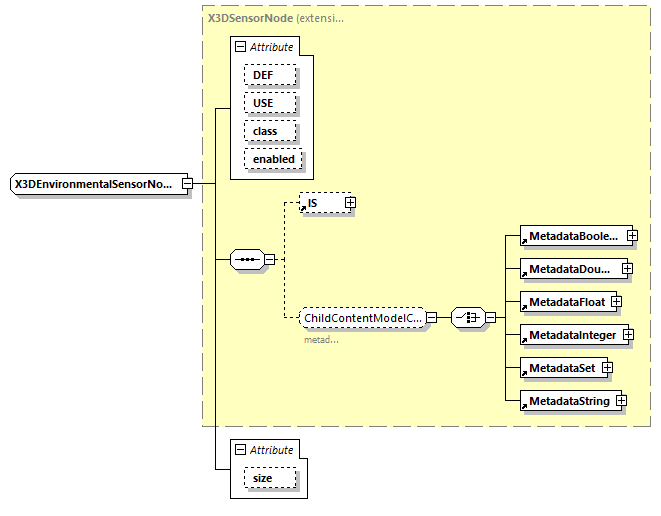

BoundedPhysicsModel  ColorCoordinateContentModel  X3DEnvironmentalSensorNode  containerFieldChoicesShaderPart
Box  ColorCoordinateNormalTexCoordContentModel  X3DEnvironmentTextureNode  containerFieldChoicesTextureCoordinate
CADAssembly  ColorNormalTexCoordContentModel  X3DField  containerFieldChoicesX3DCoordinateNode
CADFace  ComposedGeometryContentModel  X3DFogObject  containerFieldChoicesX3DNormalNode
CADLayer  GeometryContentModel  X3DFollowerNode  containerFieldChoicesX3DTexture2DNode

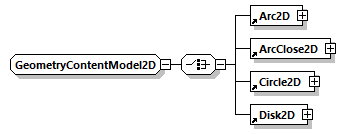

CADPart  GeometryContentModel2D  X3DFontStyleNode  containerFieldChoicesX3DTexture3DNode
CartoonVolumeStyle  GeometryContentModel2DImmersive  X3DGeometricPropertyNode  containerFieldChoicesX3DUrlObject

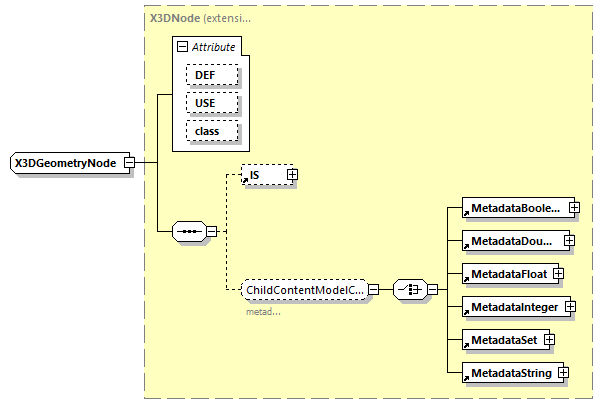

Circle2D  GeometryContentModelCAD  X3DGeometryNode  containerFieldChoicesX3dUrlObjectTexture
ClipPlane  GeometryContentModelGeoSpatial  X3DGroupingNode  fieldTypeChoices

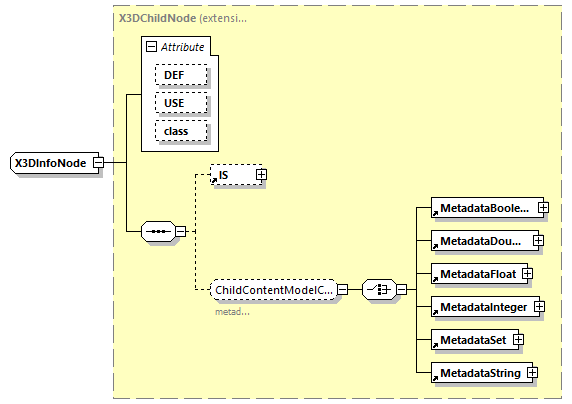

CollidableOffset  GeometryContentModelImmersive  X3DInfoNode  fogTypeChoices
CollidableShape  GeometryContentModelInteractive  X3DInterpolatorNode  fontFamilyValues
Collision  GeometryContentModelInterchange  X3DKeyDeviceSensorNode  fontStyleChoices

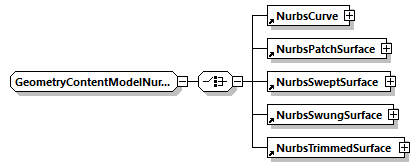

CollisionCollection  GeometryContentModelNurbs  X3DLayerNode  forceOutputValues
CollisionSensor  GroupingNodeChildContentModel  X3DLayoutNode  generatedCubeMapTextureUpdateChoices
CollisionSpace  LayoutGroupContentModel  X3DLightNode  geoMetadataKeyValues

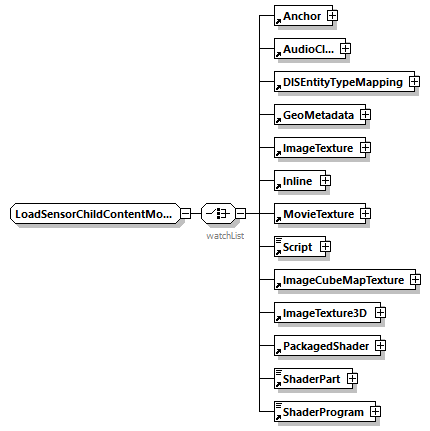

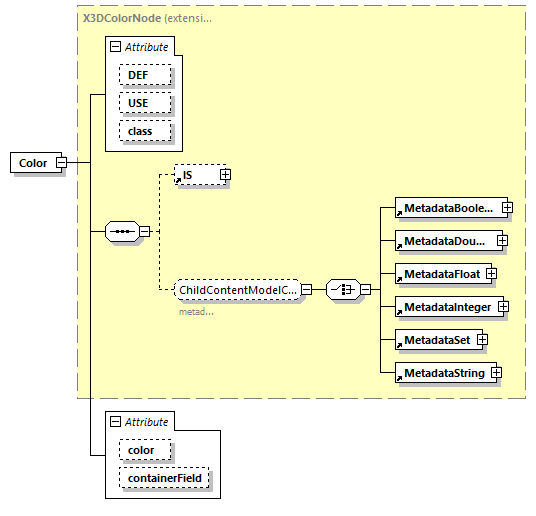

Color  LoadSensorChildContentModel  X3DMaterialNode  geoSystemEarthEllipsoidValues
ColorChaser  PickSensorGroupingNodeContentModel  X3DMetadataObject  geoSystemSpatialReferenceFrameValues

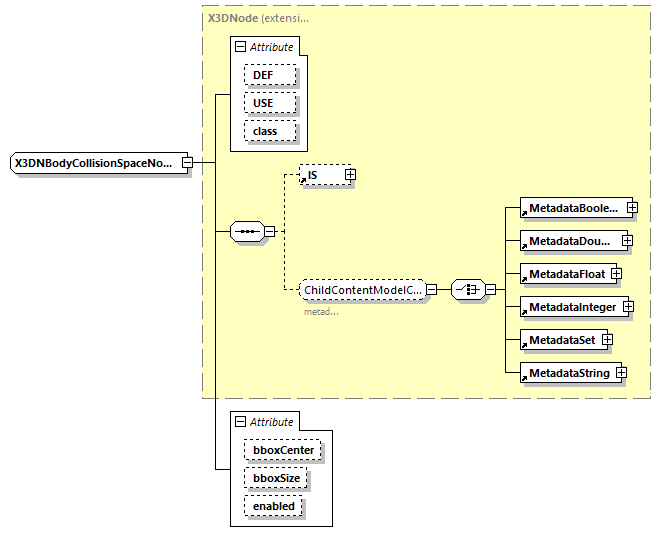

ColorDamper  RigidBodyCollectionContentModel  X3DNBodyCollidableNode  geoSystemType

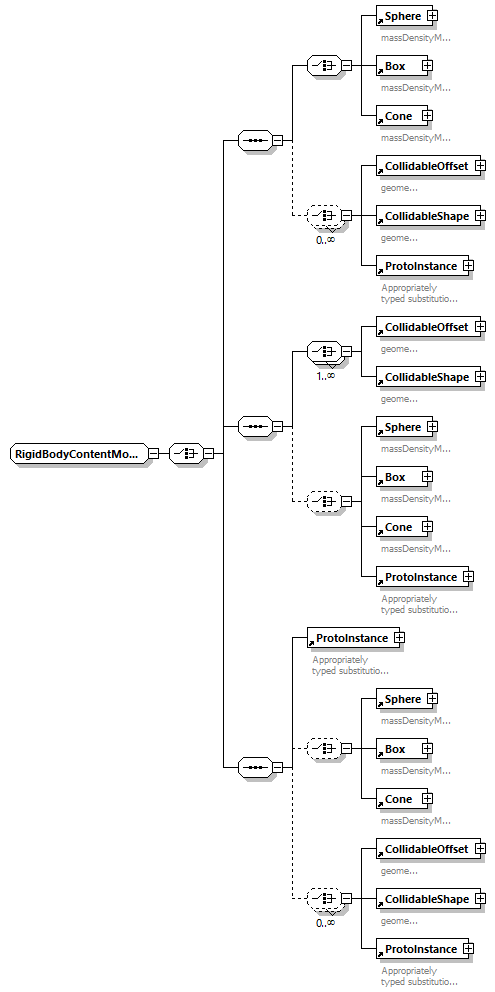

ColorInterpolator  RigidBodyContentModel  X3DNBodyCollisionSpaceNode  hanimFeaturePointNameValues

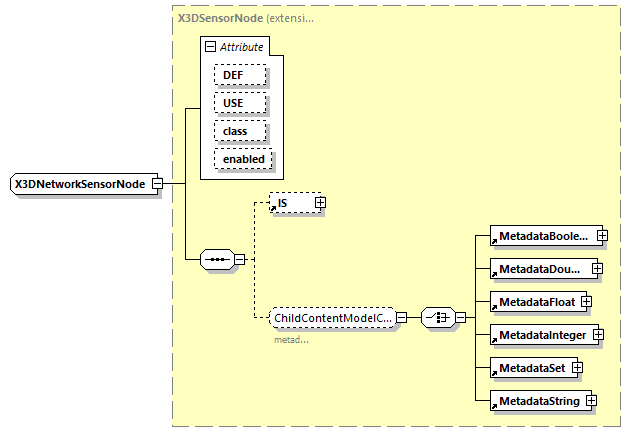

ColorRGBA  RigidJointNodeContentModel  X3DNetworkSensorNode  hanimHumanoidInfoKeyValues
component  SceneGraphFragmentContentModel  X3DNode  hanimJointNameValues

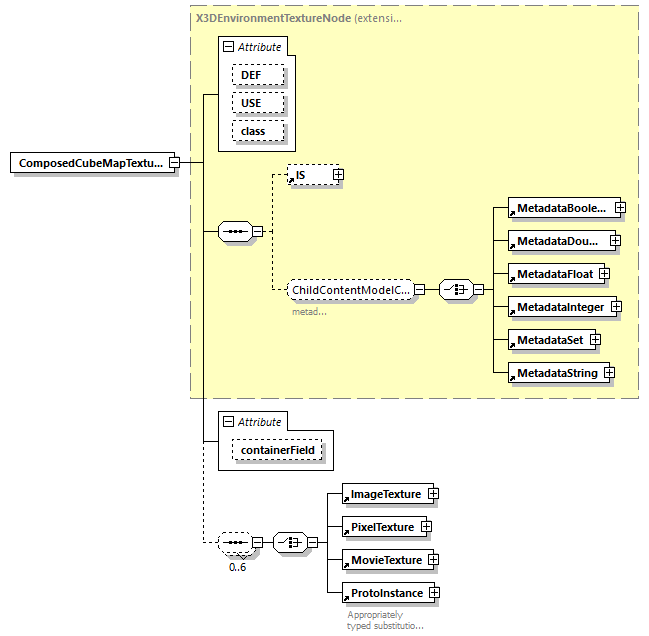

ComposedCubeMapTexture  SceneGraphFragmentWithPrototypeDeclarationsContentModel  X3DNodeMixedContent  hanimSegmentNameValues
ComposedShader  ShapeChildContentModel  X3DNormalNode  hanimVersionChoices

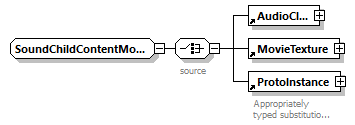

ComposedTexture3D  SoundChildContentModel  X3DNurbsControlCurveNode  initializeOnlyAccessTypes
ComposedVolumeStyle  TextChildContentModel  X3DNurbsSurfaceGeometryNode  inputOnlyAccessTypes

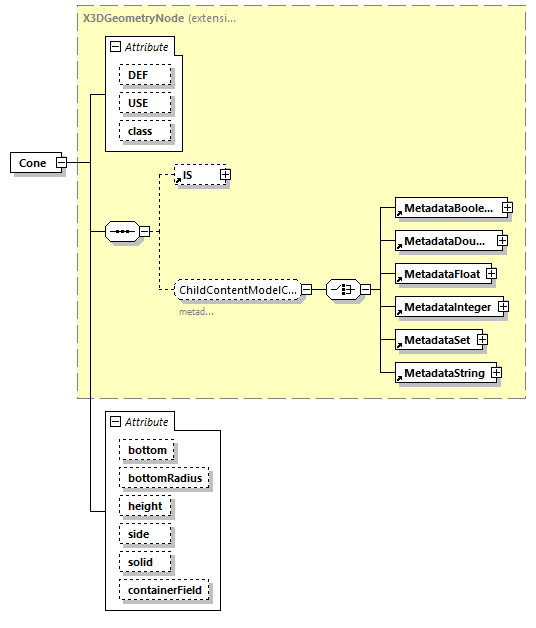

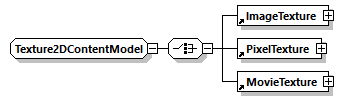

Cone  Texture2DContentModel  X3DParametricGeometryNode  inputOutputAccessTypes
ConeEmitter  Texture3DContentModel  X3DParticleEmitterNode  intersectionTypeValues

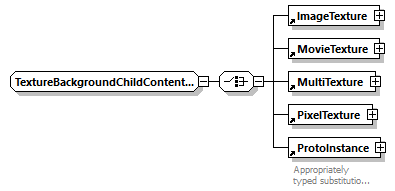

connect  TextureBackgroundChildContentModel  X3DParticlePhysicsModelNode  justifyChoices
Contact  TextureContentModel  X3DPickableObject  layoutAlignChoices

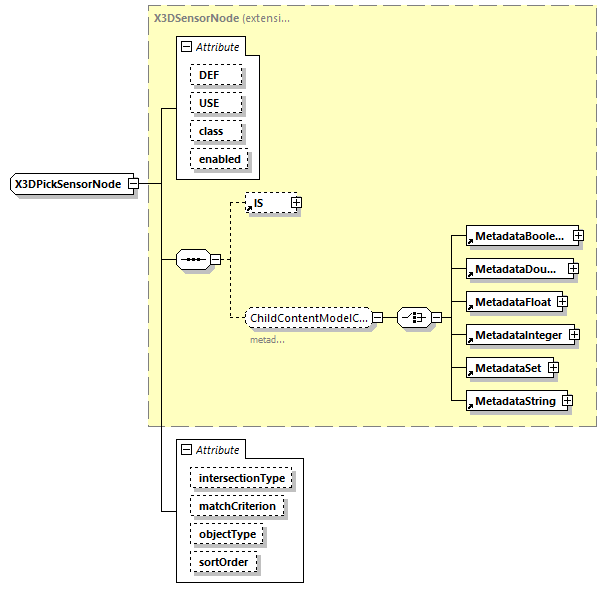

Contour2D  VolumeRenderStyleContentModel  X3DPickSensorNode  layoutScaleModeChoices

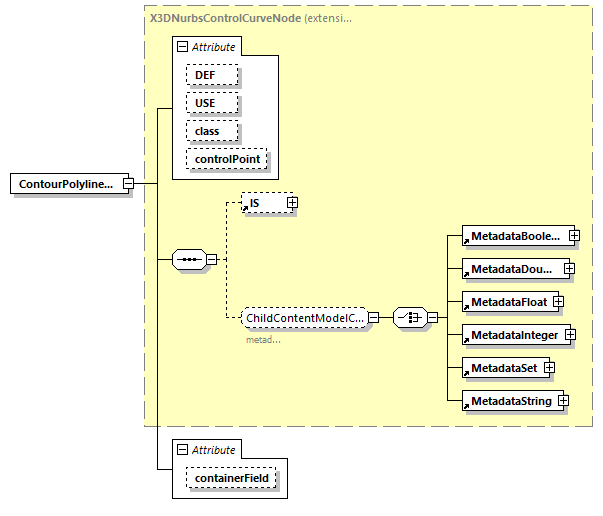

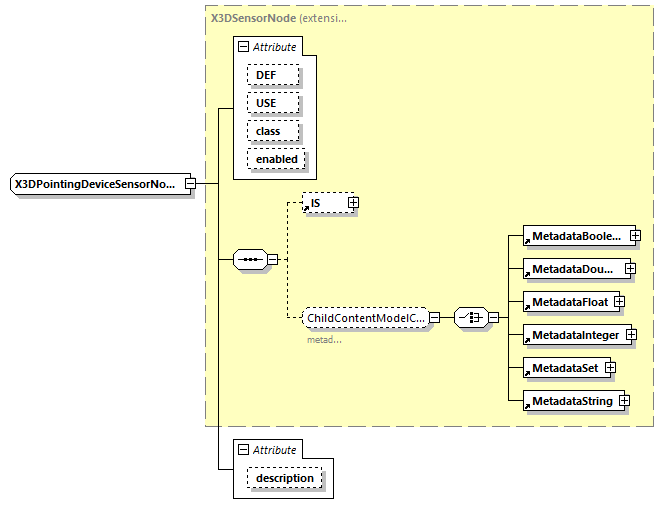

ContourPolyline2D  X3DPointingDeviceSensorNode  layoutUnitsChoices
Coordinate  X3DProductStructureChildNode  metaDirectionChoices

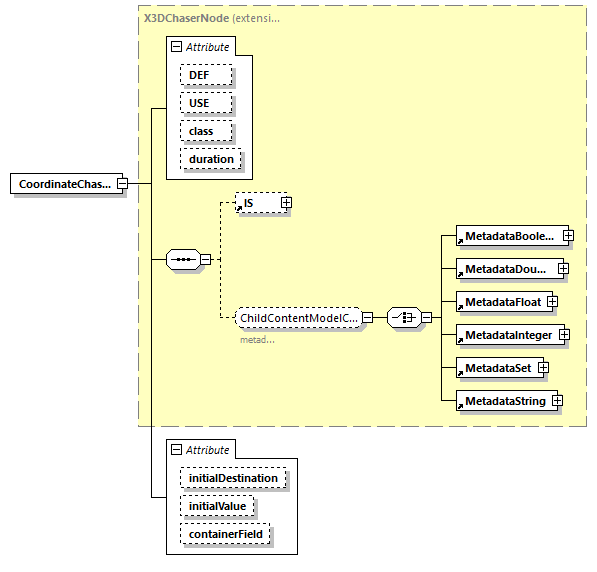

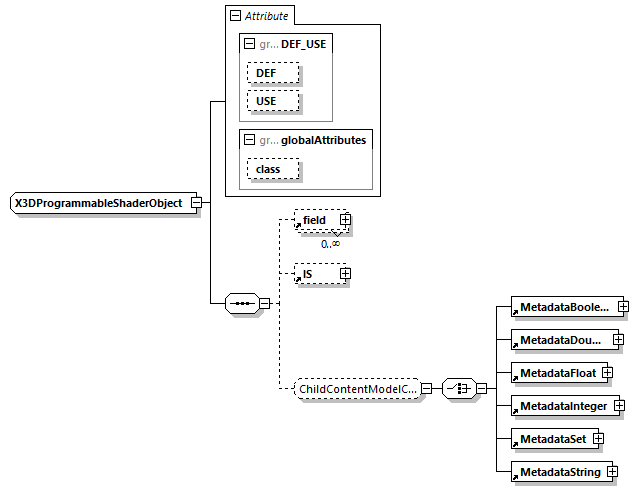

CoordinateChaser  X3DProgrammableShaderObject  metaNameValues

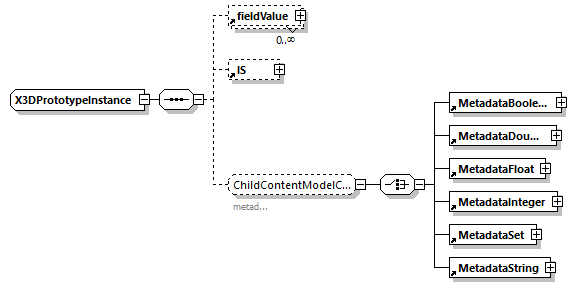

CoordinateDamper  X3DPrototypeInstance  MFBool
CoordinateDouble  X3DRigidJointNode  MFColor
CoordinateInterpolator  X3DScriptNode  MFColorRGBA

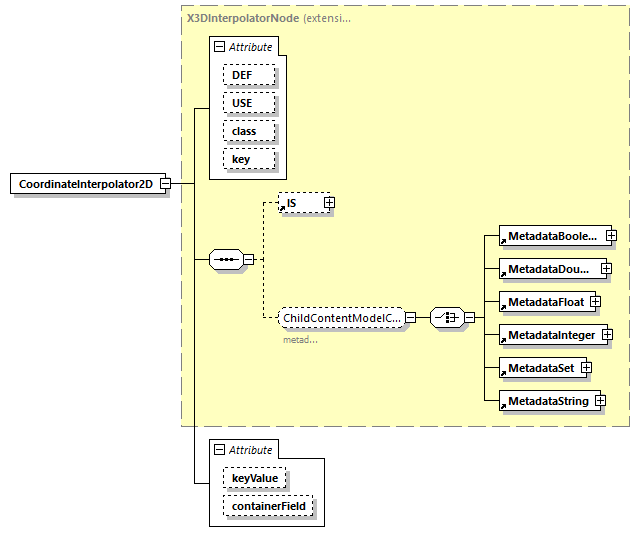

CoordinateInterpolator2D  X3DSensorNode  MFDouble
Cylinder  X3DSequencerNode  MFFloat
CylinderSensor  X3DShaderNode  MFImage
DirectionalLight  X3DShapeNode  MFInt32
DISEntityManager  X3DSoundNode  MFMatrix3d
DISEntityTypeMapping  X3DSoundSourceNode  MFMatrix3f

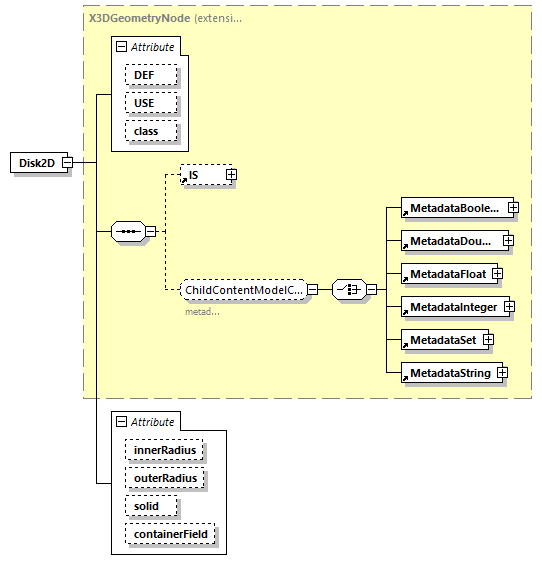

Disk2D  X3DTexture2DNode  MFMatrix4d

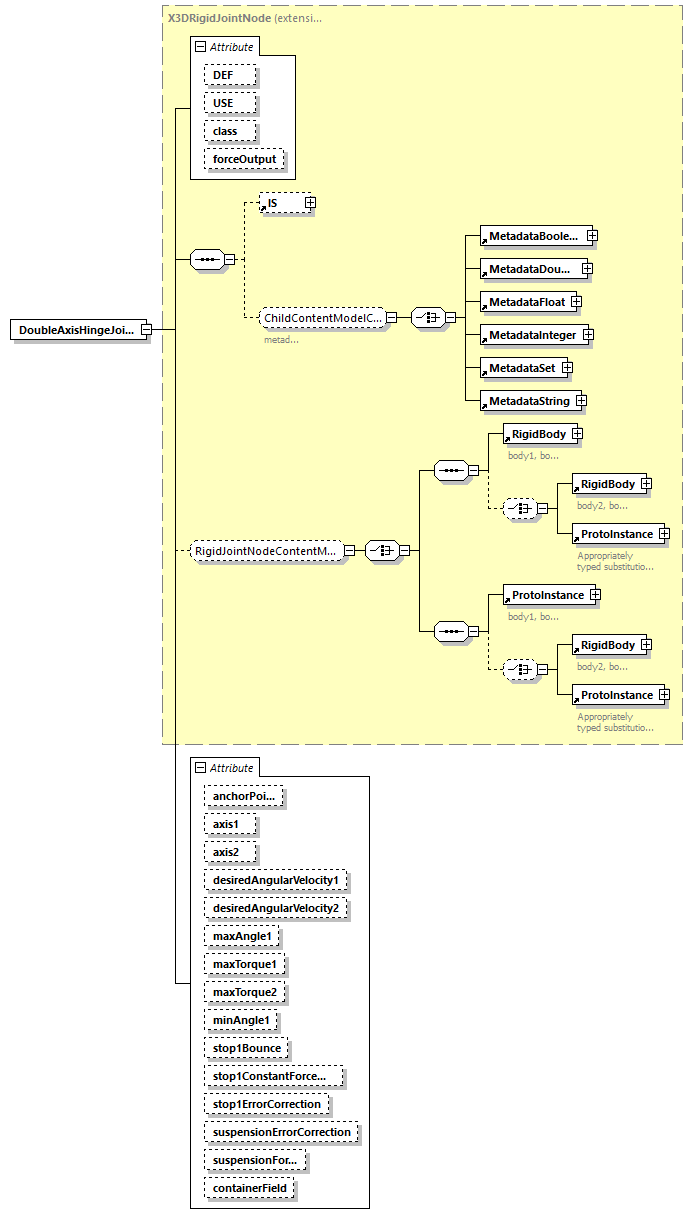

DoubleAxisHingeJoint  X3DTexture3DNode  MFMatrix4f
EaseInEaseOut  X3DTextureCoordinateNode  MFNode
EdgeEnhancementVolumeStyle  X3DTextureNode  MFRotation

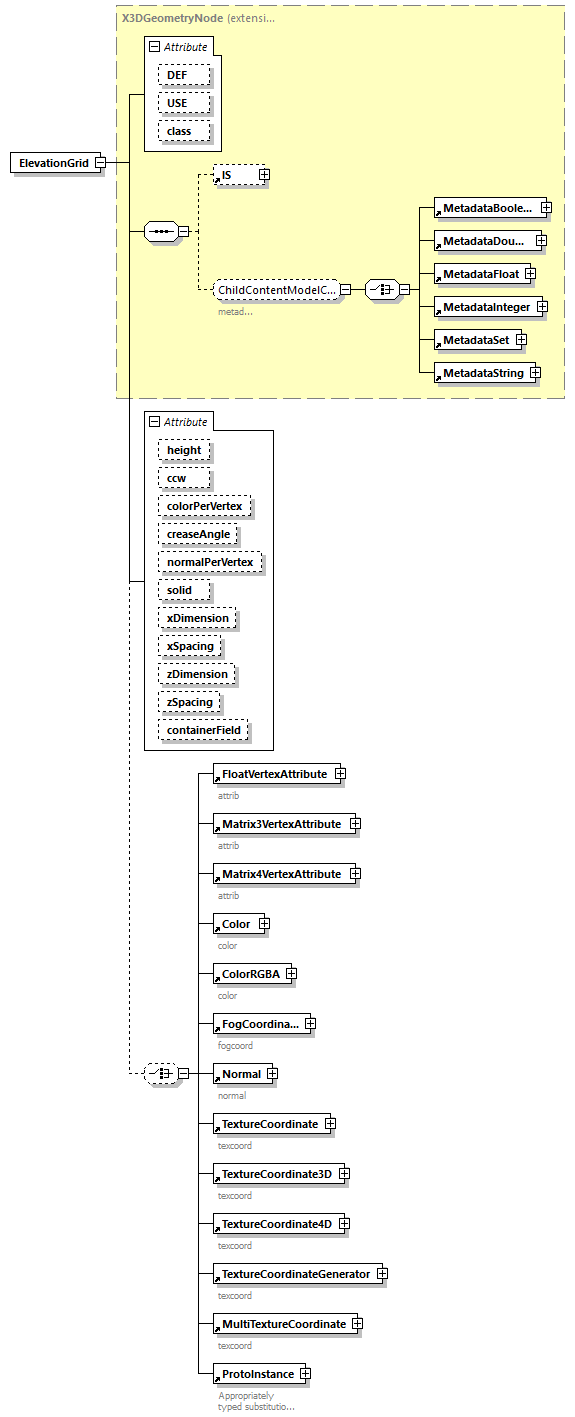

ElevationGrid  X3DTextureTransformNode  MFString
EspduTransform  X3DTimeDependentNode  MFTime
ExplosionEmitter  X3DTouchSensorNode  MFVec2d
EXPORT  X3DTriggerNode  MFVec2f
ExternProtoDeclare  X3DUrlObject  MFVec3d
Extrusion  X3DVertexAttributeNode  MFVec3f
field  X3DViewpointNode  MFVec4d
fieldValue  X3DViewportNode  MFVec4f
FillProperties  X3DVolumeDataNode  multiTextureFunctionValues
FloatVertexAttribute  X3DVolumeRenderStyleNode  multiTextureModeValues
Fog  multiTextureSourceValues
FogCoordinate  navigationTransitionTypeValues
FontStyle  navigationTypeValues

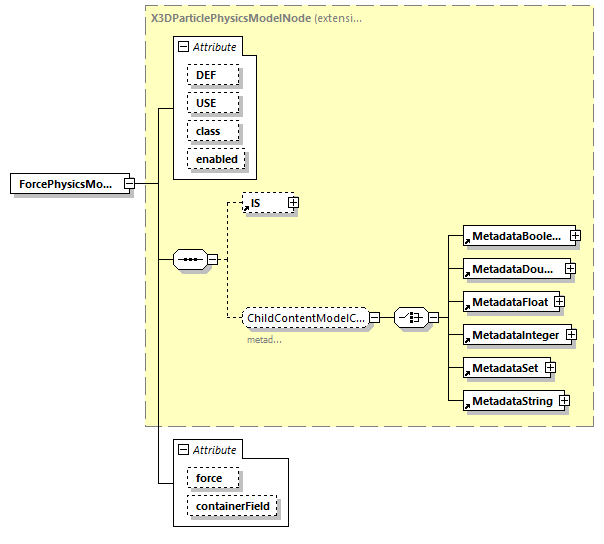

ForcePhysicsModel  networkModeChoices
GeneratedCubeMapTexture  outputOnlyAccessTypes
GeoCoordinate  particleSystemGeometryTypeValues
GeoElevationGrid  phaseFunctionValues
GeoLocation  pickableObjectTypeValues
GeoLOD  pickSensorMatchCriterionChoices
GeoMetadata  pickSensorSortOrderValues
GeoOrigin  profileNameChoices
GeoPositionInterpolator  projectionVolumeStyleTypeChoices
GeoProximitySensor  SFBool

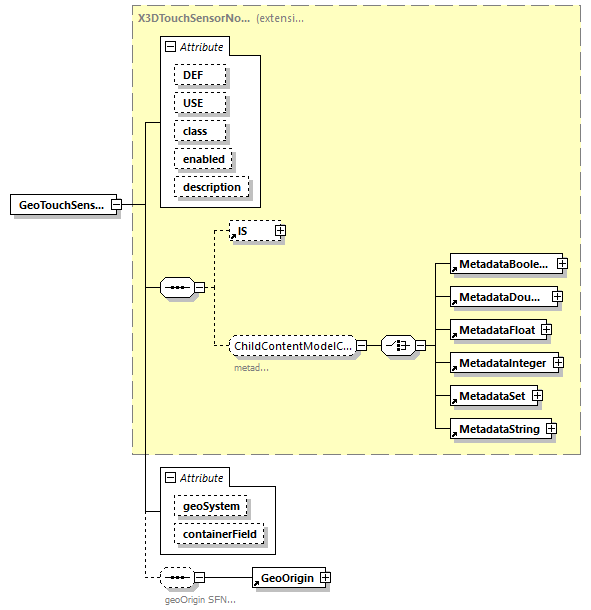

GeoTouchSensor  SFColor
GeoTransform  SFColorRGBA

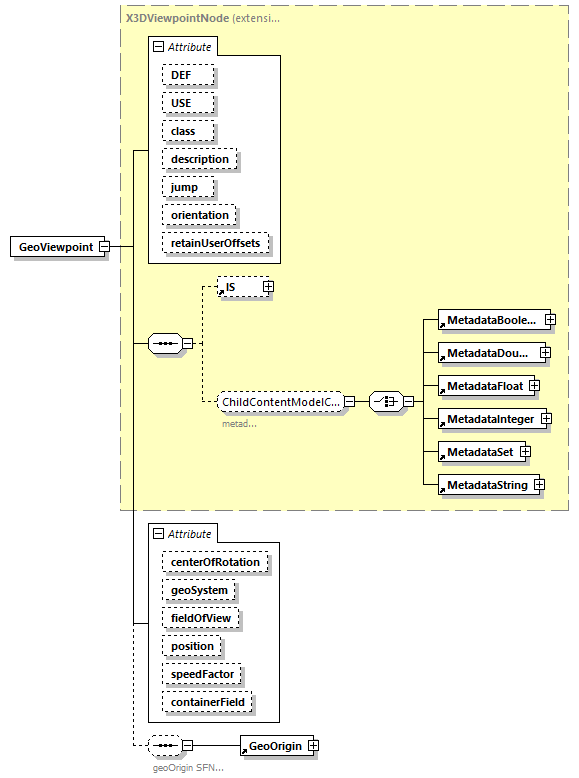

GeoViewpoint  SFDouble
Group  SFFloat
HAnimDisplacer  SFImage

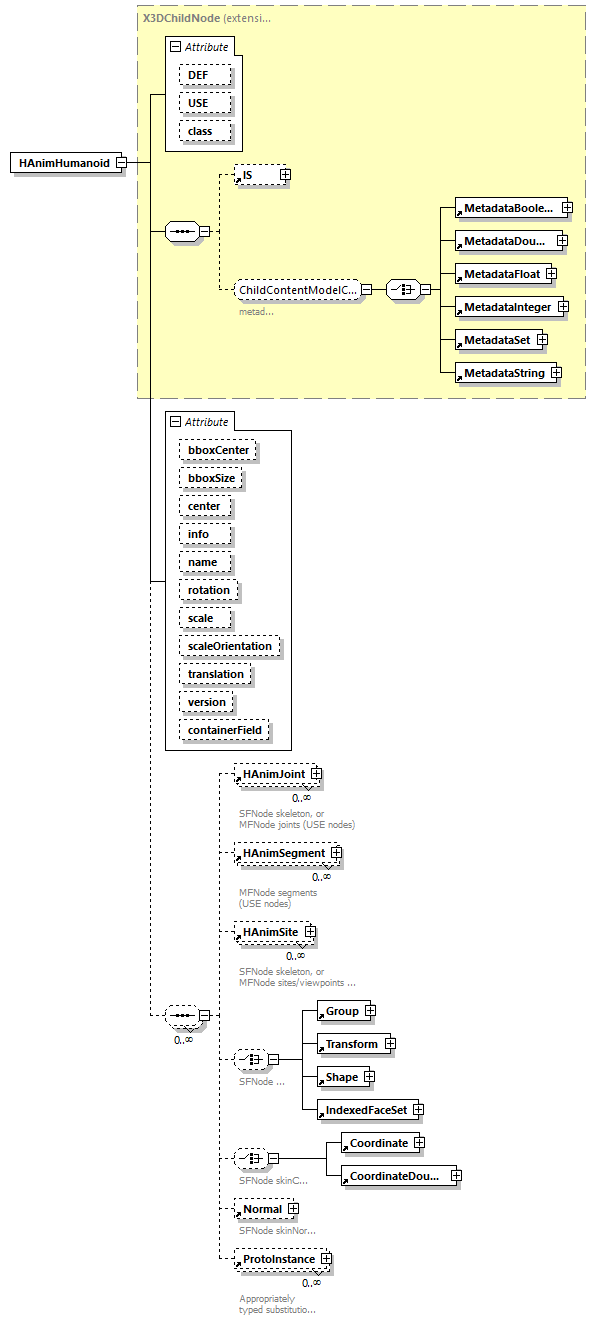

HAnimHumanoid  SFInt32

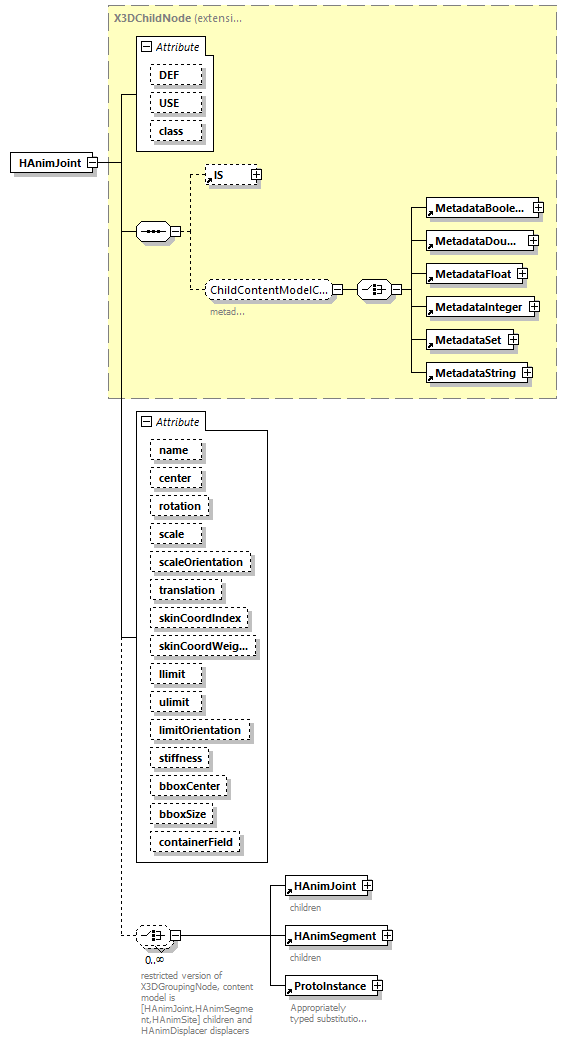

HAnimJoint  SFMatrix3d
HAnimSegment  SFMatrix3f
HAnimSite  SFMatrix4d
head  SFMatrix4f
ImageCubeMapTexture  SFNode
ImageTexture  SFRotation

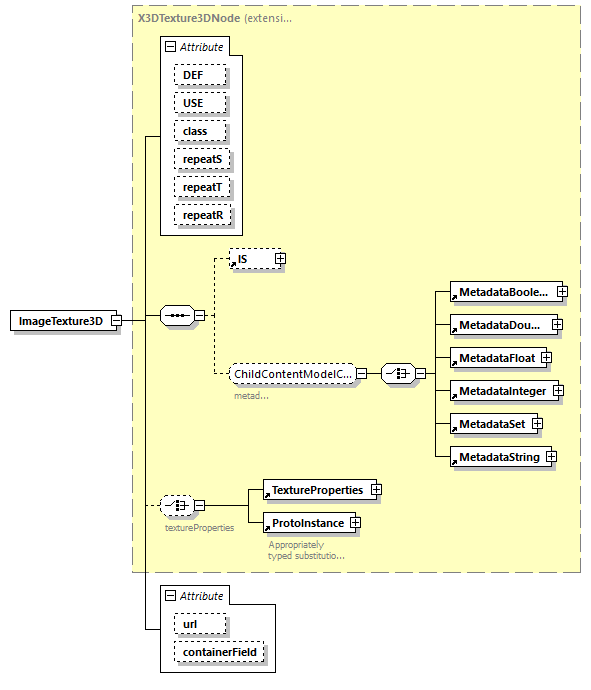

ImageTexture3D  SFString
IMPORT  SFTime

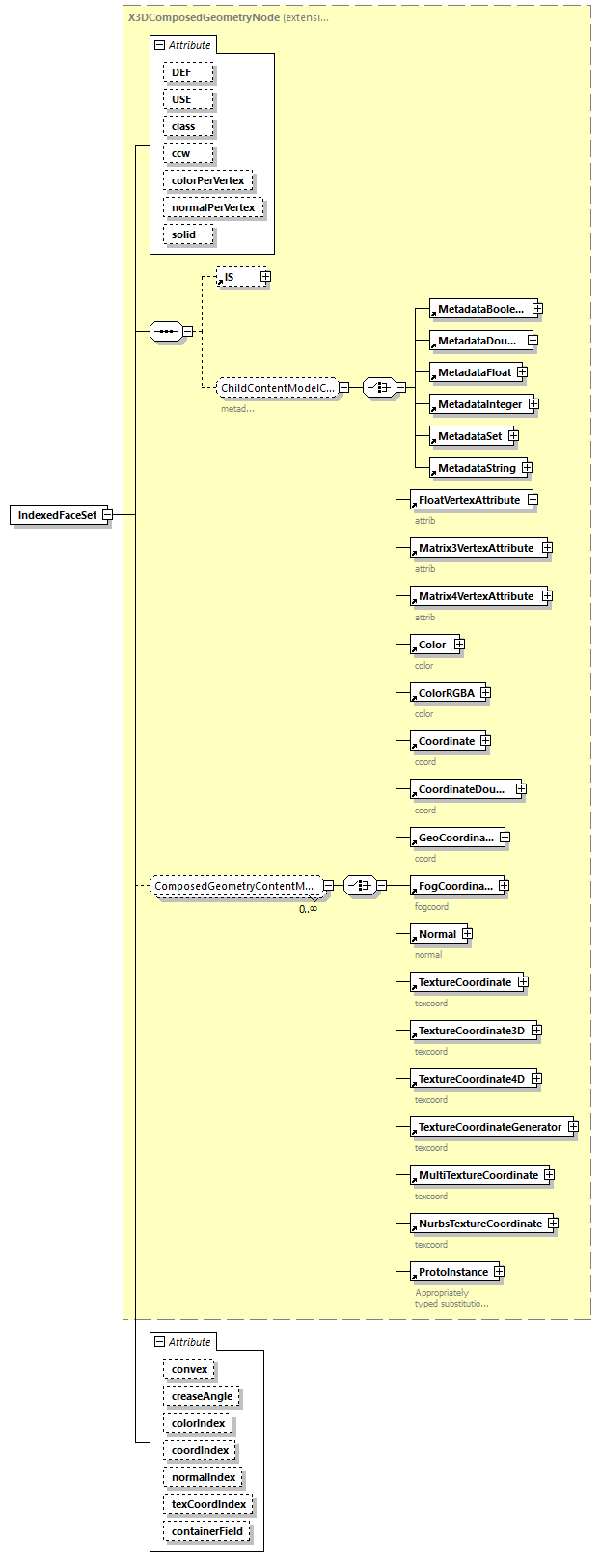

IndexedFaceSet  SFVec2d

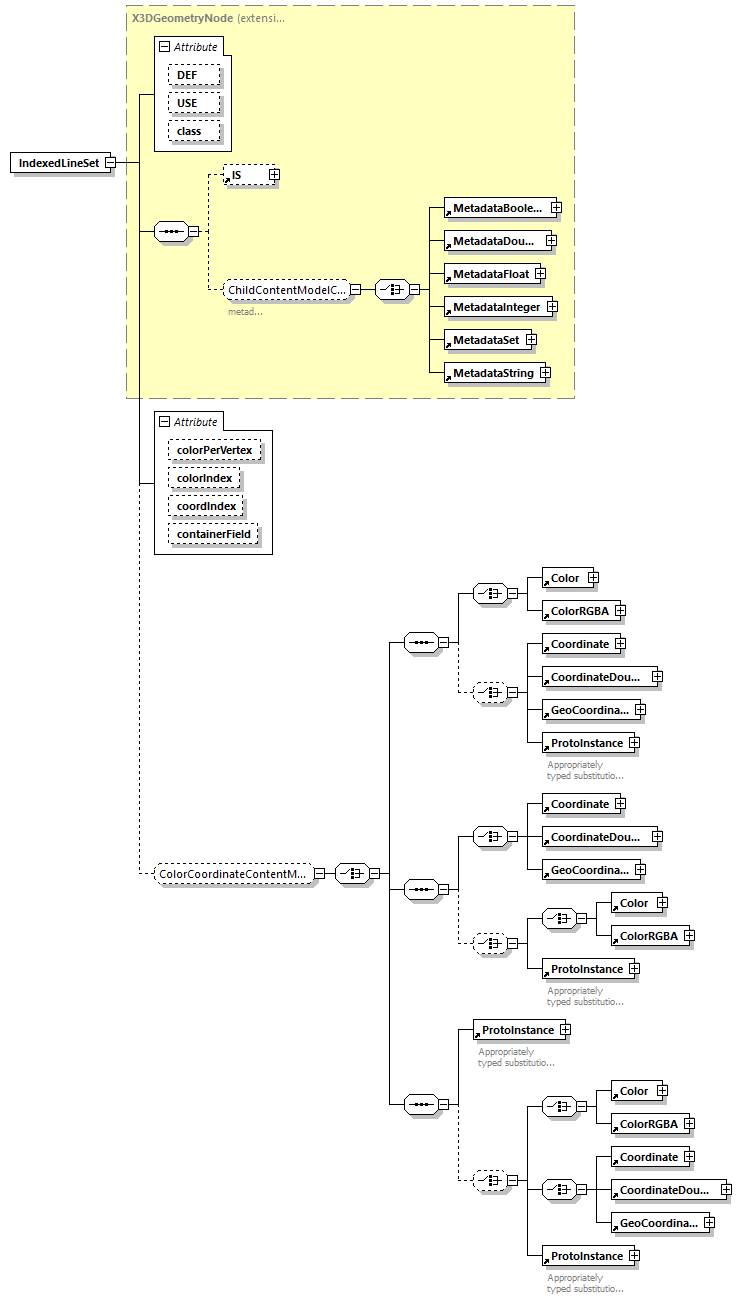

IndexedLineSet  SFVec2f

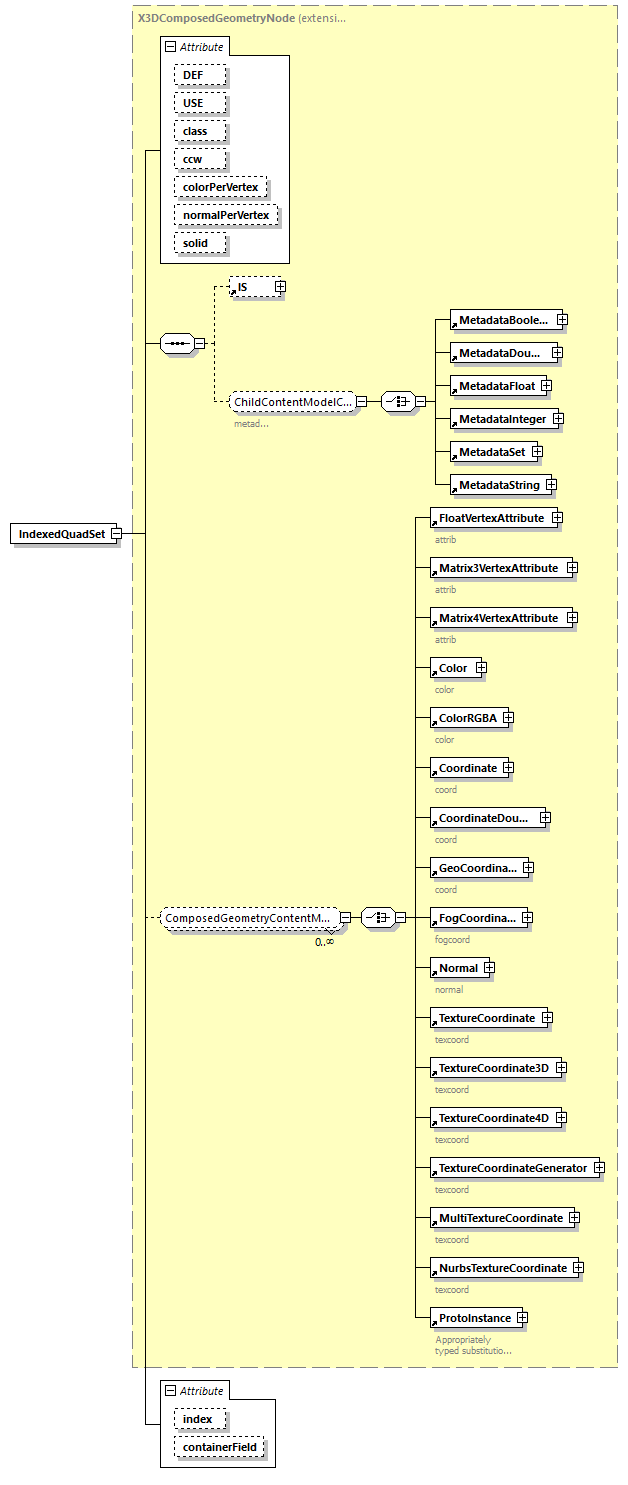

IndexedQuadSet  SFVec3d
IndexedTriangleFanSet  SFVec3f
IndexedTriangleSet  SFVec4d
IndexedTriangleStripSet  SFVec4f
Inline  shaderLanguageValues
IntegerSequencer  shaderPartTypeValues
IntegerTrigger  textureBoundaryModeChoices
IS  textureCompressionModeChoices

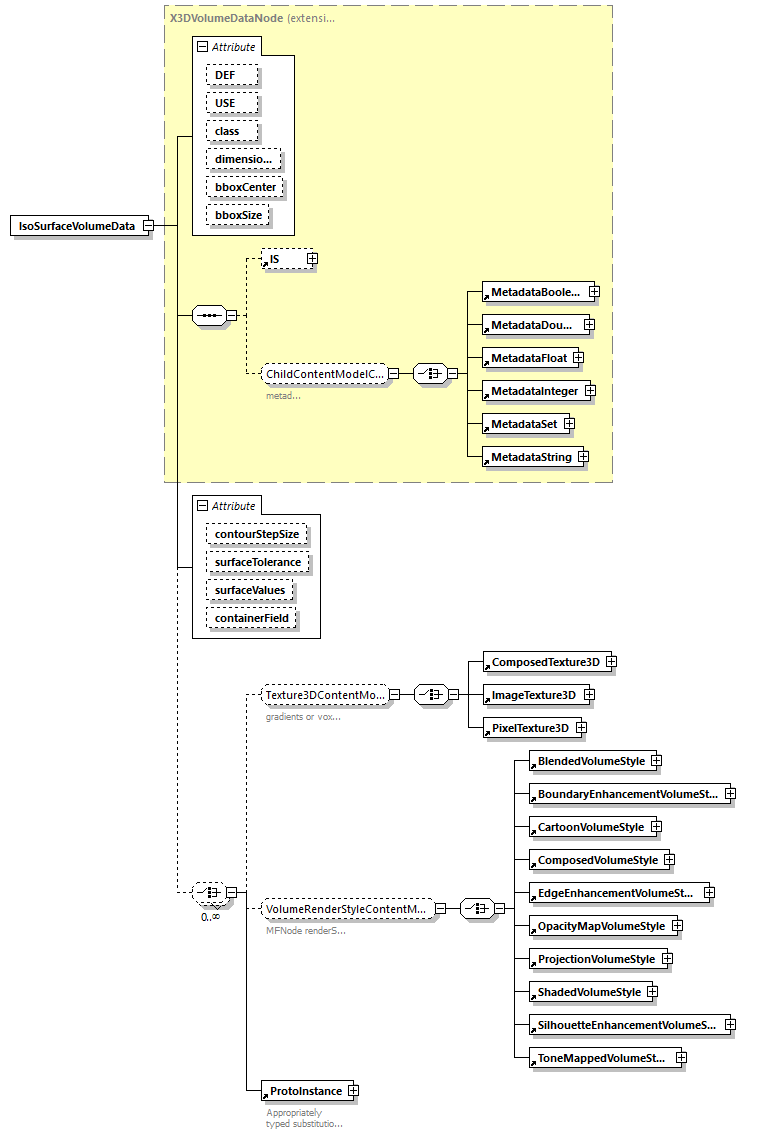

IsoSurfaceVolumeData  textureCoordinateGeneratorModeChoices
KeySensor  textureMagnificationModeChoices
Layer  textureMinificationModeChoices
LayerSet  unitCategoryChoices

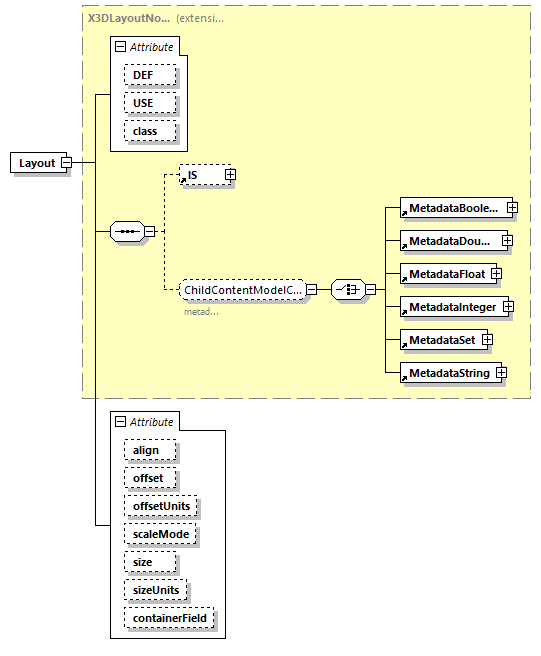

Layout  unitIntervalType
LayoutGroup  volumeRenderingWeightFunctionChoices
LayoutLayer  x3dVersionChoices
LinePickSensor
LineProperties
LineSet
LoadSensor
LocalFog
LOD
Material
Matrix3VertexAttribute
Matrix4VertexAttribute
meta
MetadataBoolean
MetadataDouble

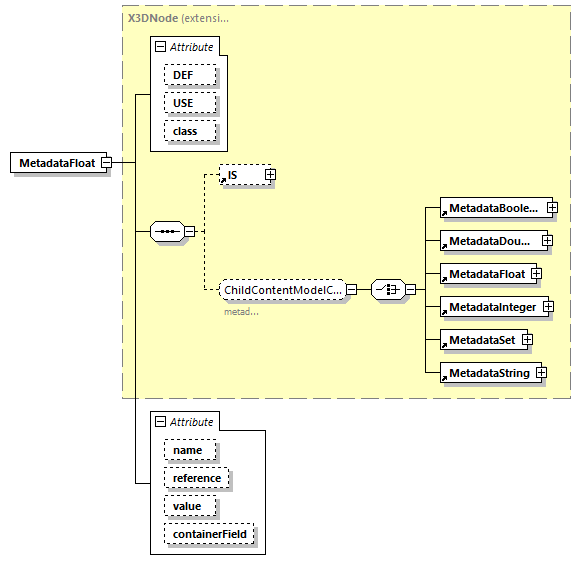

MetadataFloat

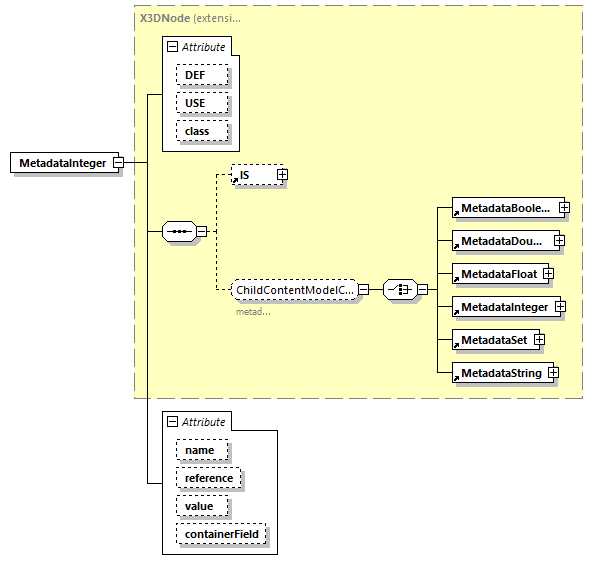

MetadataInteger
MetadataSet

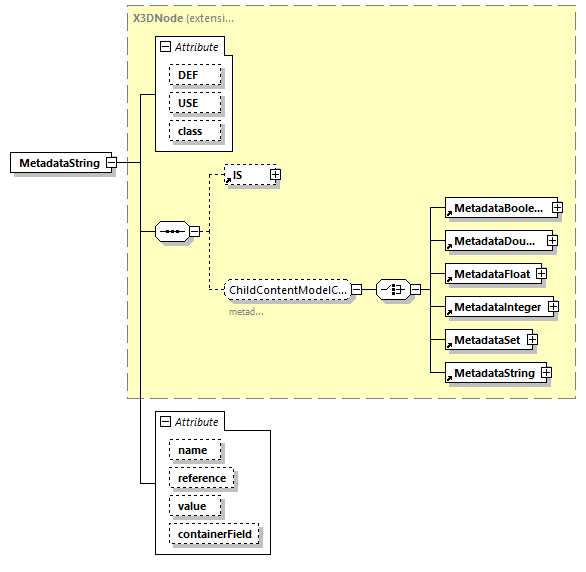

MetadataString
MotorJoint
MovieTexture
MultiTexture

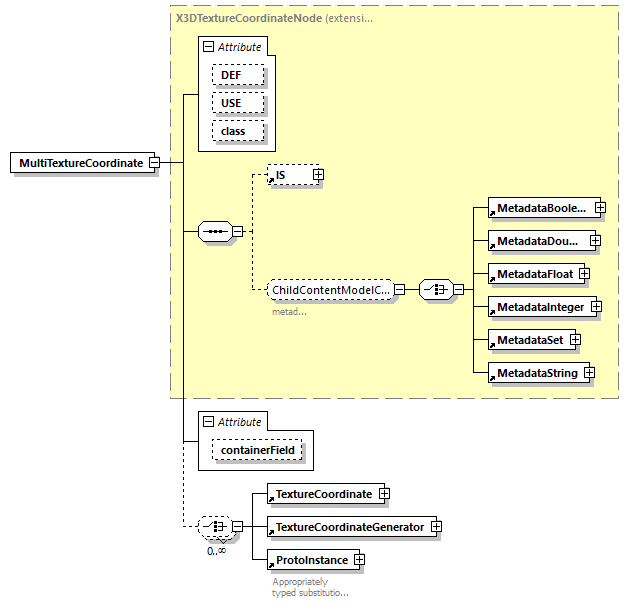

MultiTextureCoordinate
MultiTextureTransform
NavigationInfo

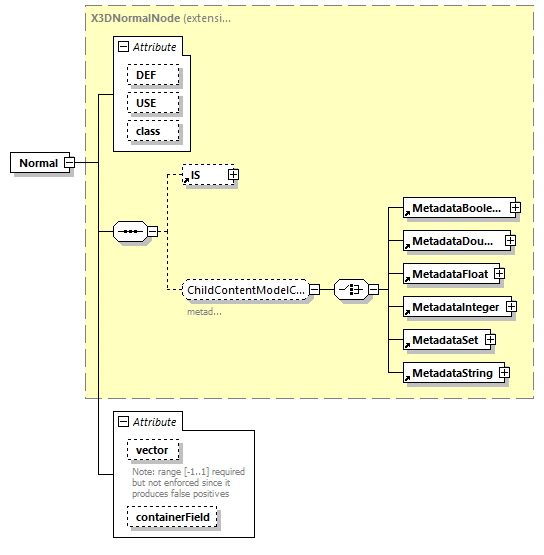

Normal

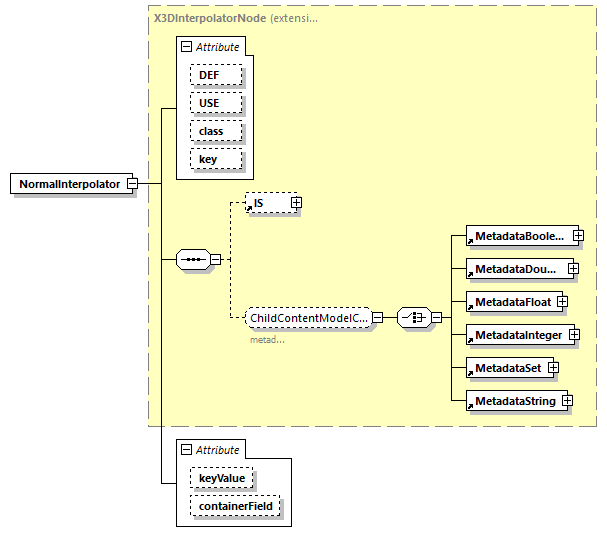

NormalInterpolator
NurbsCurve
NurbsCurve2D

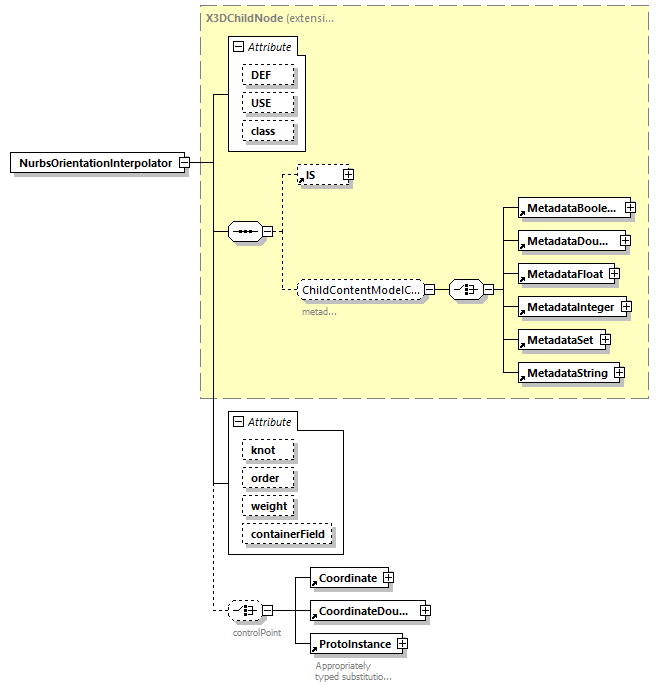

NurbsOrientationInterpolator
NurbsPatchSurface
NurbsPositionInterpolator
NurbsSet

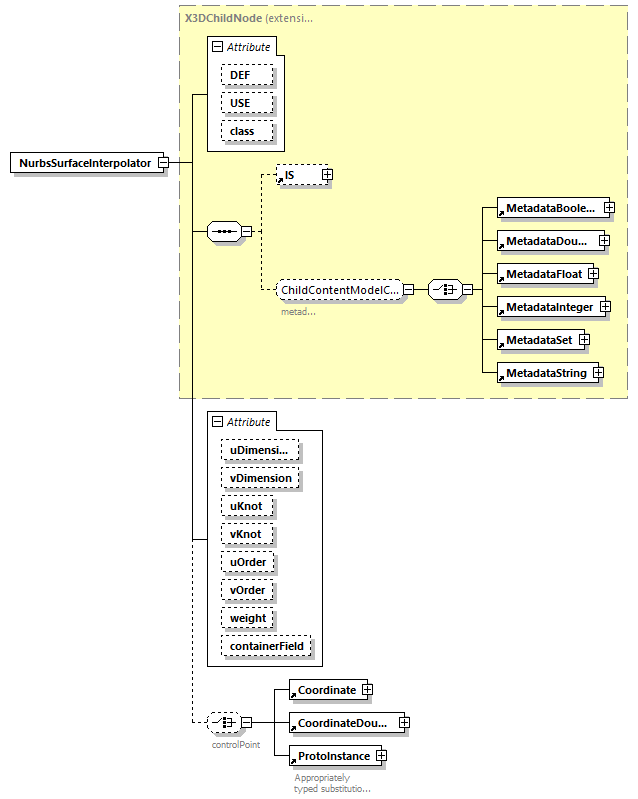

NurbsSurfaceInterpolator
NurbsSweptSurface
NurbsSwungSurface
NurbsTextureCoordinate

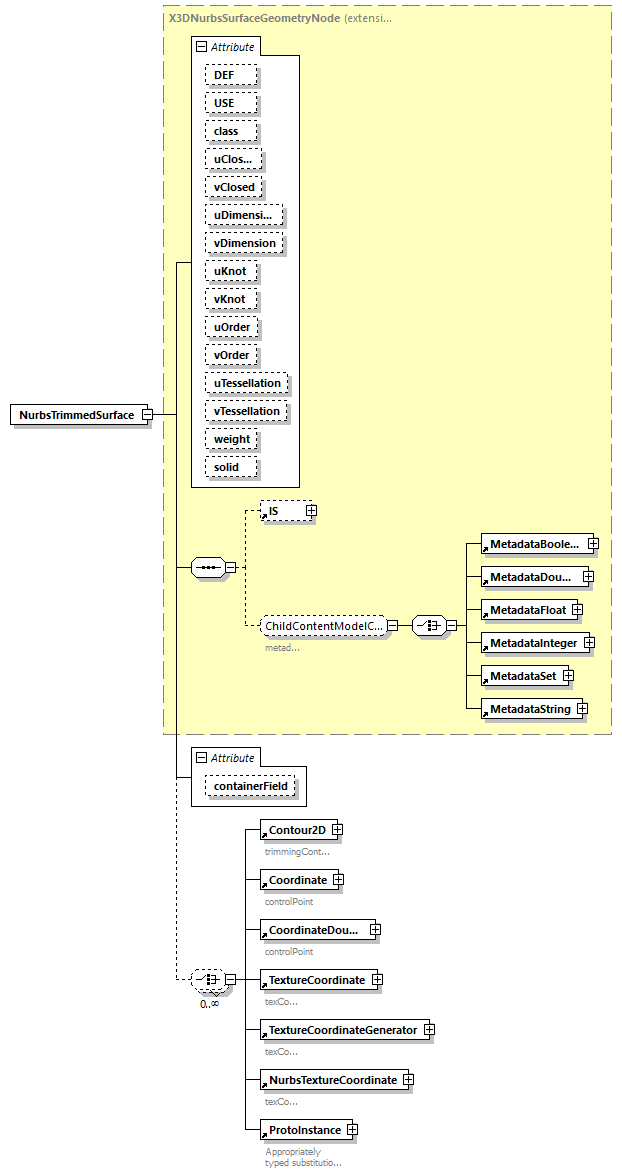

NurbsTrimmedSurface
OpacityMapVolumeStyle

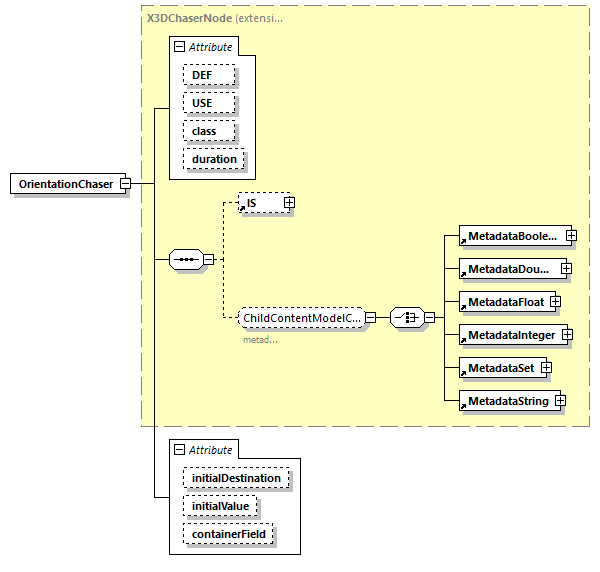

OrientationChaser
OrientationDamper
OrientationInterpolator
OrthoViewpoint
PackagedShader
ParticleSystem
PickableGroup
PixelTexture
PixelTexture3D

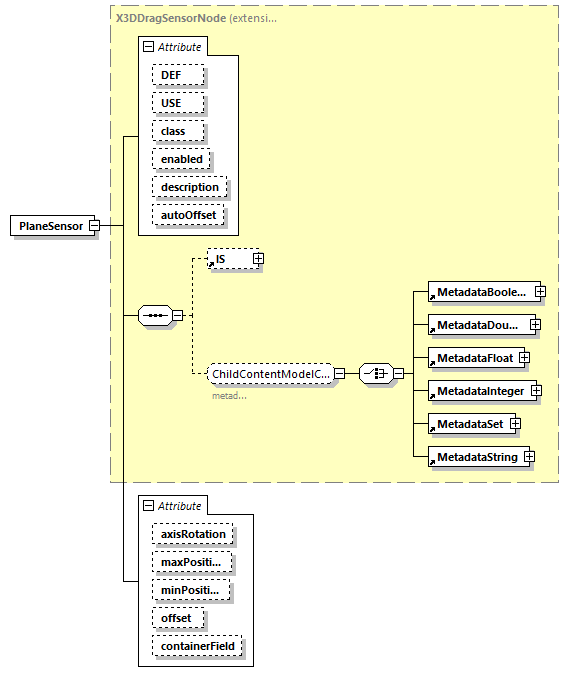

PlaneSensor

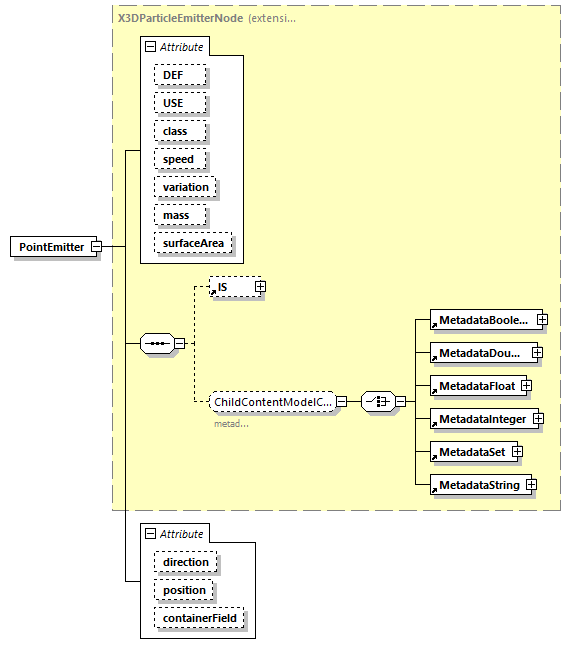

PointEmitter
PointLight
PointPickSensor
PointSet
Polyline2D
PolylineEmitter
Polypoint2D
PositionChaser
PositionChaser2D
PositionDamper
PositionDamper2D
PositionInterpolator
PositionInterpolator2D
PrimitivePickSensor
ProgramShader
ProjectionVolumeStyle
ProtoBody
ProtoDeclare

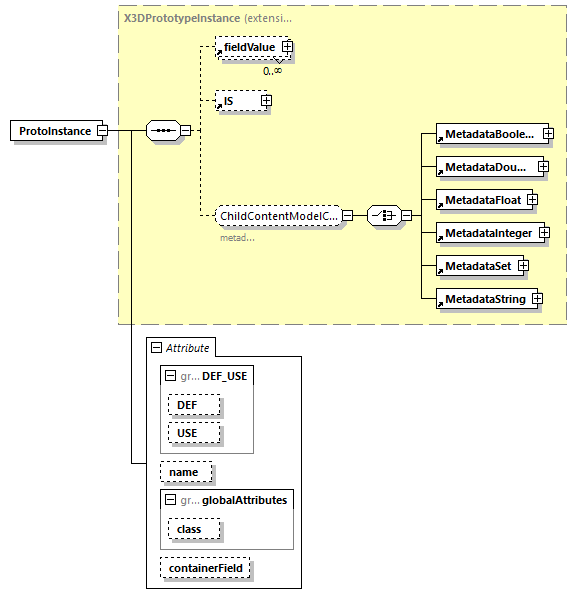

ProtoInstance
ProtoInterface

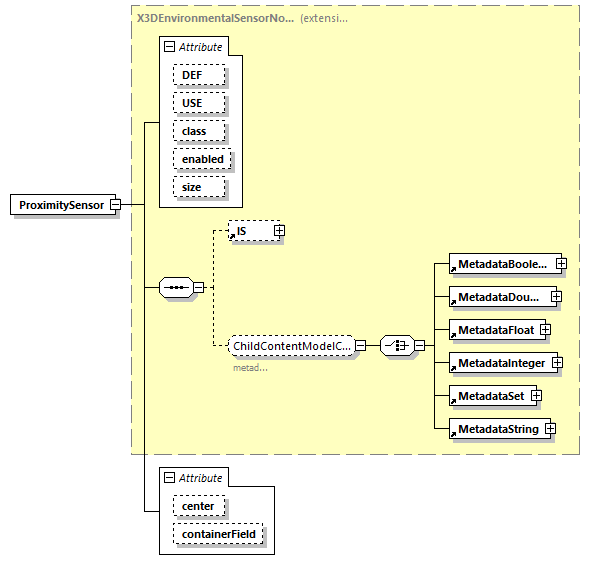

ProximitySensor
QuadSet
ReceiverPdu
Rectangle2D
RigidBody
RigidBodyCollection
ROUTE

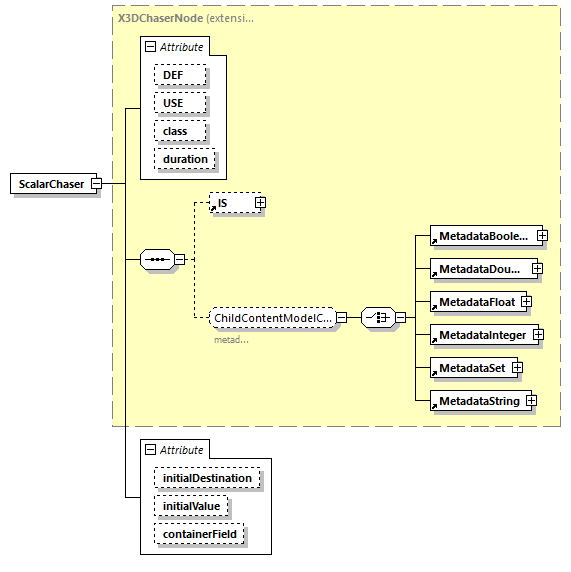

ScalarChaser
ScalarDamper
ScalarInterpolator
Scene

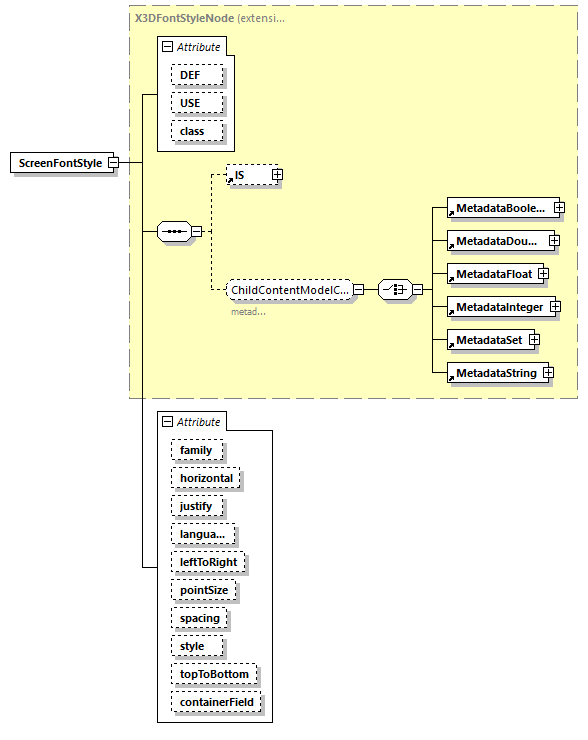

ScreenFontStyle
ScreenGroup

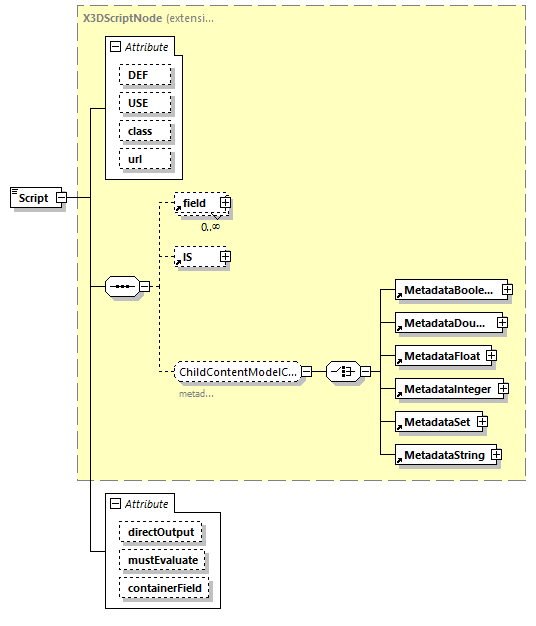

Script
SegmentedVolumeData

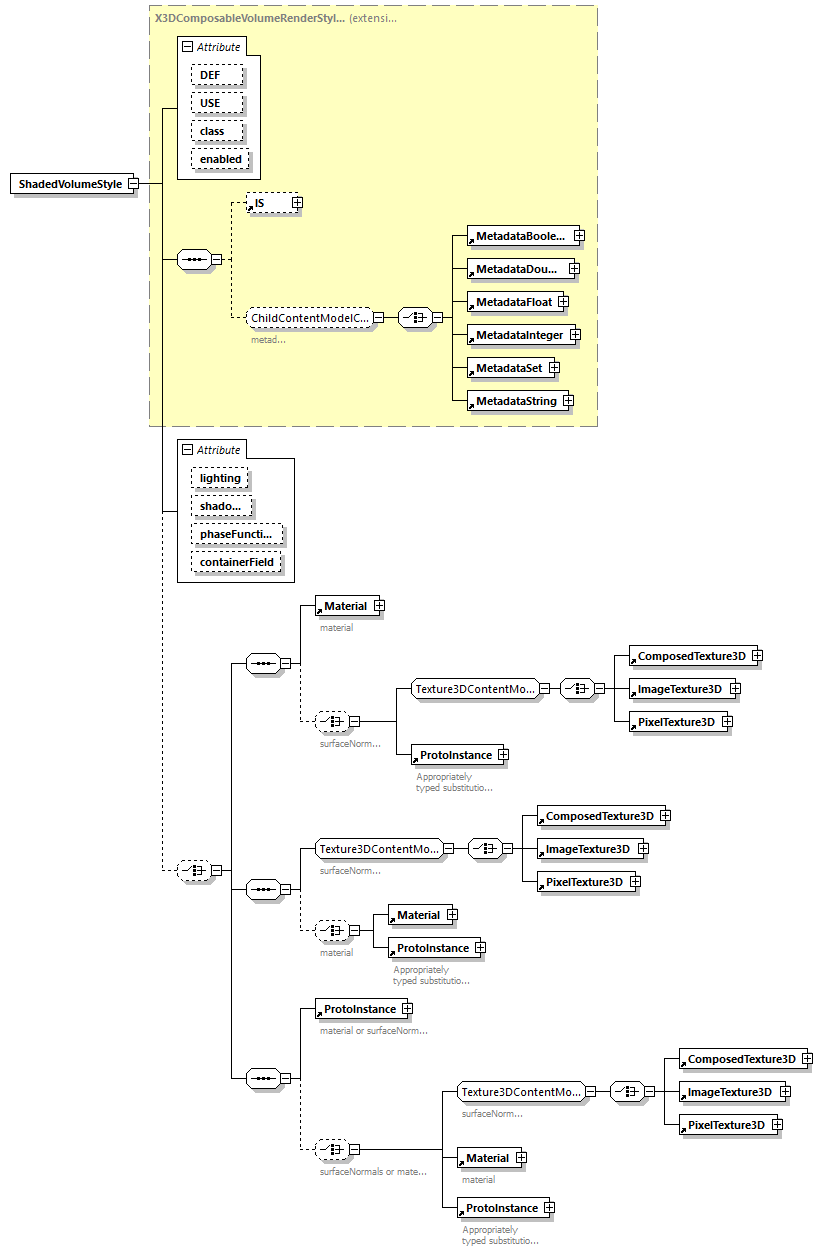

ShadedVolumeStyle
ShaderPart
ShaderProgram
Shape
SignalPdu
SilhouetteEnhancementVolumeStyle
SingleAxisHingeJoint
SliderJoint
Sound
Sphere
SphereSensor

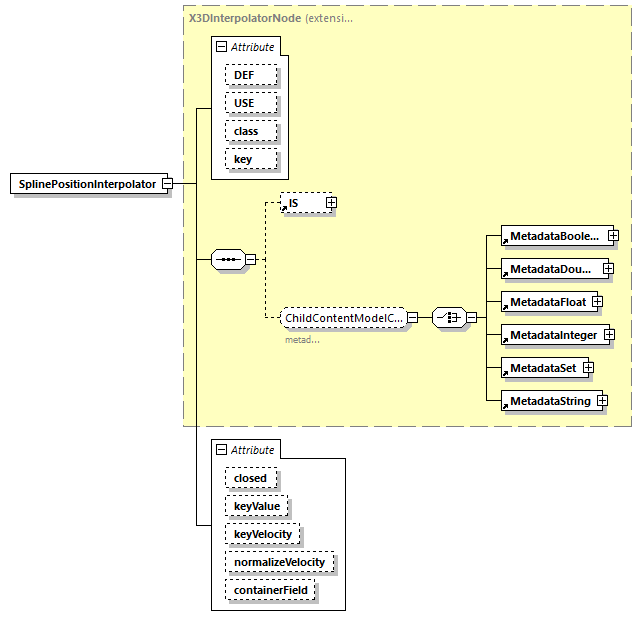

SplinePositionInterpolator
SplinePositionInterpolator2D
SplineScalarInterpolator
SpotLight

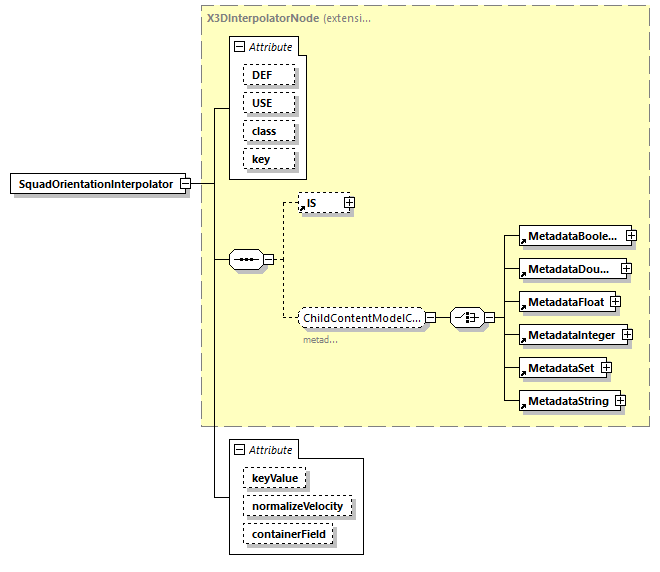

SquadOrientationInterpolator
StaticGroup
StringSensor
SurfaceEmitter
Switch
TexCoordChaser2D
TexCoordDamper2D
Text

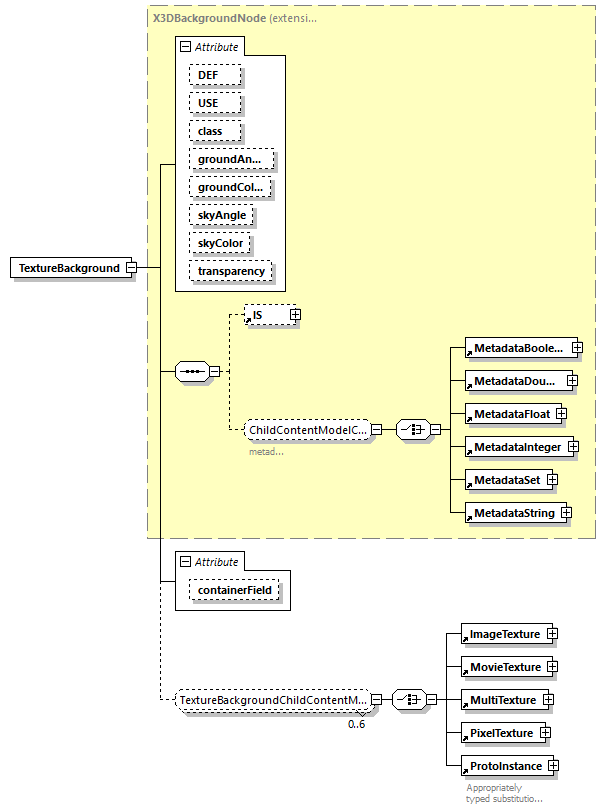

TextureBackground
TextureCoordinate
TextureCoordinate3D
TextureCoordinate4D
TextureCoordinateGenerator

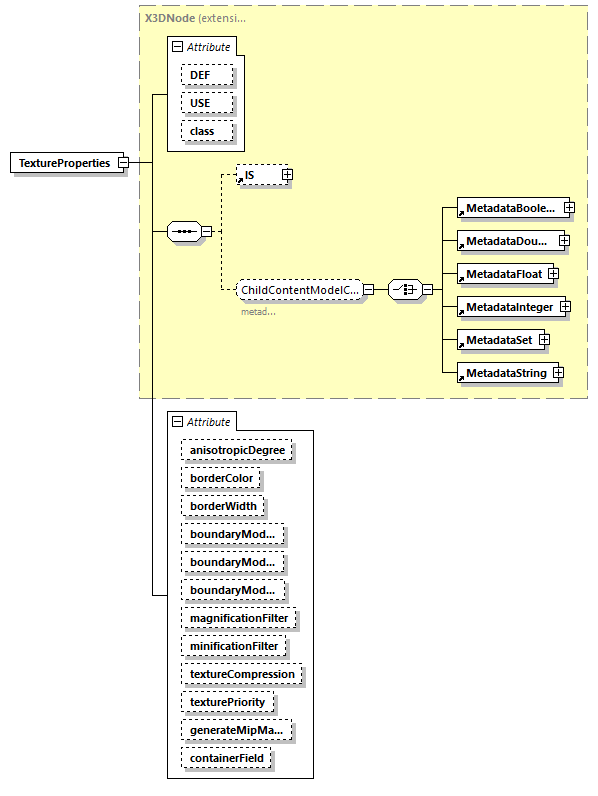

TextureProperties
TextureTransform

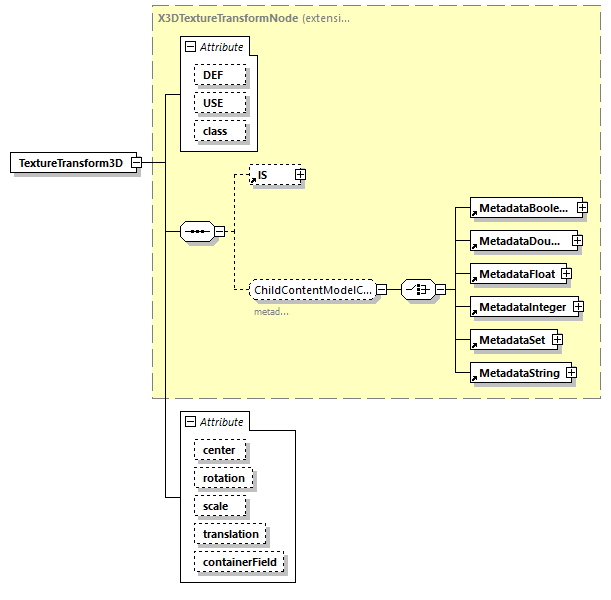

TextureTransform3D
TextureTransformMatrix3D
TimeSensor
TimeTrigger
ToneMappedVolumeStyle
TouchSensor
Transform

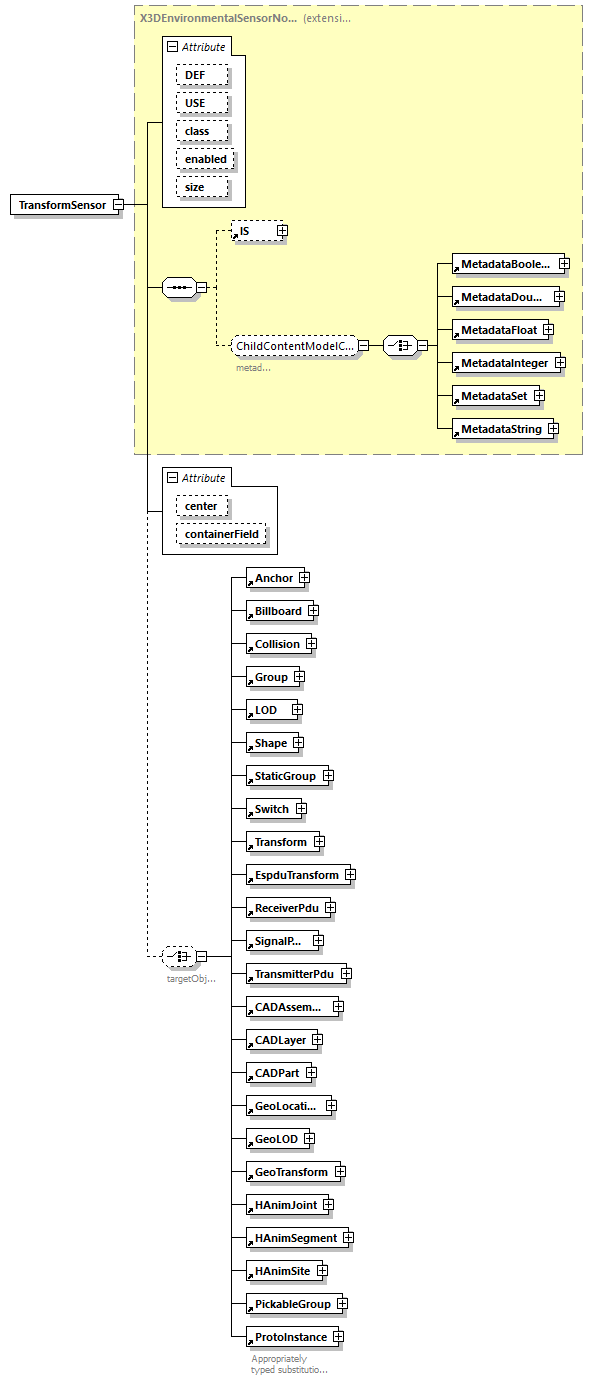

TransformSensor
TransmitterPdu
TriangleFanSet
TriangleSet

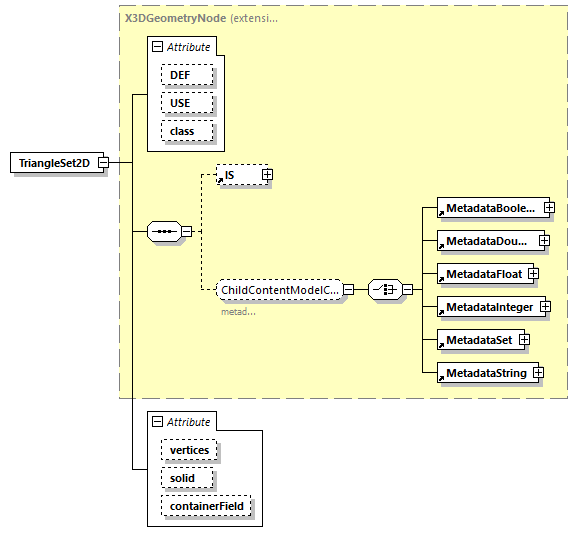

TriangleSet2D
TriangleStripSet

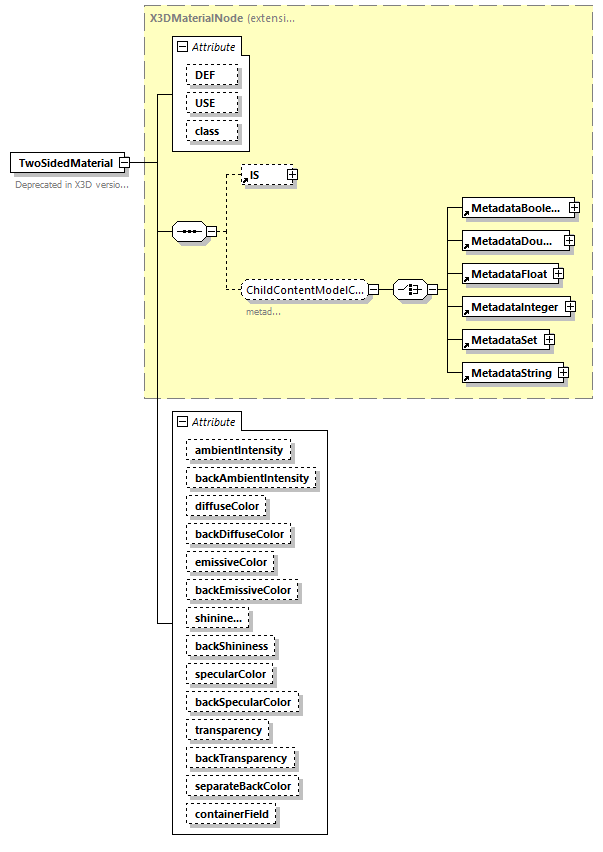

TwoSidedMaterial
unit

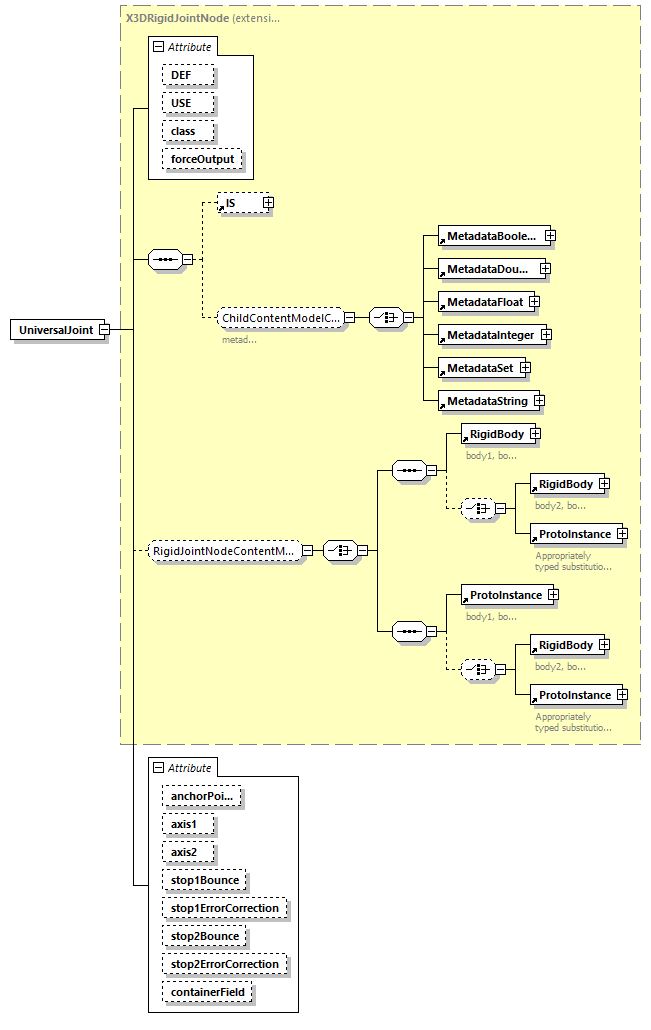

UniversalJoint
Viewpoint

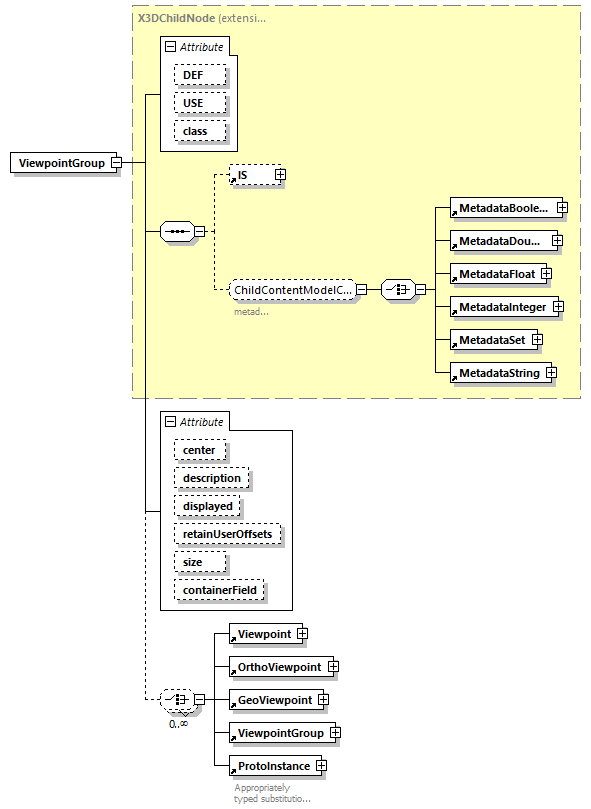

ViewpointGroup
Viewport
VisibilitySensor
VolumeData

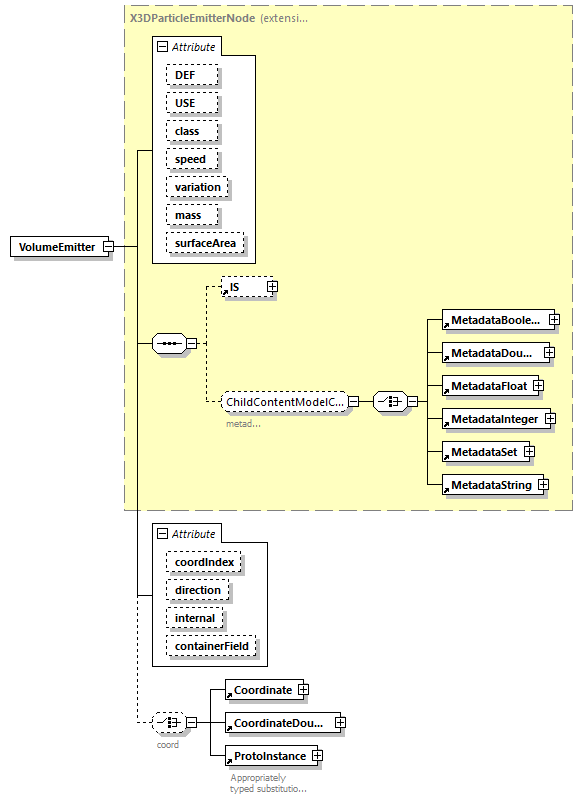

VolumeEmitter
VolumePickSensor

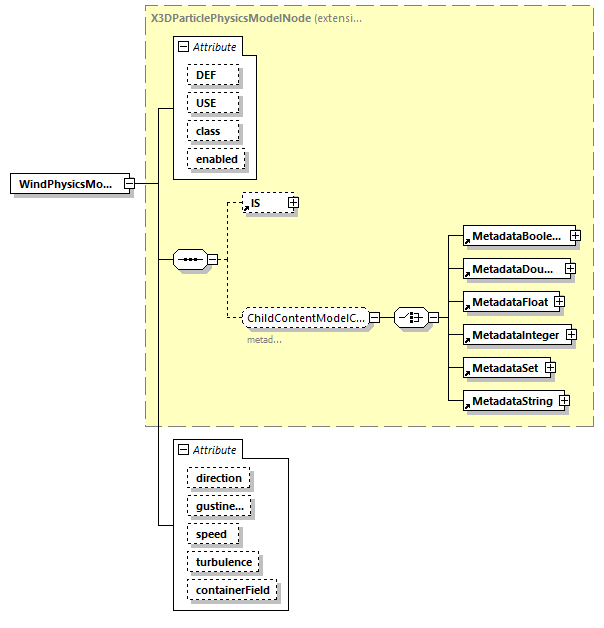

WindPhysicsModel
WorldInfo
X3D


schema location:  https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPublic.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Simple types
XvlShell  XvlShell.shellTypes


schema location:  https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPrivate.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com



element BTLx
diagram BTLx_2_1_0_p1.png
namespace https://www.design2machine.com
properties
content complex
children FileHistory Project
attributes
Name  Type  Use  Default  Fixed  Annotation
Version  derived by: xs:string  required
documentation
e.g. 1.0 or 1.0.2
Language  xs:string
documentation
language shortcut in compliance with ISO 639-1
annotation
documentation
Root element for BTLx data
source <xs:element name="BTLx">
  <xs:annotation>
    <xs:documentation>Root element for BTLx data</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="FileHistory" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>
            <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Project" type="ProjectType"/>
    </xs:sequence>
    <xs:attribute name="Version" use="required">
      <xs:annotation>
        <xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="2.1.0"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="Language" type="xs:string">
      <xs:annotation>
        <xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

attribute BTLx/@Version
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration 2.1.0
annotation
documentation
e.g. 1.0 or 1.0.2
source <xs:attribute name="Version" use="required">
  <xs:annotation>
    <xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="2.1.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute BTLx/@Language
type xs:string
annotation
documentation
language shortcut in compliance with ISO 639-1
source <xs:attribute name="Language" type="xs:string">
  <xs:annotation>
    <xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>
  </xs:annotation>
</xs:attribute>

element BTLx/FileHistory
diagram BTLx_2_1_0_p2.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children InitialExportProgram EditingProgram
source <xs:element name="FileHistory" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>
      <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BTLx/FileHistory/InitialExportProgram
diagram BTLx_2_1_0_p3.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

element BTLx/FileHistory/EditingProgram
diagram BTLx_2_1_0_p4.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

element BTLx/Project
diagram BTLx_2_1_0_p5.png
namespace https://www.design2machine.com
type ProjectType
properties
content complex
children UserAttributes Rawparts Parts Composites
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Number  xs:string
GUID  GUIDType
Section  xs:string
ListName  xs:string
Customer  xs:string
Architect  xs:string
Editor  xs:string
DeliveryDate  xs:date
documentation
in compliance with ISO 8601
SourceFile  xs:string
ProcessingQuality  ProcessingQualityType    automatic
Recess  RecessType    automatic
Comment  xs:string
source <xs:element name="Project" type="ProjectType"/>

complexType AlignmentType
diagram BTLx_2_1_0_p6.png
namespace https://www.design2machine.com
used by
element PartType/Alignment
attributes
Name  Type  Use  Default  Fixed  Annotation
Location  LocationType  required
Endtype  EndType  required
annotation
documentation
Definition of an alignment in a wall
source <xs:complexType name="AlignmentType">
  <xs:annotation>
    <xs:documentation>Definition of an alignment in a wall</xs:documentation>
  </xs:annotation>
  <xs:attribute name="Location" type="LocationType" use="required"/>
  <xs:attribute name="Endtype" type="EndType" use="required"/>
</xs:complexType>

attribute AlignmentType/@Location
type LocationType
properties
use required
facets
Kind Value Annotation
enumeration bottomRail
enumeration topRail
enumeration bottomRailAngled
enumeration topRailAngled
enumeration horizontalComponent
enumeration verticalComponent
enumeration angledComponent
source <xs:attribute name="Location" type="LocationType" use="required"/>

attribute AlignmentType/@Endtype
type EndType
properties
use required
facets
Kind Value Annotation
enumeration rectangularCut
enumeration angledCut
enumeration doubleCut
source <xs:attribute name="Endtype" type="EndType" use="required"/>

complexType ArcType
diagram BTLx_2_1_0_p7.png
namespace https://www.design2machine.com
type extension of LineType
properties
base LineType
children EndPoint PointOnArc
used by
element SimpleContourType/Arc
attributes
Name  Type  Use  Default  Fixed  Annotation
Inclination  InclinationType
documentation
not relevant for dual contour
Recess  ContourRecessType
documentation
only for free, saw and mill contour
Process  BooleanType
FaceLimited  BooleanType    yes
documentation
only for saw and mill contour
NailSpacing  LengthType
documentation
only for nail, cramp and screw contour
CrampAngleRef  CrampAngleRefType    segment
documentation
only for cramp contour
CrampAngle  AngleNType
documentation
only for cramp contour
ScrewDiameter  DiameterType
documentation
only for screw contour
annotation
documentation
Definition of a contour arc
source <xs:complexType name="ArcType">
  <xs:annotation>
    <xs:documentation>Definition of a contour arc</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LineType">
      <xs:sequence>
        <xs:element name="PointOnArc" type="CoordinateType"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ArcType/PointOnArc
diagram BTLx_2_1_0_p8.png
namespace https://www.design2machine.com
type CoordinateType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
source <xs:element name="PointOnArc" type="CoordinateType"/>

complexType BaseContourApType
diagram BTLx_2_1_0_p9.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Contour Apertures
used by
complexTypes GlueAreaType InsulationAreaType PlaningAreaType PlasterAreaType
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Defintion of a base contour with apertures
source <xs:complexType name="BaseContourApType">
  <xs:annotation>
    <xs:documentation>Defintion of a base contour with apertures</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingType">
      <xs:sequence>
        <xs:element name="Contour" type="SimpleContourType"/>
        <xs:element name="Apertures" minOccurs="0">
          <xs:complexType>
            <xs:sequence maxOccurs="unbounded">
              <xs:element name="Aperture" type="SimpleContourType"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element BaseContourApType/Contour
diagram BTLx_2_1_0_p10.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Contour" type="SimpleContourType"/>

element BaseContourApType/Apertures
diagram BTLx_2_1_0_p11.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Aperture
source <xs:element name="Apertures" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="Aperture" type="SimpleContourType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BaseContourApType/Apertures/Aperture
diagram BTLx_2_1_0_p12.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Aperture" type="SimpleContourType"/>

complexType BaseContourType
diagram BTLx_2_1_0_p13.png
namespace https://www.design2machine.com
children Contour DualContour
used by
elements BaseDContourApType/Apertures/Aperture OutlineType/Apertures/Aperture
complexType OutlineType
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
annotation
documentation
Defintion of a base contour (either a contour or a contour with associated contour)
source <xs:complexType name="BaseContourType">
  <xs:annotation>
    <xs:documentation>Defintion of a base contour (either a contour or a contour with associated contour)</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="Contour" type="SimpleContourType"/>
    <xs:element name="DualContour" type="DualContourType"/>
  </xs:choice>
  <xs:attribute name="Process" type="BooleanType" default="no"/>
</xs:complexType>

attribute BaseContourType/@Process
type BooleanType
properties
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Process" type="BooleanType" default="no"/>

element BaseContourType/Contour
diagram BTLx_2_1_0_p14.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Contour" type="SimpleContourType"/>

element BaseContourType/DualContour
diagram BTLx_2_1_0_p15.png
namespace https://www.design2machine.com
type DualContourType
properties
content complex
children PrincipalContour AssociatedContour
source <xs:element name="DualContour" type="DualContourType"/>

complexType BaseDContourApType
diagram BTLx_2_1_0_p16.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Contour DualContour Apertures
used by
complexTypes FreeContourType MillContourType SawContourType
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Defintion of a base contour with apertures (either a contour or a contour with associated contour)
source <xs:complexType name="BaseDContourApType">
  <xs:annotation>
    <xs:documentation>Defintion of a base contour with apertures (either a contour or a contour with associated contour)</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingType">
      <xs:sequence>
        <xs:choice>
          <xs:element name="Contour">
            <xs:complexType>
              <xs:complexContent>
                <xs:extension base="SimpleContourType">
                  <xs:sequence minOccurs="0">
                    <xs:element name="MachiningLimits">
                      <xs:complexType>
                        <xs:complexContent>
                          <xs:restriction base="MachiningLimitType">
                            <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
                            <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
                          </xs:restriction>
                        </xs:complexContent>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                  <xs:attribute name="DepthBounded" type="BooleanType" default="no"/>
                  <xs:attribute name="Depth" type="LengthType" default="0.0"/>
                  <xs:attribute name="Inclination" type="InclinationType" default="0.0"/>
                </xs:extension>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="DualContour">
            <xs:complexType>
              <xs:complexContent>
                <xs:extension base="DualContourType">
                  <xs:sequence minOccurs="0">
                    <xs:element name="MachiningLimits">
                      <xs:complexType>
                        <xs:complexContent>
                          <xs:restriction base="MachiningLimitType">
                            <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
                            <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
                          </xs:restriction>
                        </xs:complexContent>
                      </xs:complexType>
                    </xs:element>
                  </xs:sequence>
                </xs:extension>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
        </xs:choice>
        <xs:element name="Apertures" minOccurs="0">
          <xs:complexType>
            <xs:sequence maxOccurs="unbounded">
              <xs:element name="Aperture" type="BaseContourType"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element BaseDContourApType/Contour
diagram BTLx_2_1_0_p17.png
namespace https://www.design2machine.com
type extension of SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS MachiningLimits
attributes
Name  Type  Use  Default  Fixed  Annotation
DepthBounded  BooleanType    no
Depth  LengthType    0.0
Inclination  InclinationType    0.0
source <xs:element name="Contour">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SimpleContourType">
        <xs:sequence minOccurs="0">
          <xs:element name="MachiningLimits">
            <xs:complexType>
              <xs:complexContent>
                <xs:restriction base="MachiningLimitType">
                  <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
                  <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
                </xs:restriction>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="DepthBounded" type="BooleanType" default="no"/>
        <xs:attribute name="Depth" type="LengthType" default="0.0"/>
        <xs:attribute name="Inclination" type="InclinationType" default="0.0"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute BaseDContourApType/Contour/@DepthBounded
type BooleanType
properties
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="DepthBounded" type="BooleanType" default="no"/>

attribute BaseDContourApType/Contour/@Depth
type LengthType
properties
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100000.0
source <xs:attribute name="Depth" type="LengthType" default="0.0"/>

attribute BaseDContourApType/Contour/@Inclination
type InclinationType
properties
default 0.0
facets
Kind Value Annotation
minInclusive -89.9
maxInclusive 89.9
source <xs:attribute name="Inclination" type="InclinationType" default="0.0"/>

element BaseDContourApType/Contour/MachiningLimits
diagram BTLx_2_1_0_p18.png
namespace https://www.design2machine.com
type restriction of MachiningLimitType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FaceLimitedStart  BooleanType  optional  yes
FaceLimitedEnd  BooleanType  optional  yes
FaceLimitedFront  BooleanType  optional  yes
FaceLimitedBack  BooleanType  optional  yes
FaceLimitedTop  BooleanType  optional  no
FaceLimitedBottom  BooleanType  optional  yes
source <xs:element name="MachiningLimits">
  <xs:complexType>
    <xs:complexContent>
      <xs:restriction base="MachiningLimitType">
        <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
        <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
      </xs:restriction>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute BaseDContourApType/Contour/MachiningLimits/@FaceLimitedTop
type BooleanType
properties
use optional
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

attribute BaseDContourApType/Contour/MachiningLimits/@FaceLimitedBottom
type BooleanType
properties
use optional
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

element BaseDContourApType/DualContour
diagram BTLx_2_1_0_p19.png
namespace https://www.design2machine.com
type extension of DualContourType
properties
content complex
children PrincipalContour AssociatedContour MachiningLimits
source <xs:element name="DualContour">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DualContourType">
        <xs:sequence minOccurs="0">
          <xs:element name="MachiningLimits">
            <xs:complexType>
              <xs:complexContent>
                <xs:restriction base="MachiningLimitType">
                  <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
                  <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
                </xs:restriction>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element BaseDContourApType/DualContour/MachiningLimits
diagram BTLx_2_1_0_p20.png
namespace https://www.design2machine.com
type restriction of MachiningLimitType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FaceLimitedStart  BooleanType  optional  yes
FaceLimitedEnd  BooleanType  optional  yes
FaceLimitedFront  BooleanType  optional  yes
FaceLimitedBack  BooleanType  optional  yes
FaceLimitedTop  BooleanType  optional  no
FaceLimitedBottom  BooleanType  optional  yes
source <xs:element name="MachiningLimits">
  <xs:complexType>
    <xs:complexContent>
      <xs:restriction base="MachiningLimitType">
        <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>
        <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>
      </xs:restriction>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute BaseDContourApType/DualContour/MachiningLimits/@FaceLimitedTop
type BooleanType
properties
use optional
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

attribute BaseDContourApType/DualContour/MachiningLimits/@FaceLimitedBottom
type BooleanType
properties
use optional
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

element BaseDContourApType/Apertures
diagram BTLx_2_1_0_p21.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Aperture
source <xs:element name="Apertures" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="Aperture" type="BaseContourType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BaseDContourApType/Apertures/Aperture
diagram BTLx_2_1_0_p22.png
namespace https://www.design2machine.com
type BaseContourType
properties
content complex
children Contour DualContour
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
source <xs:element name="Aperture" type="BaseContourType"/>

complexType BirdsMouthType
diagram BTLx_2_1_0_p23.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Orientation StartX StartY StartDepth Angle Inclination1 Inclination2 Depth Width WidthCounterPartLimited WidthCounterPart HeightCounterPartLimited HeightCounterPart FaceLimitedFront FaceLimitedBack LeadAngleParallel LeadAngle LeadInclinationParallel LeadInclination RafterNailHole
used by
element ProcessingsType/BirdsMouth
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Definition of a birds mouth
source <xs:complexType name="BirdsMouthType">
  <xs:annotation>
    <xs:documentation>Definition of a birds mouth</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingType">
      <xs:sequence>
        <xs:element name="Orientation" type="OrientationType"/>
        <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>
        <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>
        <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>
        <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>
        <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>
        <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>
        <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>
        <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>
        <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>
        <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element BirdsMouthType/Orientation
diagram BTLx_2_1_0_p24.png
namespace https://www.design2machine.com
type OrientationType
properties
content simple
facets
Kind Value Annotation
enumeration start
enumeration end
source <xs:element name="Orientation" type="OrientationType"/>

element BirdsMouthType/StartX
diagram BTLx_2_1_0_p25.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartY
diagram BTLx_2_1_0_p26.png
namespace https://www.design2machine.com
type WidthNType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -50000.0
maxInclusive 50000.0
source <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartDepth
diagram BTLx_2_1_0_p27.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Angle
diagram BTLx_2_1_0_p28.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/Inclination1
diagram BTLx_2_1_0_p29.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 45.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

element BirdsMouthType/Inclination2
diagram BTLx_2_1_0_p30.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 135.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

element BirdsMouthType/Depth
diagram BTLx_2_1_0_p31.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Width
diagram BTLx_2_1_0_p32.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

element BirdsMouthType/WidthCounterPartLimited
diagram BTLx_2_1_0_p33.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/WidthCounterPart
diagram BTLx_2_1_0_p34.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/HeightCounterPartLimited
diagram BTLx_2_1_0_p35.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/HeightCounterPart
diagram BTLx_2_1_0_p36.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/FaceLimitedFront
diagram BTLx_2_1_0_p37.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/FaceLimitedBack
diagram BTLx_2_1_0_p38.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/LeadAngleParallel
diagram BTLx_2_1_0_p39.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadAngle
diagram BTLx_2_1_0_p40.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/LeadInclinationParallel
diagram BTLx_2_1_0_p41.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadInclination
diagram BTLx_2_1_0_p42.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/RafterNailHole
diagram BTLx_2_1_0_p43.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

complexType CamberType
diagram BTLx_2_1_0_p44.png
namespace https://www.design2machine.com
used by
elements PartType/Camber RawPartType/Camber
attributes
Name  Type  Use  Default  Fixed  Annotation
ReferencePlaneID  derived by: xs:unsignedInt  required
StartingPoint  xs:double  required
EndPoint  xs:double  required
CamberPoint  xs:double  required
Camber  xs:double  required
annotation
documentation
Defintion of a camber
source <xs:complexType name="CamberType">
  <xs:annotation>
    <xs:documentation>Defintion of a camber</xs:documentation>
  </xs:annotation>
  <xs:attribute name="ReferencePlaneID" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:unsignedInt">
        <xs:minInclusive value="1"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="StartingPoint" type="xs:double" use="required"/>
  <xs:attribute name="EndPoint" type="xs:double" use="required"/>
  <xs:attribute name="CamberPoint" type="xs:double" use="required"/>
  <xs:attribute name="Camber" type="xs:double" use="required"/>
</xs:complexType>

attribute CamberType/@ReferencePlaneID
type restriction of xs:unsignedInt
properties
use required
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="ReferencePlaneID" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedInt">
      <xs:minInclusive value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute CamberType/@StartingPoint
type xs:double
properties
use required
source <xs:attribute name="StartingPoint" type="xs:double" use="required"/>

attribute CamberType/@EndPoint
type xs:double
properties
use required
source <xs:attribute name="EndPoint" type="xs:double" use="required"/>

attribute CamberType/@CamberPoint
type xs:double
properties
use required
source <xs:attribute name="CamberPoint" type="xs:double" use="required"/>

attribute CamberType/@Camber
type xs:double
properties
use required
source <xs:attribute name="Camber" type="xs:double" use="required"/>

complexType ChamferType
diagram BTLx_2_1_0_p45.png
namespace https://www.design2machine.com
type extension of ProcessingBaseType
properties
base ProcessingBaseType
children UserAttributes StartX StartLimited EndLimited Length Depth ChamferEdge12 ChamferEdge23 ChamferEdge34 ChamferEdge41 ChamferExit
used by
element ProcessingsType/Chamfer
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
annotation
documentation
Definition of a chamfer
source <xs:complexType name="ChamferType">
  <xs:annotation>
    <xs:documentation>Definition of a chamfer</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingBaseType">
      <xs:sequence>
        <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>
        <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>
        <xs:element name="Depth" default="1.0" minOccurs="0">
          <xs:simpleType>
            <xs:restriction base="xs:double">
              <xs:minInclusive value="0.0"/>
              <xs:maxInclusive value="100.0"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:element>
        <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ChamferType/StartX
diagram BTLx_2_1_0_p46.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element ChamferType/StartLimited
diagram BTLx_2_1_0_p47.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/EndLimited
diagram BTLx_2_1_0_p48.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/Length
diagram BTLx_2_1_0_p49.png
namespace https://www.design2machine.com
type LengthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100000.0
source <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

element ChamferType/Depth
diagram BTLx_2_1_0_p50.png
namespace https://www.design2machine.com
type restriction of xs:double
properties
minOcc 0
maxOcc 1
content simple
default 1.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100.0
source <xs:element name="Depth" default="1.0" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="0.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ChamferType/ChamferEdge12
diagram BTLx_2_1_0_p51.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge23
diagram BTLx_2_1_0_p52.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge34
diagram BTLx_2_1_0_p53.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge41
diagram BTLx_2_1_0_p54.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferExit
diagram BTLx_2_1_0_p55.png
namespace https://www.design2machine.com
type ChamferExitType
properties
minOcc 0
maxOcc 1
content simple
default orthogonal
facets
Kind Value Annotation
enumeration orthogonal
enumeration angular
enumeration round
source <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

complexType ColourType
diagram BTLx_2_1_0_p56.png
namespace https://www.design2machine.com
used by
element ComponentType/Colour
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
annotation
documentation
Definition of a colour (red, green, blue, transparency)
source <xs:complexType name="ColourType">
  <xs:annotation>
    <xs:documentation>Definition of a colour (red, green, blue, transparency)</xs:documentation>
  </xs:annotation>
  <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>
</xs:complexType>

attribute ColourType/@Red
type xs:unsignedByte
properties
use required
source <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Green
type xs:unsignedByte
properties
use required
source <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Blue
type xs:unsignedByte
properties
use required
source <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Transparency
type xs:unsignedByte
properties
use required
source <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>

complexType ComponentType
diagram BTLx_2_1_0_p57.png
namespace https://www.design2machine.com
properties
abstract true
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape CenterOfGravity
used by
complexTypes CompositeModuleType PartType RawPartType
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
ProcessingQuality  ProcessingQualityType
Recess  RecessType
ElementNumber  xs:string
Layer  xs:int
ModuleNumber  xs:string
Comment  xs:string
annotation
documentation
Definition of a component
source <xs:complexType name="ComponentType" abstract="true">
  <xs:annotation>
    <xs:documentation>Definition of a component</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Transformations" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>there have to be "Count" Transformations</xs:documentation>
          </xs:annotation>
          <xs:element name="Transformation" type="ReferenceType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Outlines" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="3">
          <xs:element name="Outline">
            <xs:complexType>
              <xs:complexContent>
                <xs:extension base="OutlineType"/>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="UserAttributes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:element name="UserAttribute" type="UserAttributeType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Colour" type="ColourType" minOccurs="0"/>
    <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>
    <xs:element name="GrainDirection" minOccurs="0">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="CoordinateType">
            <xs:attribute name="Align" type="BooleanType" use="required"/>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="ReferenceSide" minOccurs="0">
      <xs:complexType>
        <xs:attribute name="Side" type="RefSideType" use="required"/>
        <xs:attribute name="Align" type="BooleanType" use="required"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>
    <xs:element name="UserReferencePlanes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Processings" minOccurs="0">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="ProcessingsType">
            <xs:sequence minOccurs="0" maxOccurs="unbounded">
              <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>
            </xs:sequence>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="Shape" type="ShapeType" minOccurs="0"/>
    <xs:element name="CenterOfGravity" type="CoordinateType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>relative to the origin of the component</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="Count" default="1">
    <xs:simpleType>
      <xs:restriction base="xs:int">
        <xs:minInclusive value="1"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="Length" type="xs:double" use="required"/>
  <xs:attribute name="Width" type="xs:double" use="required"/>
  <xs:attribute name="Height" type="xs:double" use="required"/>
  <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>
  <xs:attribute name="AssemblyNumber" type="xs:string"/>
  <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>
  <xs:attribute name="Designation" type="xs:string"/>
  <xs:attribute name="Annotation" type="xs:string"/>
  <xs:attribute name="Storey" type="xs:string"/>
  <xs:attribute name="StoreyType" type="StoreyType"/>
  <xs:attribute name="Group" type="xs:string"/>
  <xs:attribute name="Package" type="xs:string"/>
  <xs:attribute name="Material" type="xs:string"/>
  <xs:attribute name="TimberGrade" type="xs:string"/>
  <xs:attribute name="QualityGrade" type="xs:string"/>
  <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>
  <xs:attribute name="StartOffset" type="xs:double" use="optional"/>
  <xs:attribute name="EndOffset" type="xs:double" use="optional"/>
  <xs:attribute name="Weight" type="xs:double"/>
  <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>
  <xs:attribute name="Recess" type="RecessType"/>
  <xs:attribute name="ElementNumber" type="xs:string"/>
  <xs:attribute name="Layer" type="xs:int"/>
  <xs:attribute name="ModuleNumber" type="xs:string"/>
  <xs:attribute name="Comment" type="xs:string"/>
</xs:complexType>

attribute ComponentType/@Count
type restriction of xs:int
properties
default 1
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="Count" default="1">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute ComponentType/@Length
type xs:double
properties
use required
source <xs:attribute name="Length" type="xs:double" use="required"/>

attribute ComponentType/@Width
type xs:double
properties
use required
source <xs:attribute name="Width" type="xs:double" use="required"/>

attribute ComponentType/@Height
type xs:double
properties
use required
source <xs:attribute name="Height" type="xs:double" use="required"/>

attribute ComponentType/@SingleMemberNumber
type xs:unsignedInt
source <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

attribute ComponentType/@AssemblyNumber
type xs:string
source <xs:attribute name="AssemblyNumber" type="xs:string"/>

attribute ComponentType/@OrderNumber
type xs:unsignedInt
source <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

attribute ComponentType/@Designation
type xs:string
source <xs:attribute name="Designation" type="xs:string"/>

attribute ComponentType/@Annotation
type xs:string
source <xs:attribute name="Annotation" type="xs:string"/>

attribute ComponentType/@Storey
type xs:string
source <xs:attribute name="Storey" type="xs:string"/>

attribute ComponentType/@StoreyType
type StoreyType
facets
Kind Value Annotation
enumeration
enumeration ceiling
enumeration roof
enumeration wall
source <xs:attribute name="StoreyType" type="StoreyType"/>

attribute ComponentType/@Group
type xs:string
source <xs:attribute name="Group" type="xs:string"/>

attribute ComponentType/@Package
type xs:string
source <xs:attribute name="Package" type="xs:string"/>

attribute ComponentType/@Material
type xs:string
source <xs:attribute name="Material" type="xs:string"/>

attribute ComponentType/@TimberGrade
type xs:string
source <xs:attribute name="TimberGrade" type="xs:string"/>

attribute ComponentType/@QualityGrade
type xs:string
source <xs:attribute name="QualityGrade" type="xs:string"/>

attribute ComponentType/@PlaningLength
type xs:double
properties
use optional
source <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

attribute ComponentType/@StartOffset
type xs:double
properties
use optional
source <xs:attribute name="StartOffset" type="xs:double" use="optional"/>

attribute ComponentType/@EndOffset
type xs:double
properties
use optional
source <xs:attribute name="EndOffset" type="xs:double" use="optional"/>

attribute ComponentType/@Weight
type xs:double
source <xs:attribute name="Weight" type="xs:double"/>

attribute ComponentType/@ProcessingQuality
type ProcessingQualityType
facets
Kind Value Annotation
enumeration automatic
enumeration visible
enumeration fast
source <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

attribute ComponentType/@Recess
type RecessType
facets
Kind Value Annotation
enumeration automatic
enumeration manual
source <xs:attribute name="Recess" type="RecessType"/>

attribute ComponentType/@ElementNumber
type xs:string
source <xs:attribute name="ElementNumber" type="xs:string"/>

attribute ComponentType/@Layer
type xs:int
source <xs:attribute name="Layer" type="xs:int"/>

attribute ComponentType/@ModuleNumber
type xs:string
source <xs:attribute name="ModuleNumber" type="xs:string"/>

attribute ComponentType/@Comment
type xs:string
source <xs:attribute name="Comment" type="xs:string"/>

element ComponentType/Transformations
diagram BTLx_2_1_0_p58.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Transformation
source <xs:element name="Transformations" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>there have to be "Count" Transformations</xs:documentation>
      </xs:annotation>
      <xs:element name="Transformation" type="ReferenceType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/Transformations/Transformation
diagram BTLx_2_1_0_p59.png
namespace https://www.design2machine.com
type ReferenceType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
GUID  GUIDType  required
source <xs:element name="Transformation" type="ReferenceType"/>

element ComponentType/Outlines
diagram BTLx_2_1_0_p60.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Outline
source <xs:element name="Outlines" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="3">
      <xs:element name="Outline">
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="OutlineType"/>
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/Outlines/Outline
diagram BTLx_2_1_0_p61.png
namespace https://www.design2machine.com
type extension of OutlineType
properties
content complex
children Contour DualContour Apertures
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
ReferencePlaneID  derived by: xs:unsignedInt  required
source <xs:element name="Outline">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="OutlineType"/>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ComponentType/UserAttributes
diagram BTLx_2_1_0_p62.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserAttribute
source <xs:element name="UserAttributes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="UserAttribute" type="UserAttributeType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/UserAttributes/UserAttribute
diagram BTLx_2_1_0_p63.png
namespace https://www.design2machine.com
type UserAttributeType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Value  xs:string  required
Type  UAttributeType    string
source <xs:element name="UserAttribute" type="UserAttributeType"/>

element ComponentType/Colour
diagram BTLx_2_1_0_p64.png
namespace https://www.design2machine.com
type ColourType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
source <xs:element name="Colour" type="ColourType" minOccurs="0"/>

element ComponentType/PartOffset
diagram BTLx_2_1_0_p65.png
namespace https://www.design2machine.com
type PartOffsetType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FlushSide  derived by: xs:byte  required
OffsetSide1  xs:double    0.0
OffsetSide2  xs:double    0.0
OffsetSide3  xs:double    0.0
OffsetSide4  xs:double    0.0
source <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

element ComponentType/GrainDirection
diagram BTLx_2_1_0_p66.png
namespace https://www.design2machine.com
type extension of CoordinateType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
Align  BooleanType  required
source <xs:element name="GrainDirection" minOccurs="0">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CoordinateType">
        <xs:attribute name="Align" type="BooleanType" use="required"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute ComponentType/GrainDirection/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/ReferenceSide
diagram BTLx_2_1_0_p67.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Side  RefSideType  required
Align  BooleanType  required
source <xs:element name="ReferenceSide" minOccurs="0">
  <xs:complexType>
    <xs:attribute name="Side" type="RefSideType" use="required"/>
    <xs:attribute name="Align" type="BooleanType" use="required"/>
  </xs:complexType>
</xs:element>

attribute ComponentType/ReferenceSide/@Side
type RefSideType
properties
use required
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:attribute name="Side" type="RefSideType" use="required"/>

attribute ComponentType/ReferenceSide/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/MaterialClass
diagram BTLx_2_1_0_p68.png
namespace https://www.design2machine.com
type MaterialClassType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Group  MaterialGroupType  required
Specification  xs:string
source <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

element ComponentType/UserReferencePlanes
diagram BTLx_2_1_0_p69.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserReferencePlane
source <xs:element name="UserReferencePlanes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/UserReferencePlanes/UserReferencePlane
diagram BTLx_2_1_0_p70.png
namespace https://www.design2machine.com
type UserReferencePlaneType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  derived by: xs:unsignedInt  required
source <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

element ComponentType/Processings
diagram BTLx_2_1_0_p71.png
namespace https://www.design2machine.com
type extension of ProcessingsType
properties
minOcc 0
maxOcc 1
content complex
children JackRafterCut LongitudinalCut DoubleCut RidgeValleyCut SawCut Slot BirdsMouth HipValleyRafterNotch Lap LogHouseHalfLap FrenchRidgeLap Chamfer LogHouseJoint LogHouseFront Pocket Drilling Tenon Mortise House HouseMortise DovetailTenon DovetailMortise JapaneseTenon JapaneseMortise Marking Text SimpleScarf ScarfJoint StepJoint StepJointNotch ProfileFront ProfileCambered RoundArch Planing ProfileHead Sphere TriangleCut TyroleanDovetail Dovetail FreeContour SawContour MillContour NailContour CrampContour ScrewContour PenContour GlueArea PlaningArea PlasterArea InsulationArea LockoutArea FreeSurface Variant ProcessingGroup
source <xs:element name="Processings" minOccurs="0">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ProcessingsType">
        <xs:sequence minOccurs="0" maxOccurs="unbounded">
          <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ComponentType/Processings/ProcessingGroup
diagram BTLx_2_1_0_p72.png
namespace https://www.design2machine.com
type ProcessingGroupType
properties
content complex
children UserAttributes Processings
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
source <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

element ComponentType/Shape
diagram BTLx_2_1_0_p73.png
namespace https://www.design2machine.com
type ShapeType
properties
minOcc 0
maxOcc 1
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
elements CADFace CollidableShape HAnimHumanoid LinePickSensor PointPickSensor PrimitivePickSensor TransformSensor VolumePickSensor
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
source <xs:element name="Shape" type="ShapeType" minOccurs="0"/>

element ComponentType/CenterOfGravity
diagram BTLx_2_1_0_p74.png
namespace https://www.design2machine.com
type CoordinateType
properties
minOcc 0
maxOcc 1
c
